Disassembly And Assembly: Notes

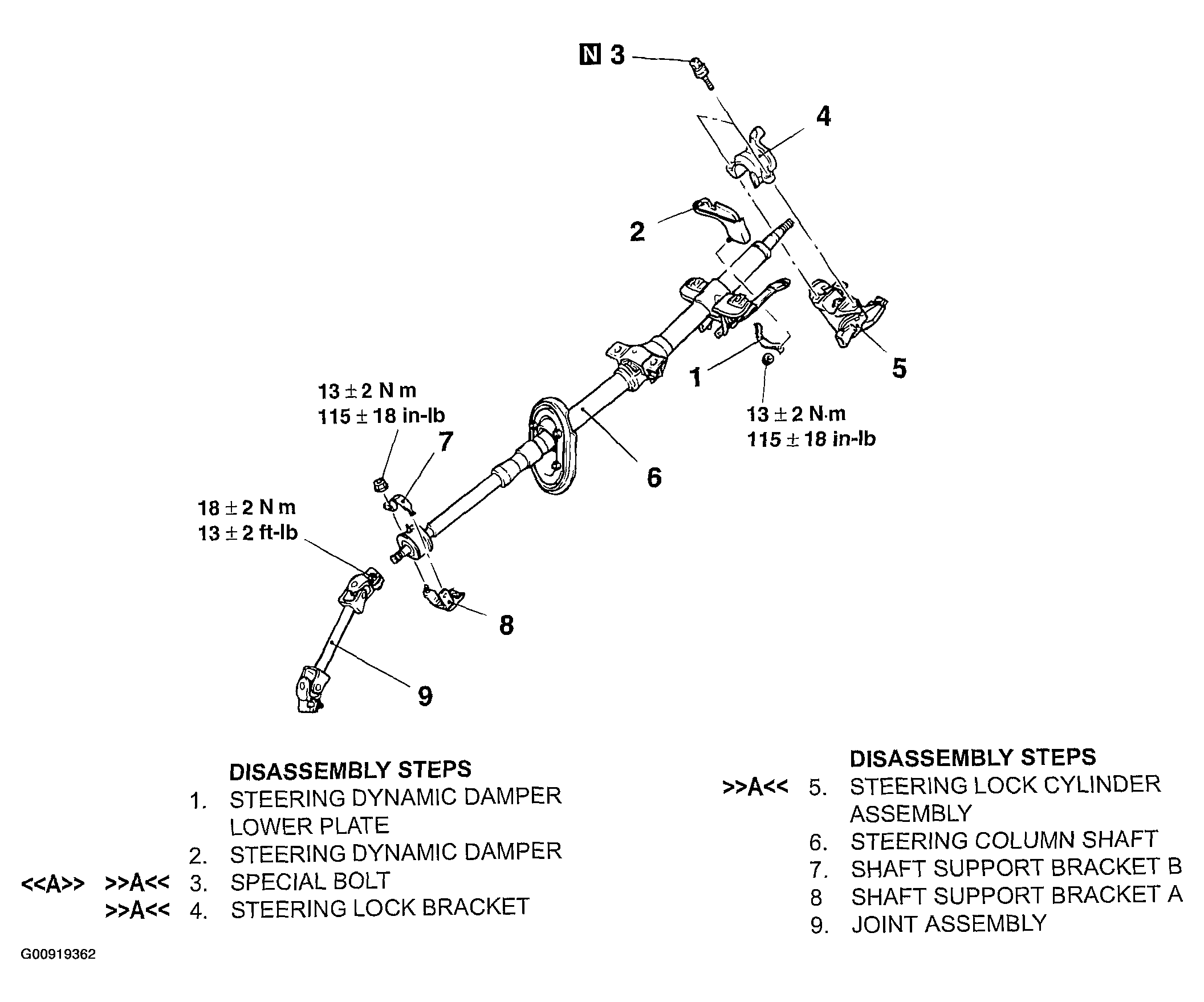

Fig 1: Disassembling Steering Shaft

G00919362

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
