Removal And Installation: Notes

CAUTION: To prevent bushings from breakage, the parts indicated by * should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

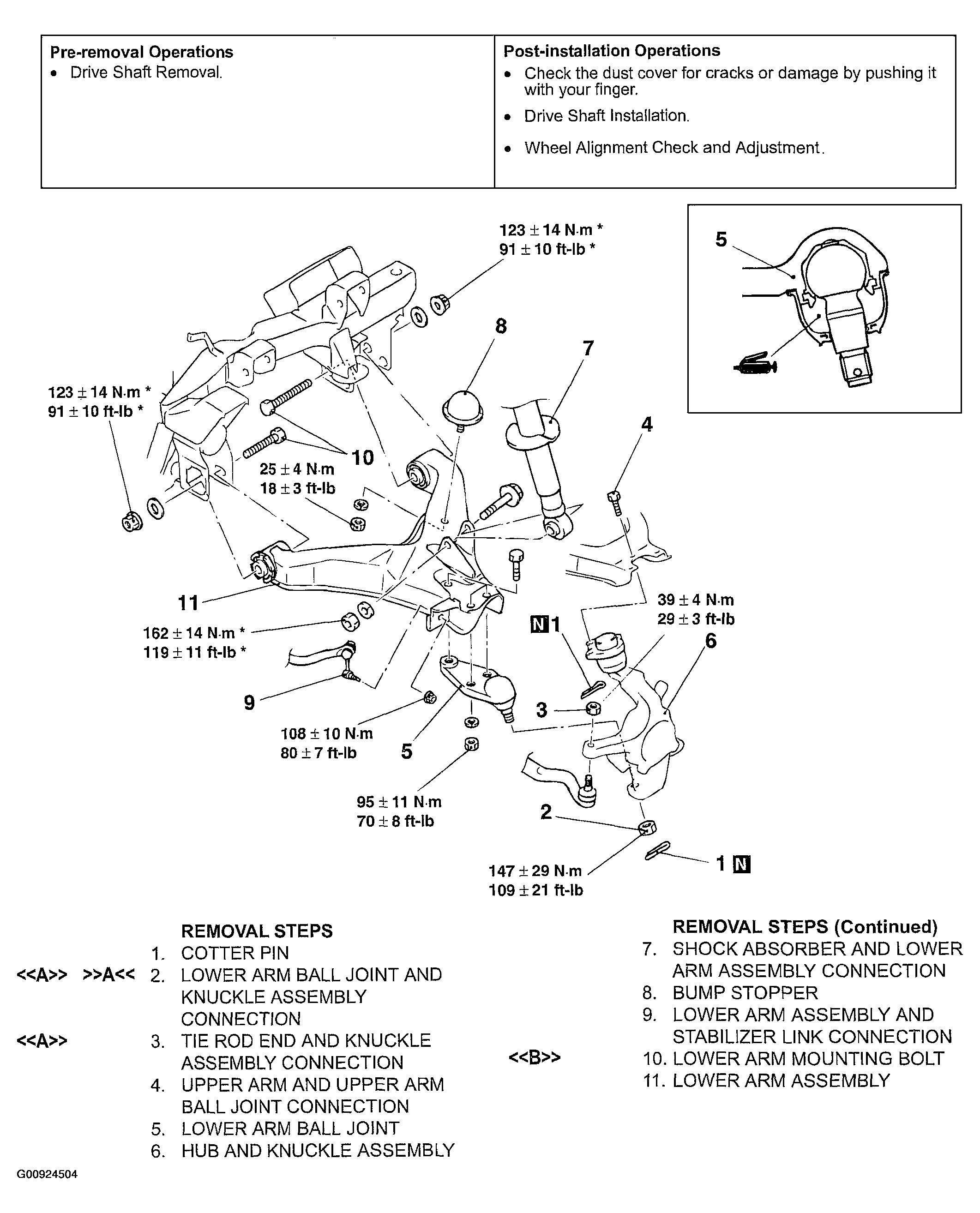

Fig 1: Removing & Installing Lower Arm
G00924504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
