Home
›
Mitsubishi
›
2004
›
Montero XLS
›
Repair and Diagnosis
›
Suspension
›
Front Suspension
›
Shock Absorber Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

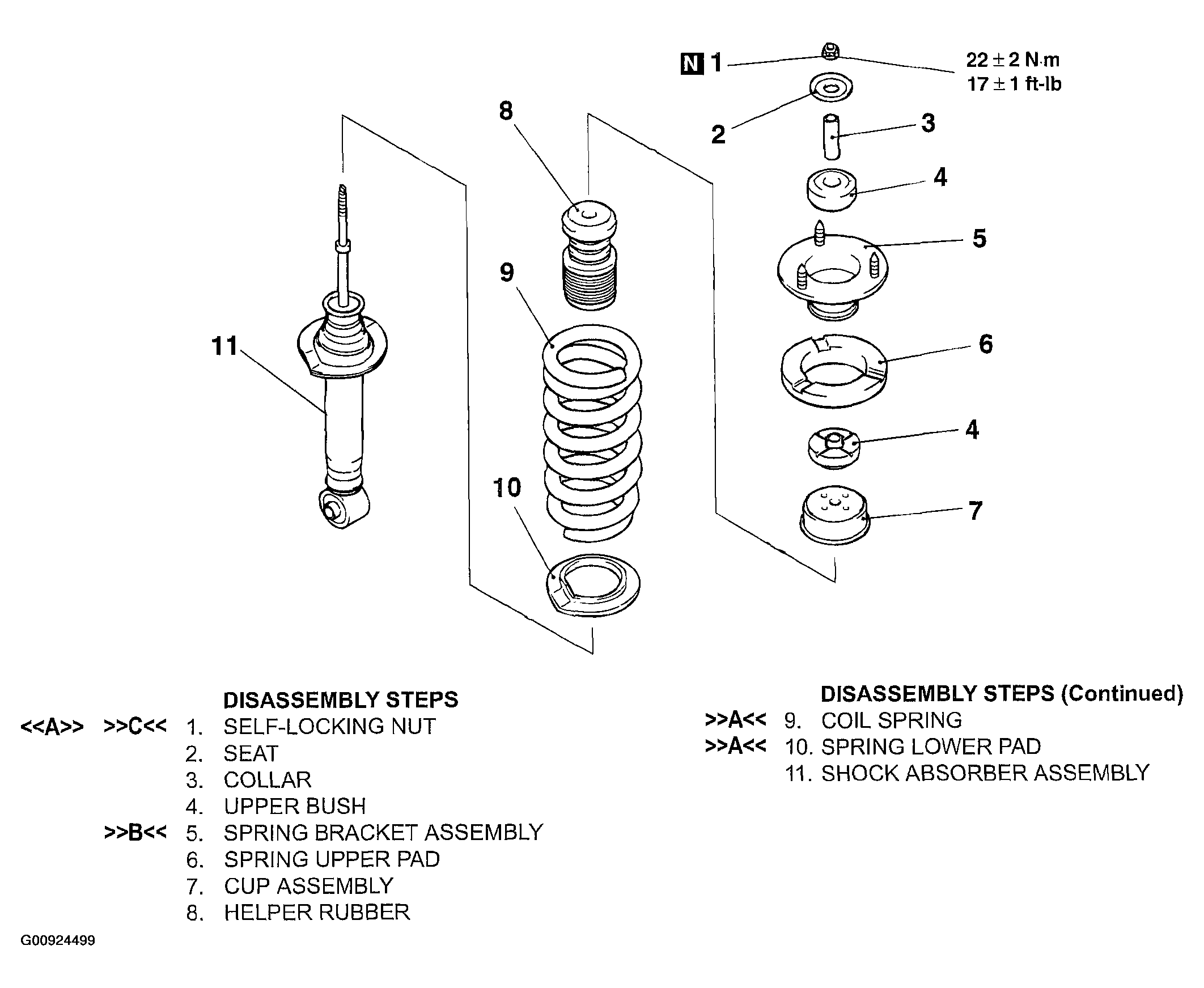

Fig 1: Shock Absorber Disassembly And Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
