Transmission Fluid Temperature Sensor Check

Remove the transmission fluid temperature sensor.
Measure the resistance between terminals No. 1 and No. 2 of the transmission fluid temperature sensor connector.
1. Standard value:

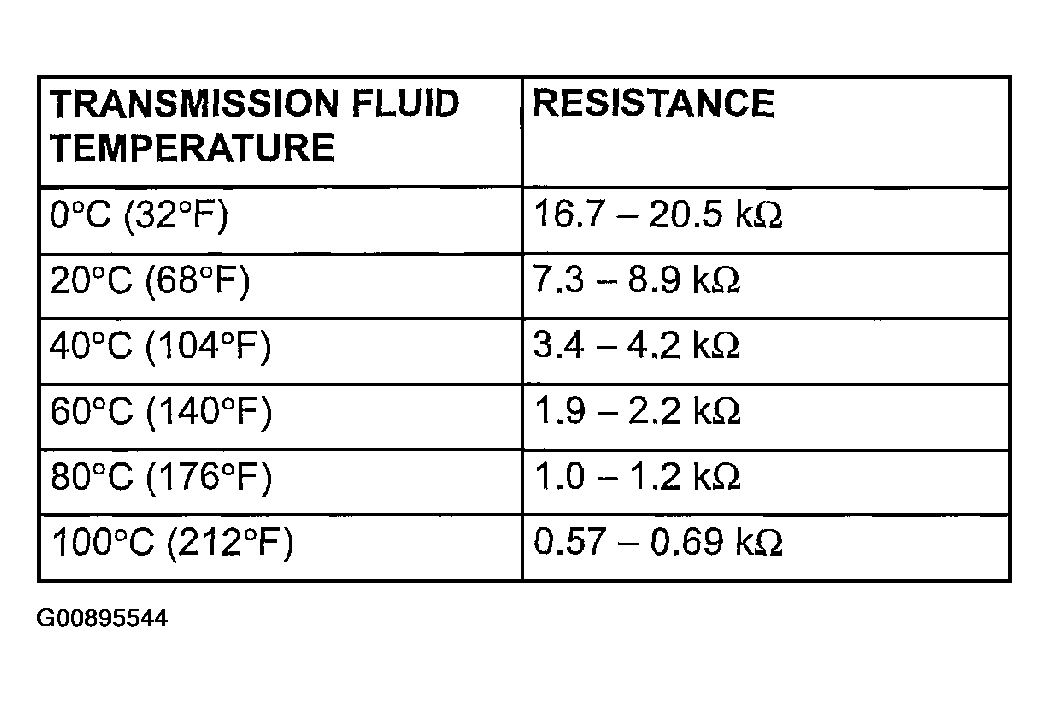

Fig 1: Transmission Fluid Temperature Sensor Resistance Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Measuring Resistance Between Terminals No. 1 And No. 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the transmission fluid temperature sensor resistance is outside the specified range and the "A/T TEMP" indicator light is illuminating, replace the transmission fluid temperature sensor.
NOTE: The "A/T TEMP" indicator light on the combination meter illuminating when the temperature reaches approximately 125°C(257°F) or greater, and then stops illuminating when the temperature drops below approximately 115°C(238°F).
