Automatic Transmission Control Component Layout

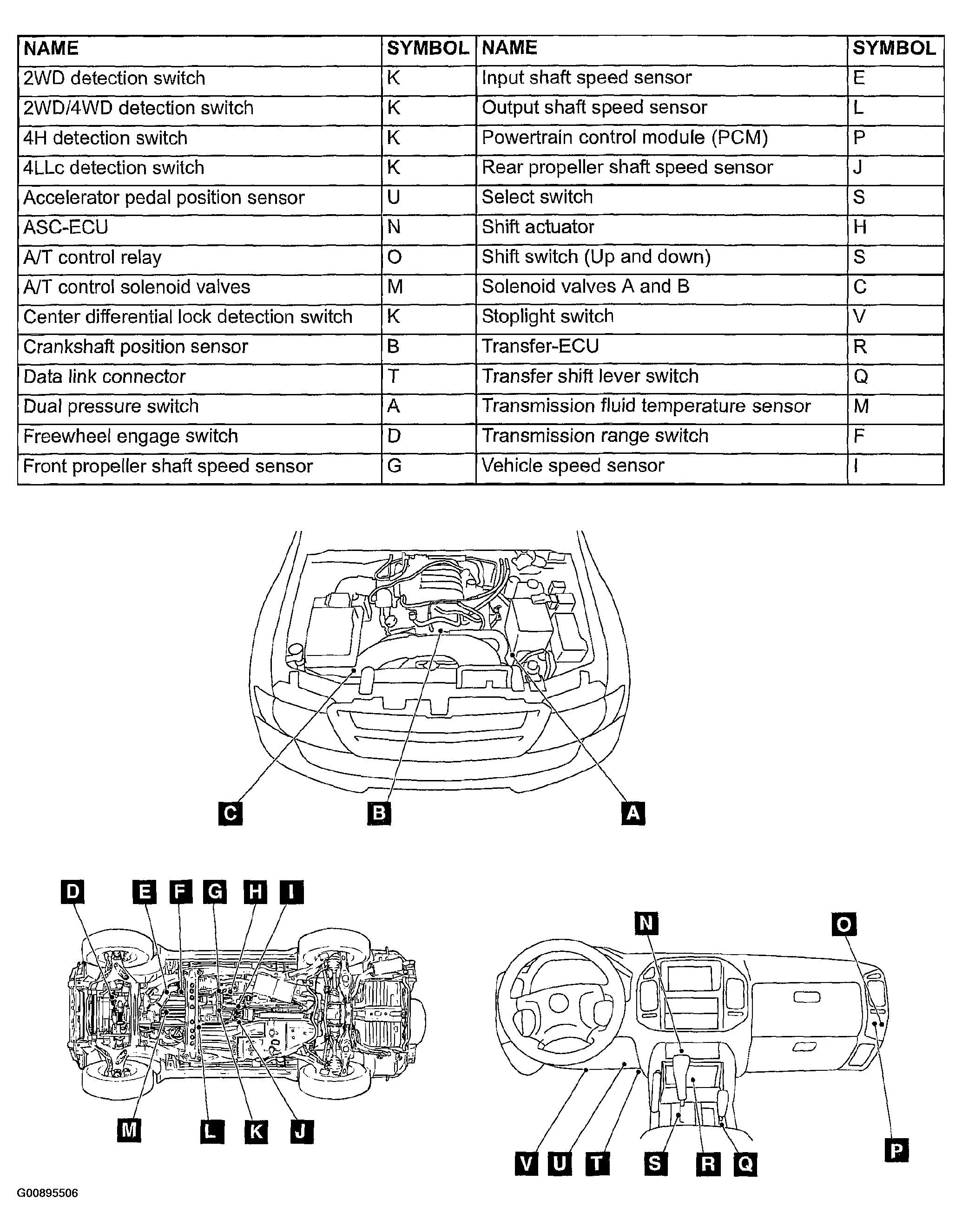

Fig 1: Automatic Transmission Control Component Layout (1 Of 4)
G00895506Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

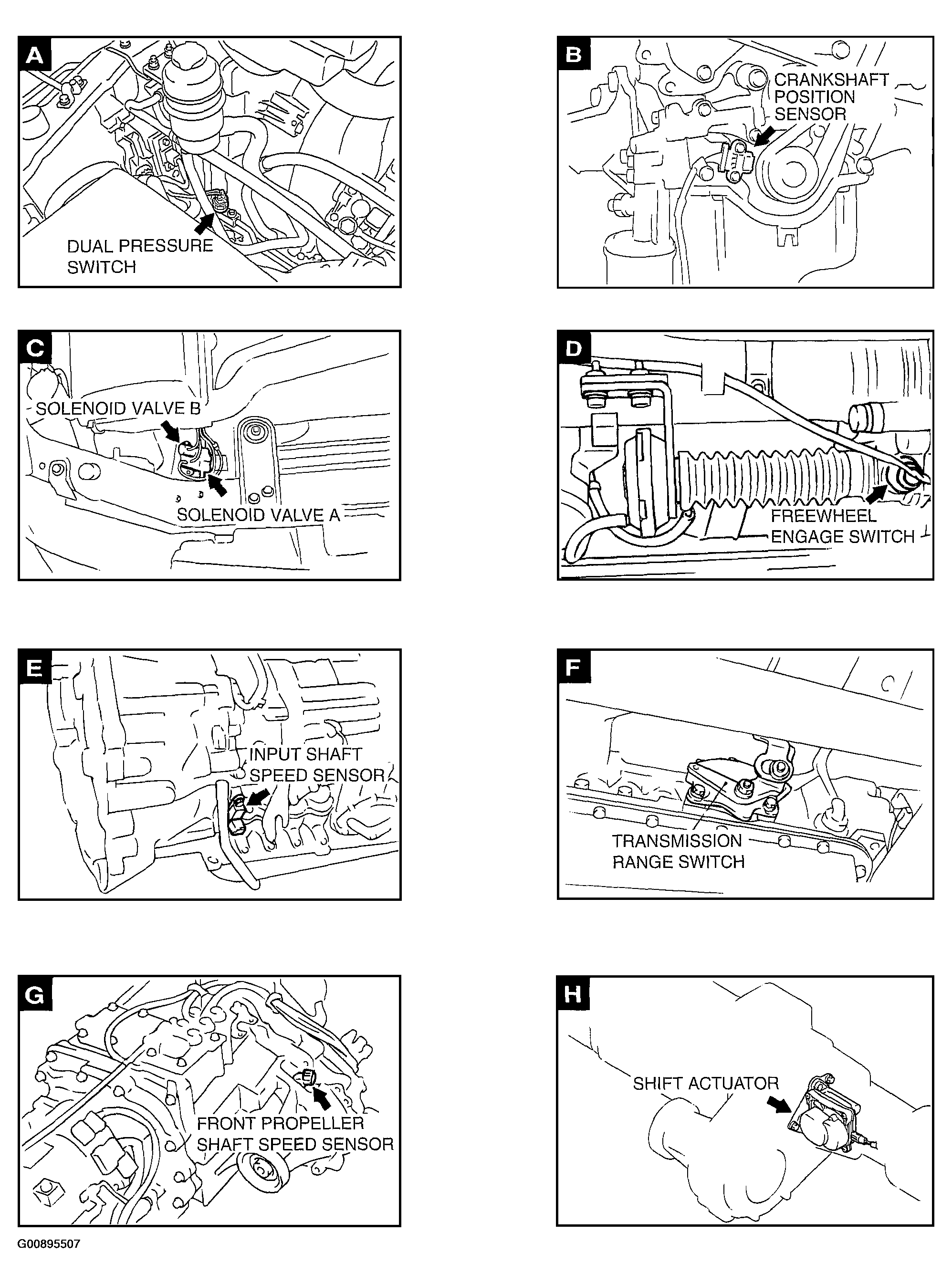

Fig 2: Automatic Transmission Control Component Layout (2 Of 4)
G00895507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

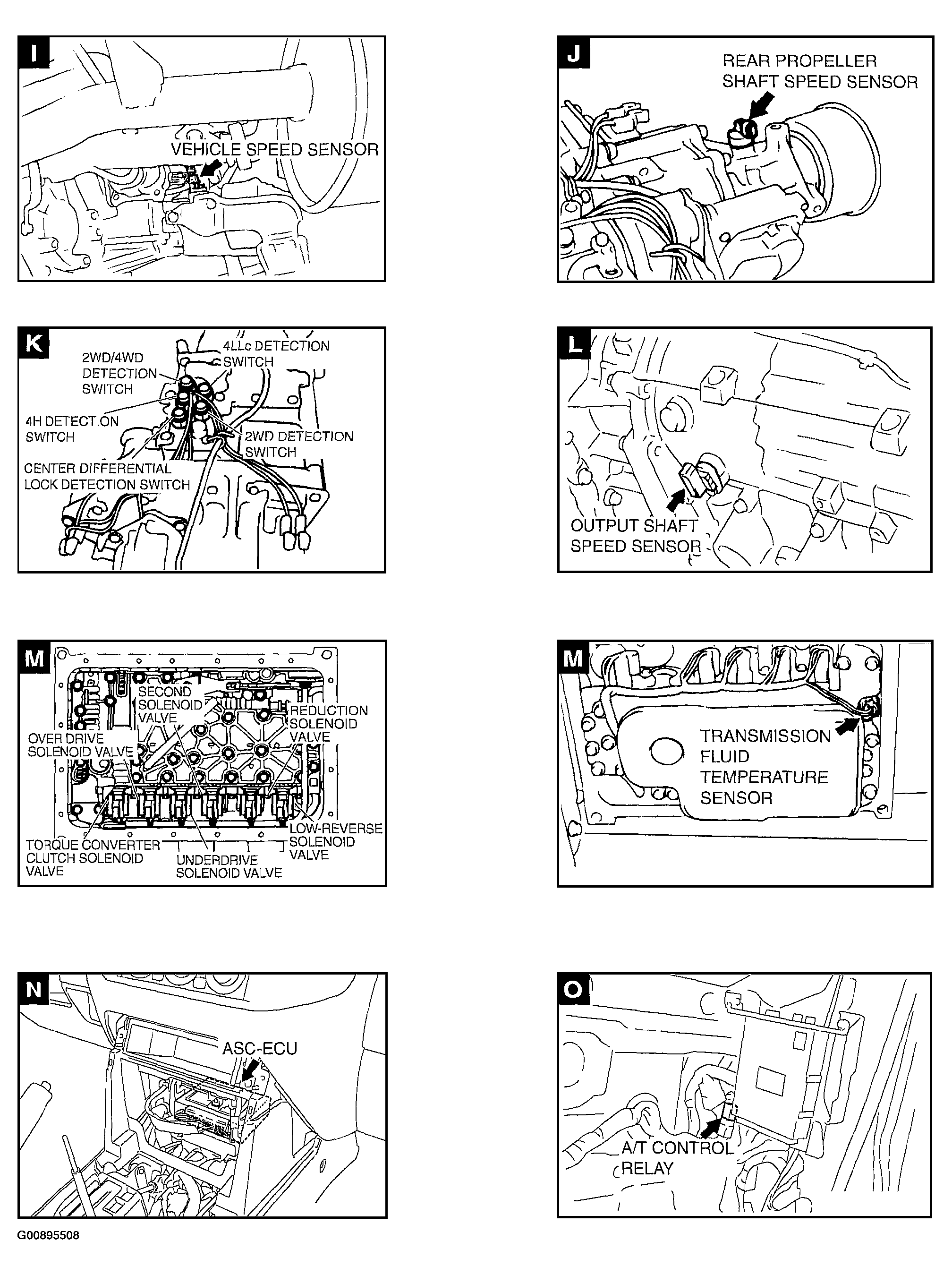

Fig 3: Automatic Transmission Control Component Layout (3 Of 4)
G00895508Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

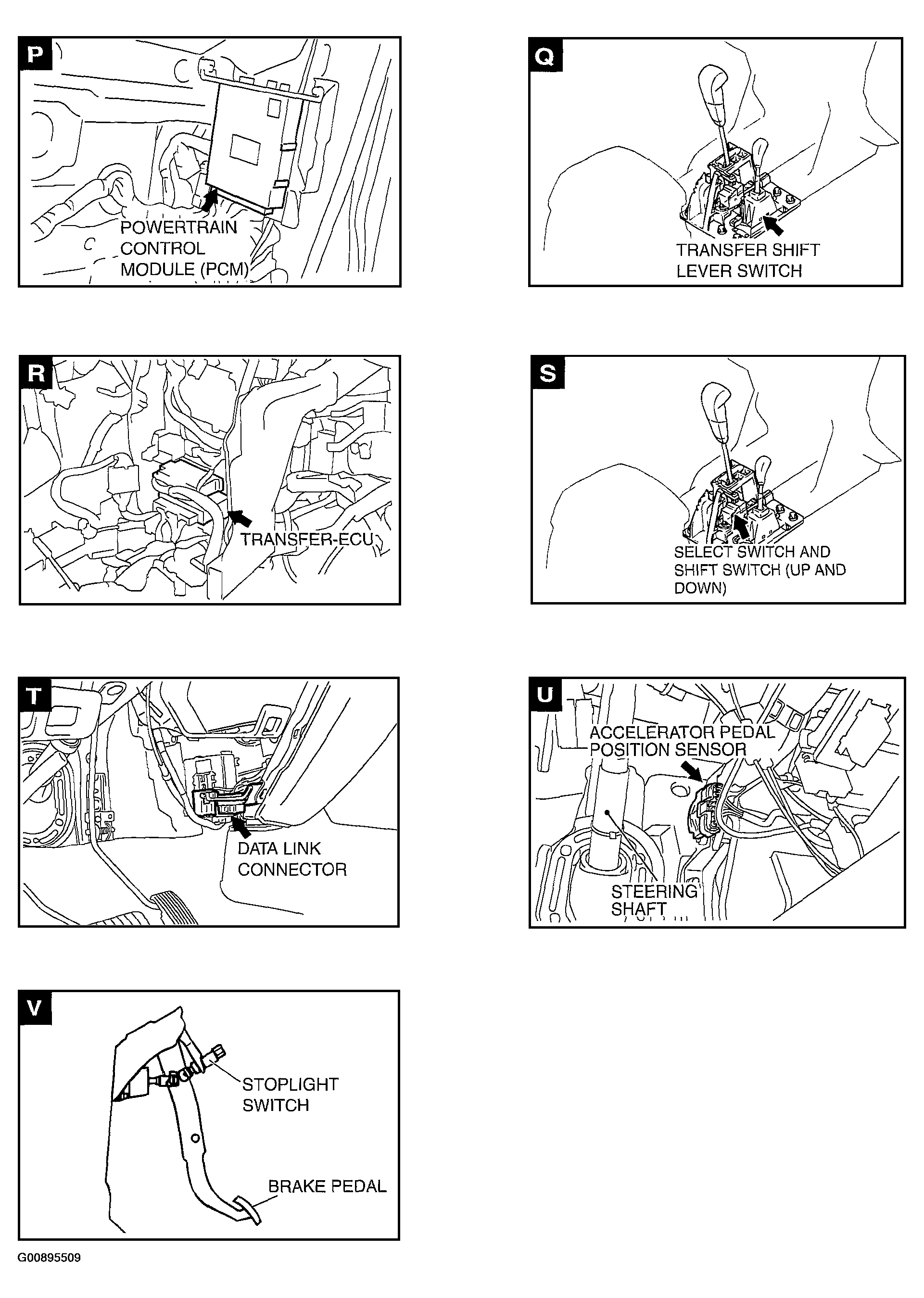

Fig 4: Automatic Transmission Control Component Layout (4 Of 4)
G00895509Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
