Center Differential Lock Detection Switch Check

Check for continuity between the terminal of the brown connector located on the transfer case.

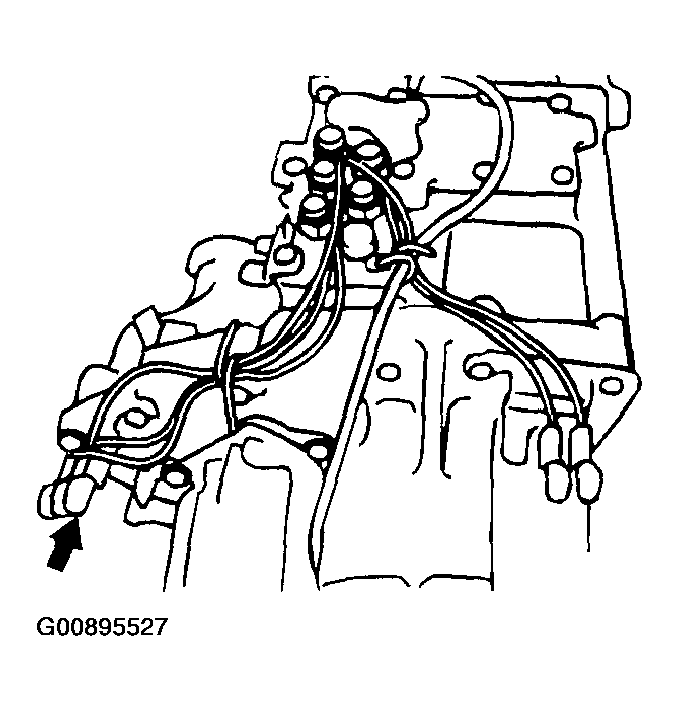

Fig 1: Locating Center Differential Lock Detection Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Checking Center Differential Lock Detection Switch Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
