Position Indicator Light Check

Remove the indicator panel (Refer to FLOOR CONSOLE ASSEMBLY ).
Check that there is continuity between the following terminals:

Fig 1: Position Indicator Light Continuity Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

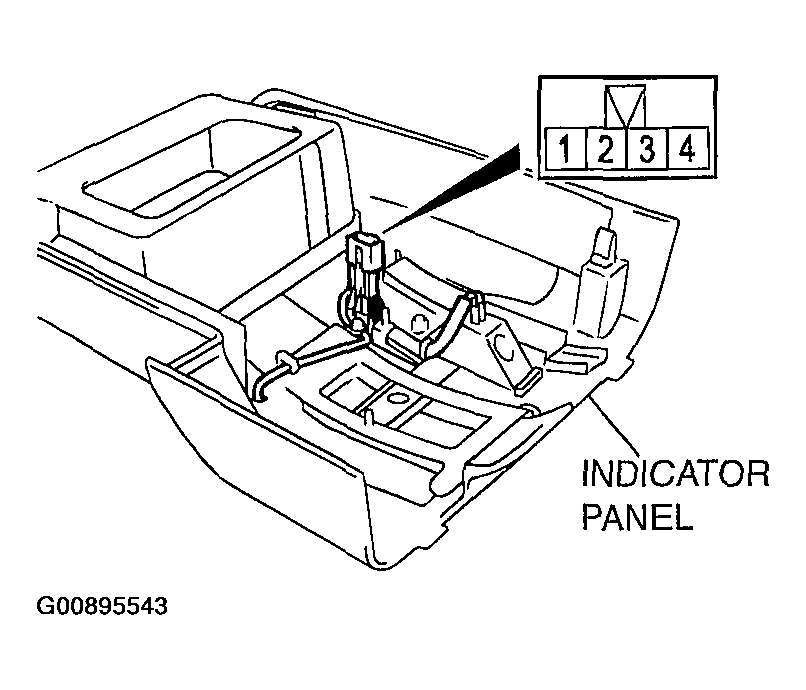

Fig 2: Identifying Position Indicator Light Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the continuity is incorrect, replace the position indicator light unit assembly.
