Transfer Oil Replacement

Remove the filler plug.
Remove the drain plug and discharge the oil.
Tighten the drain plug to the specified torque.
1. Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
Fill in oil to the bottom of the filler plug hole.
1. Specified oil: Gear oil API classification GL-4 SAE 75W - 85W or 75W - 90
2. Quantity: 2.8 dm³ (3.0 quarts)

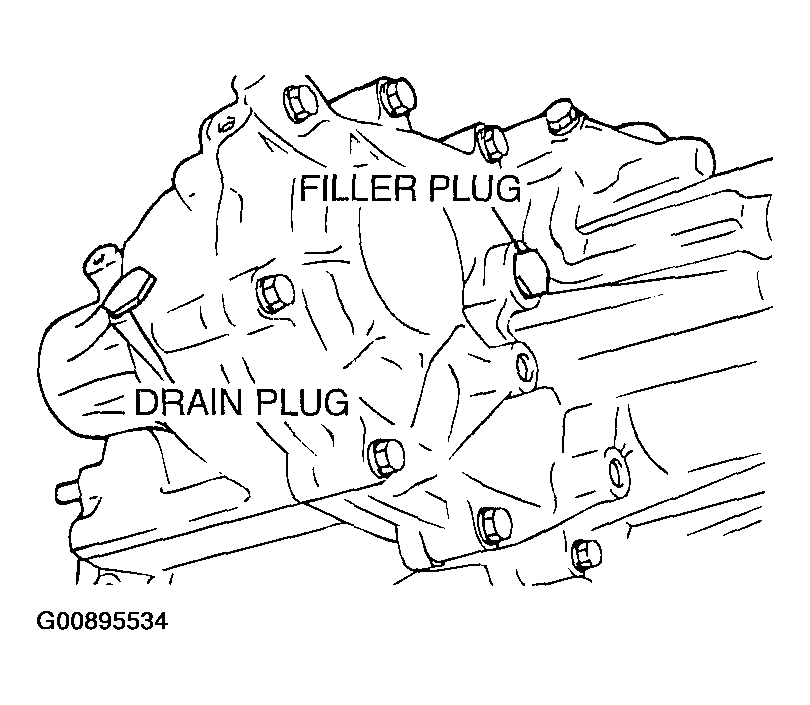

  Fig 1: Replacing Transfer Oil
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Tighten the filler plug to the specified torque.
  1. Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
