Symptom Procedures < Automatic Transmission >
›
Inspection Procedure Using An Oscilloscope
›
Notes
Inspection Procedure Using An Oscilloscope: Notes

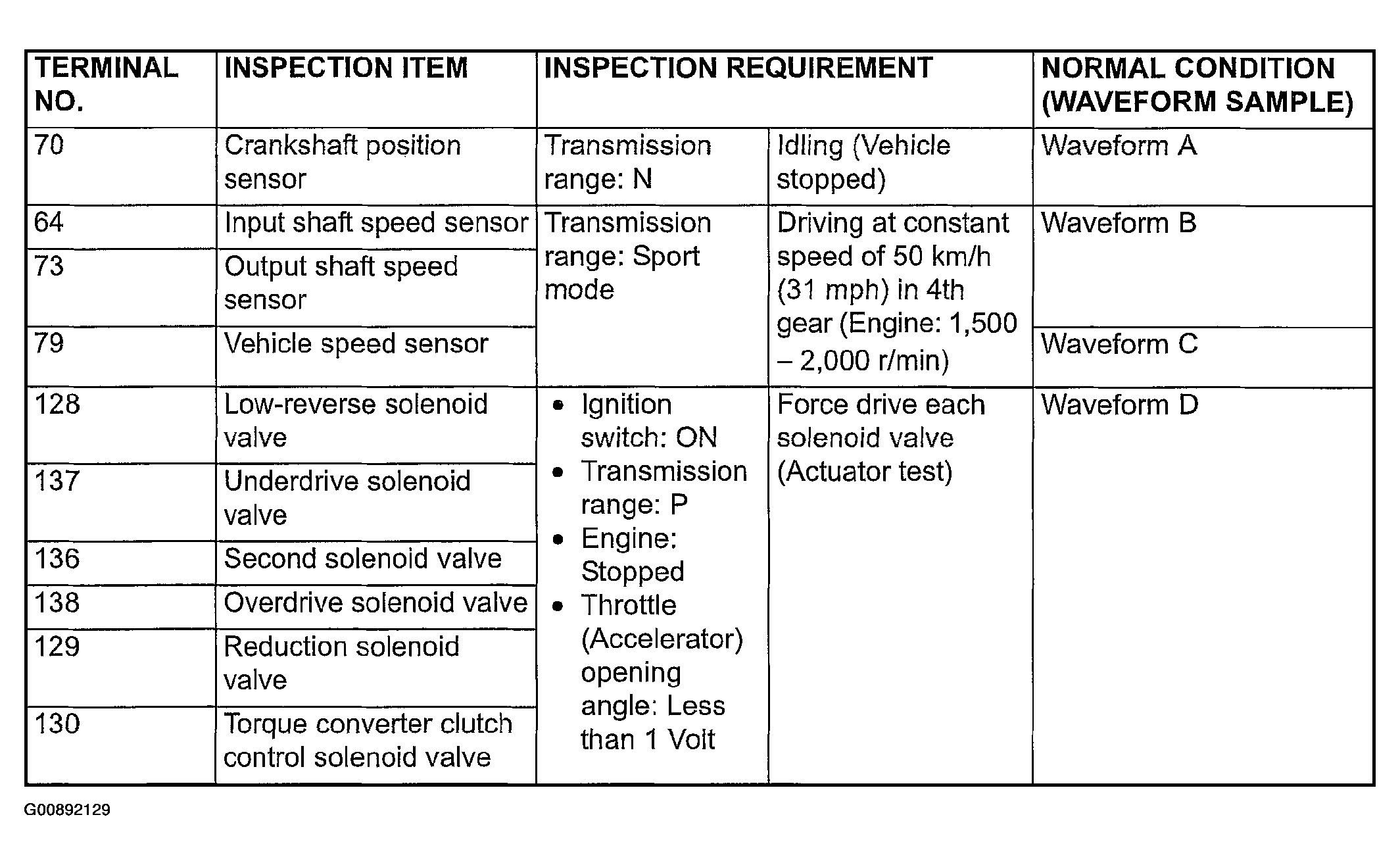

Fig 1: Oscilloscope Inspection Procedure Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
