Shift Switch Assembly Continuity Check

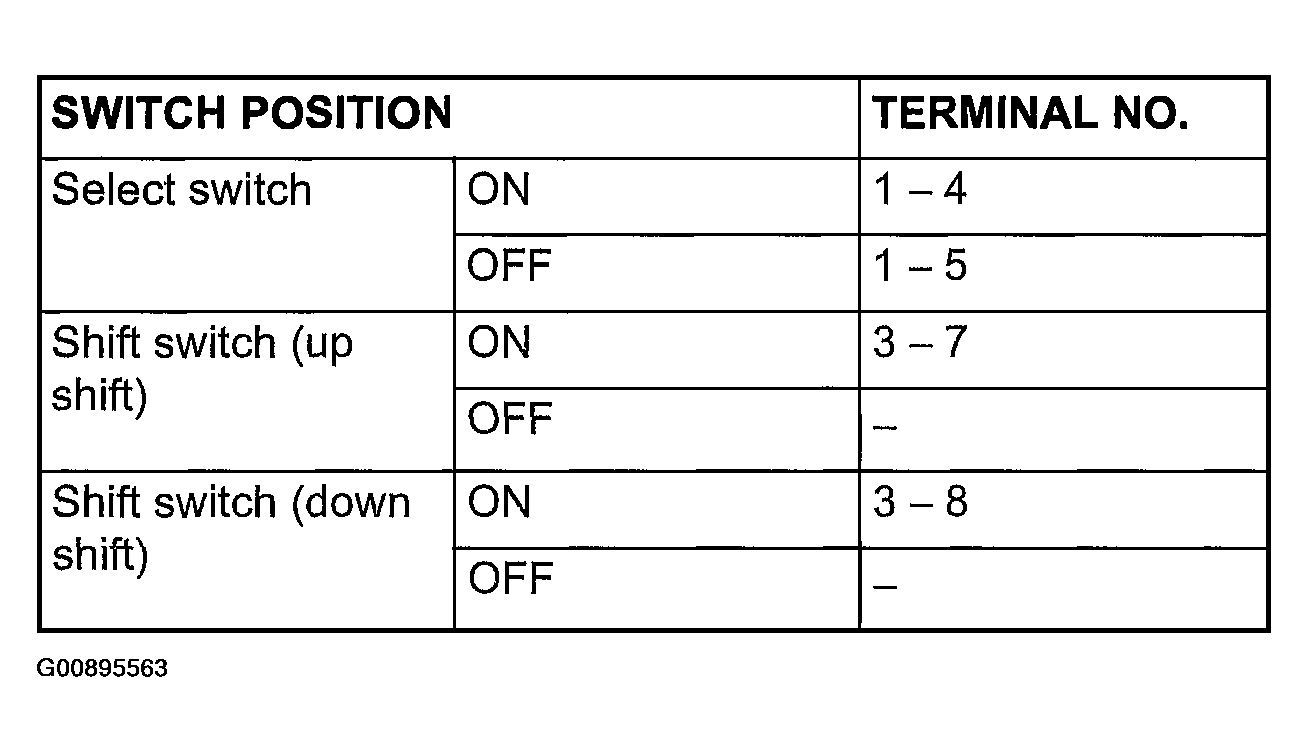

Fig 1: Shift Switch Assembly Continuity Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

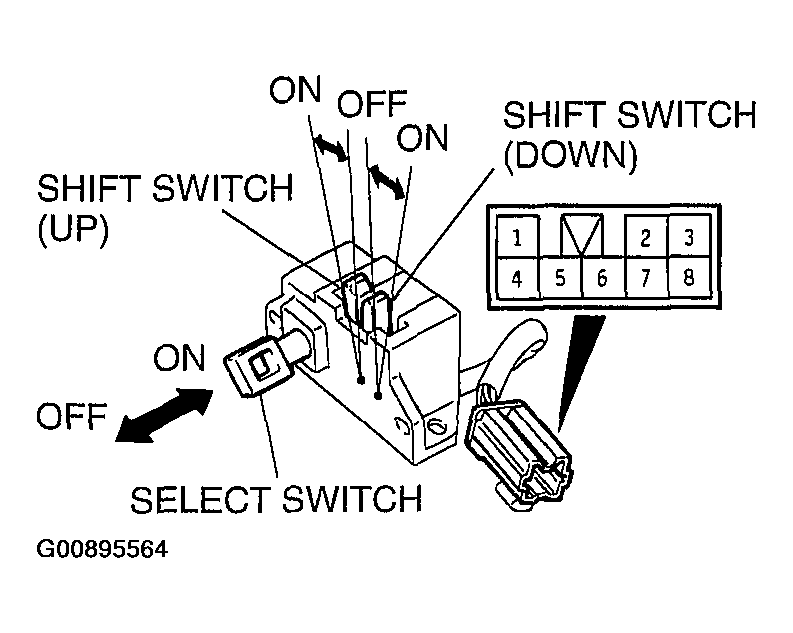

Fig 2: Inspecting Shift Switch Assembly Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
