Removal And Installation: Notes

WARNING: When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

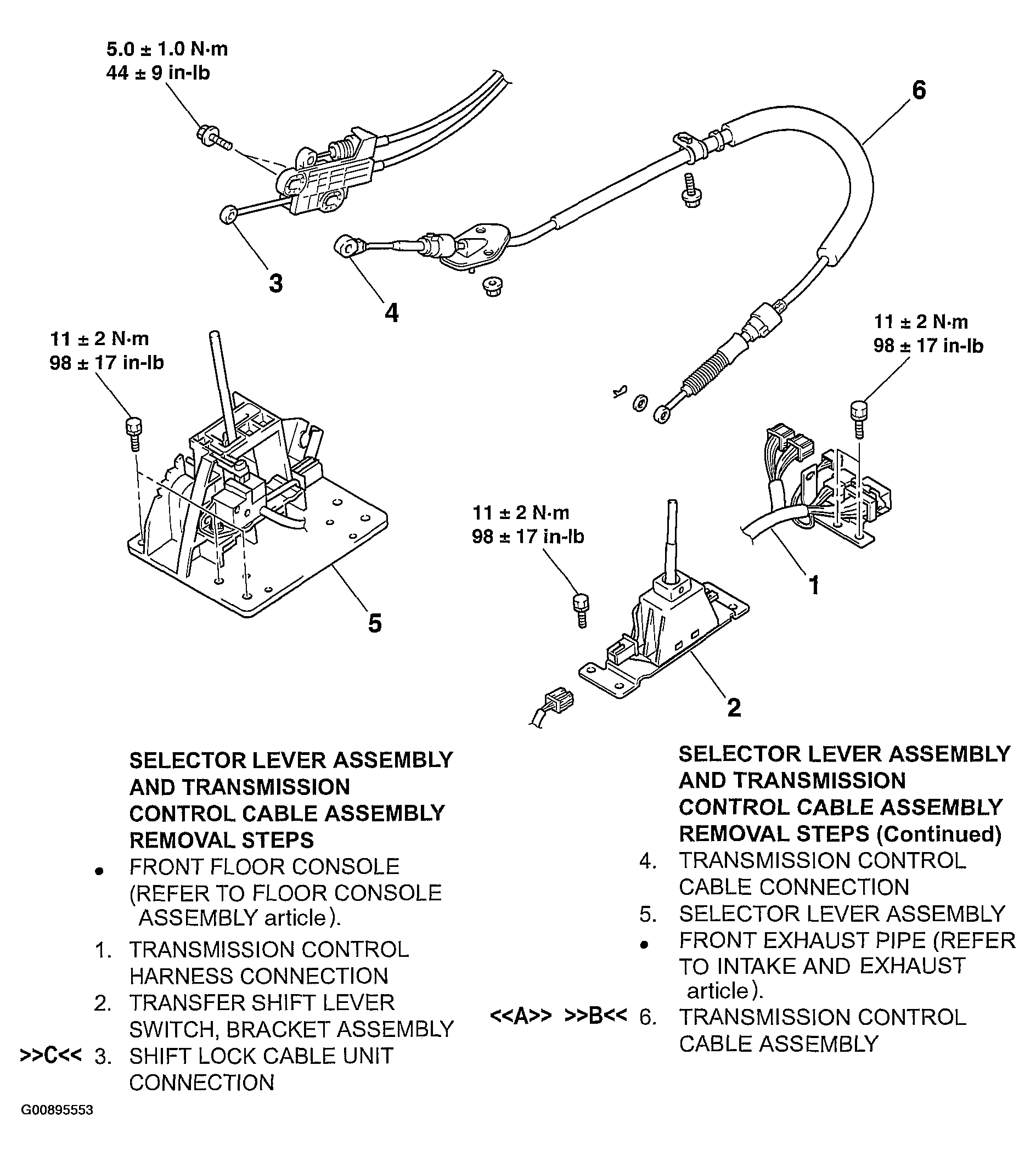

Fig 1: Removing And Installing Transmission Control Cable And Shift Lock Cable Unit (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

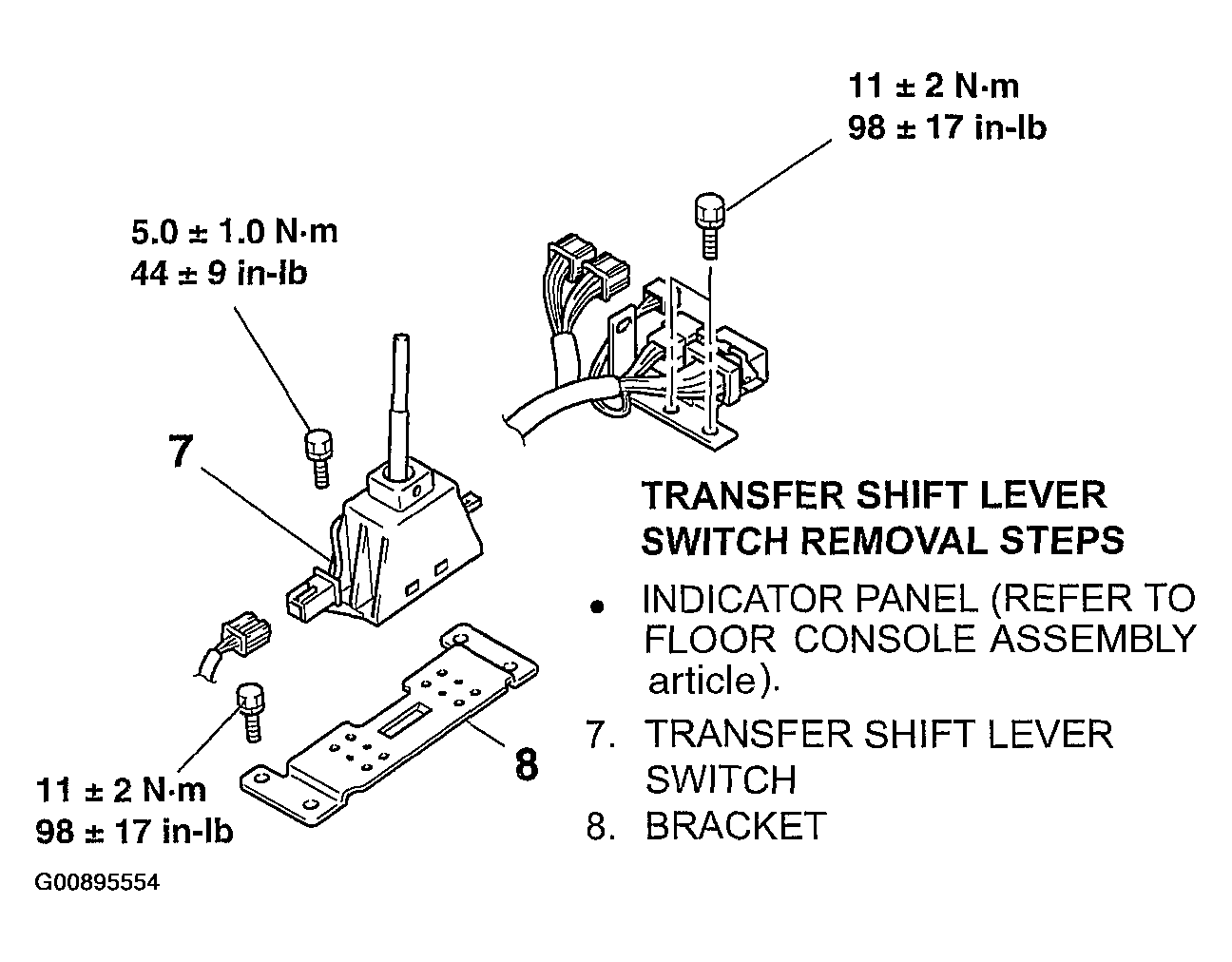

Fig 2: Removing Transmission Control Cable And Shift Lock Cable Unit (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
