Disassembly And Assembly: Notes

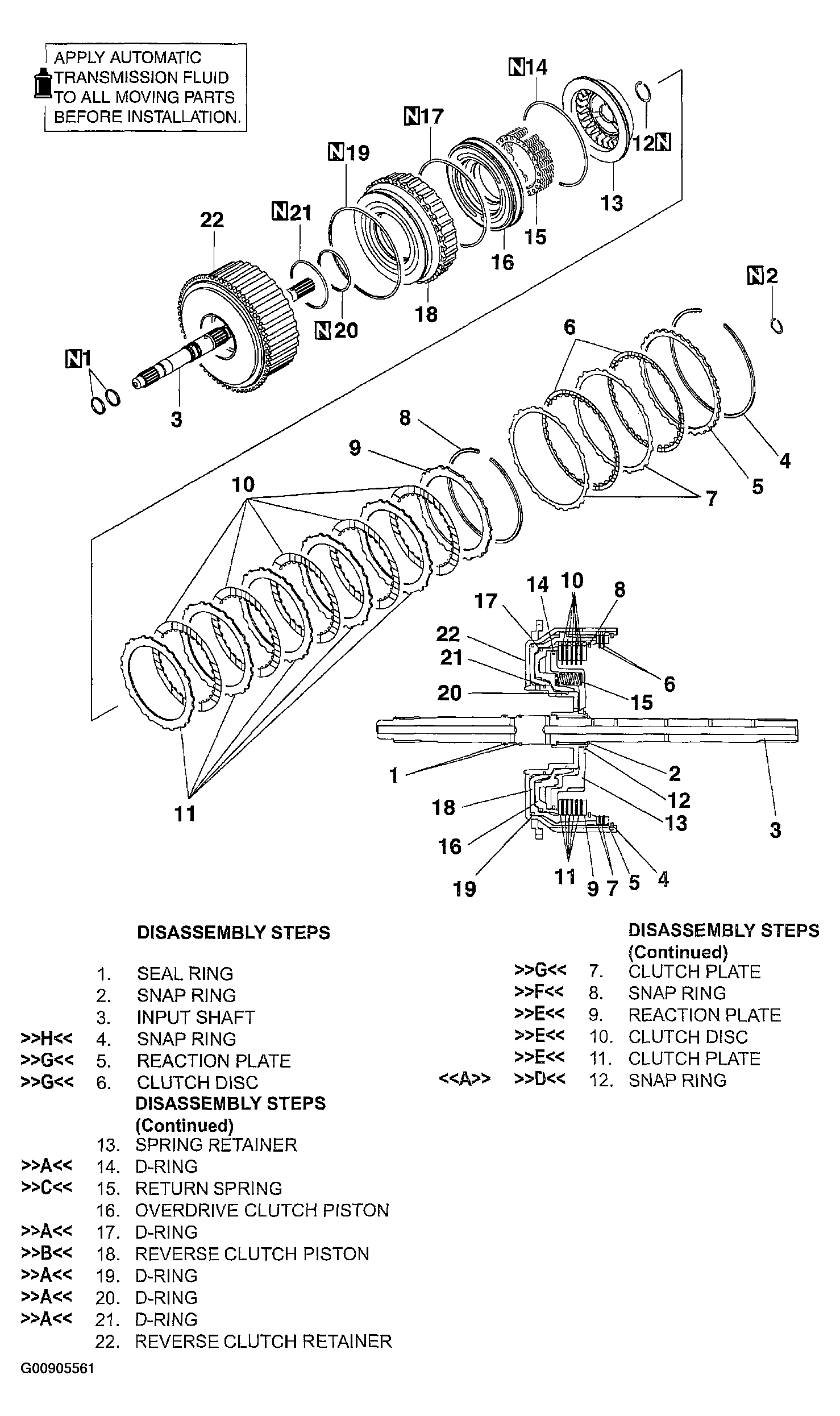

Fig 1: Exploded View Of Reverse And Overdrive Clutches

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991629: Spring Compressor
• MB991789: Spring Compressor
• MD998924: Spring Compressor Retainer
• MD999590: Spring Compressor
