Home › Mitsubishi › 2004 › Montero XLS › Repair and Diagnosis › Transmission › Automatic Trans › Overhaul › Second Brake › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

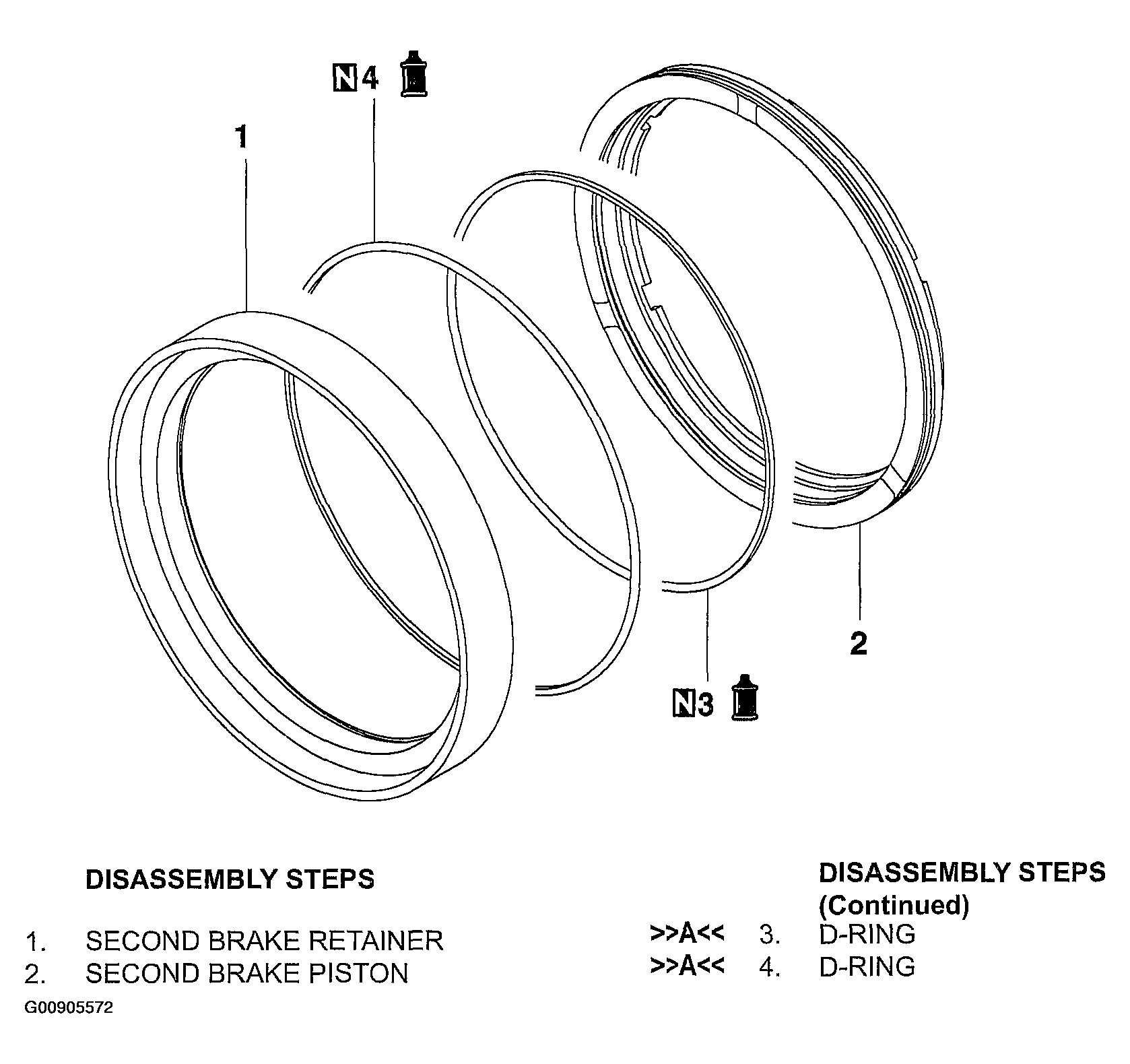

Fig 1: Identifying Second Brake Components

G00905572

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
