Disassembly And Assembly: Notes

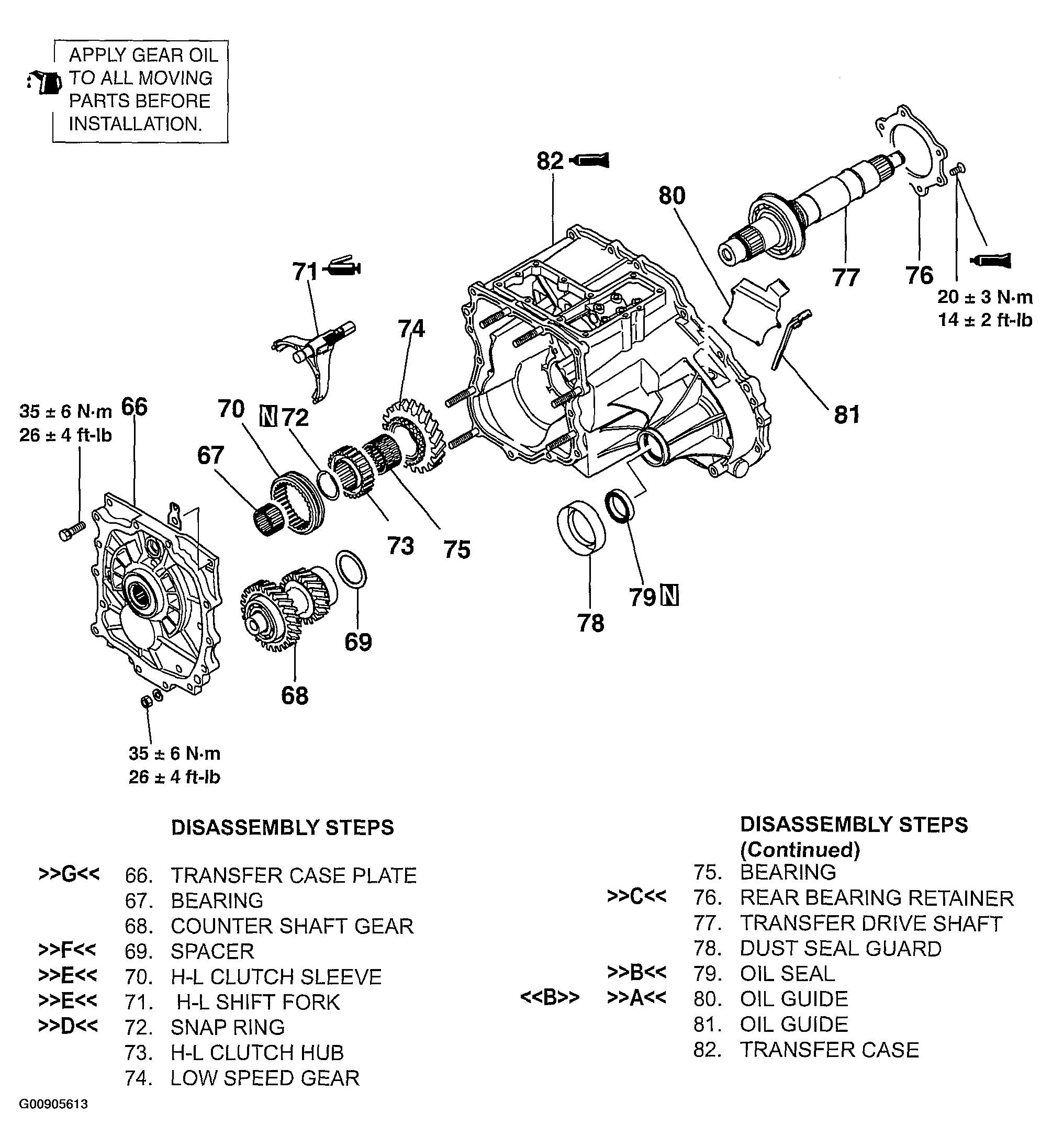

Fig 1: Exploded View Of Transfer (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

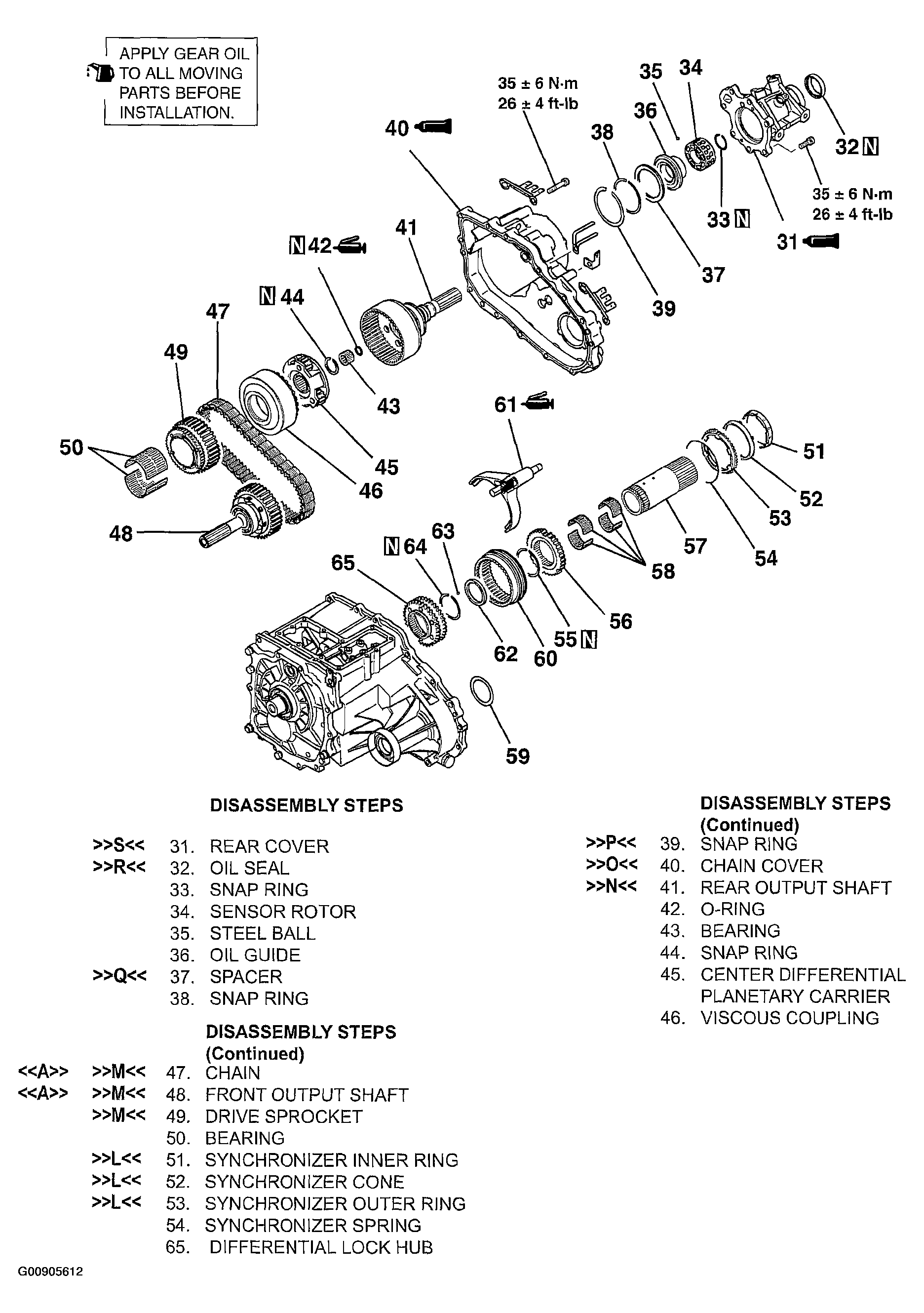

Fig 2: Exploded View Of Transfer (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Exploded View Of Transfer (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990932: Installer Adapter
• MB990936: Installer Adapter
• MB990938: Handle
