Disassembly And Assembly: Notes

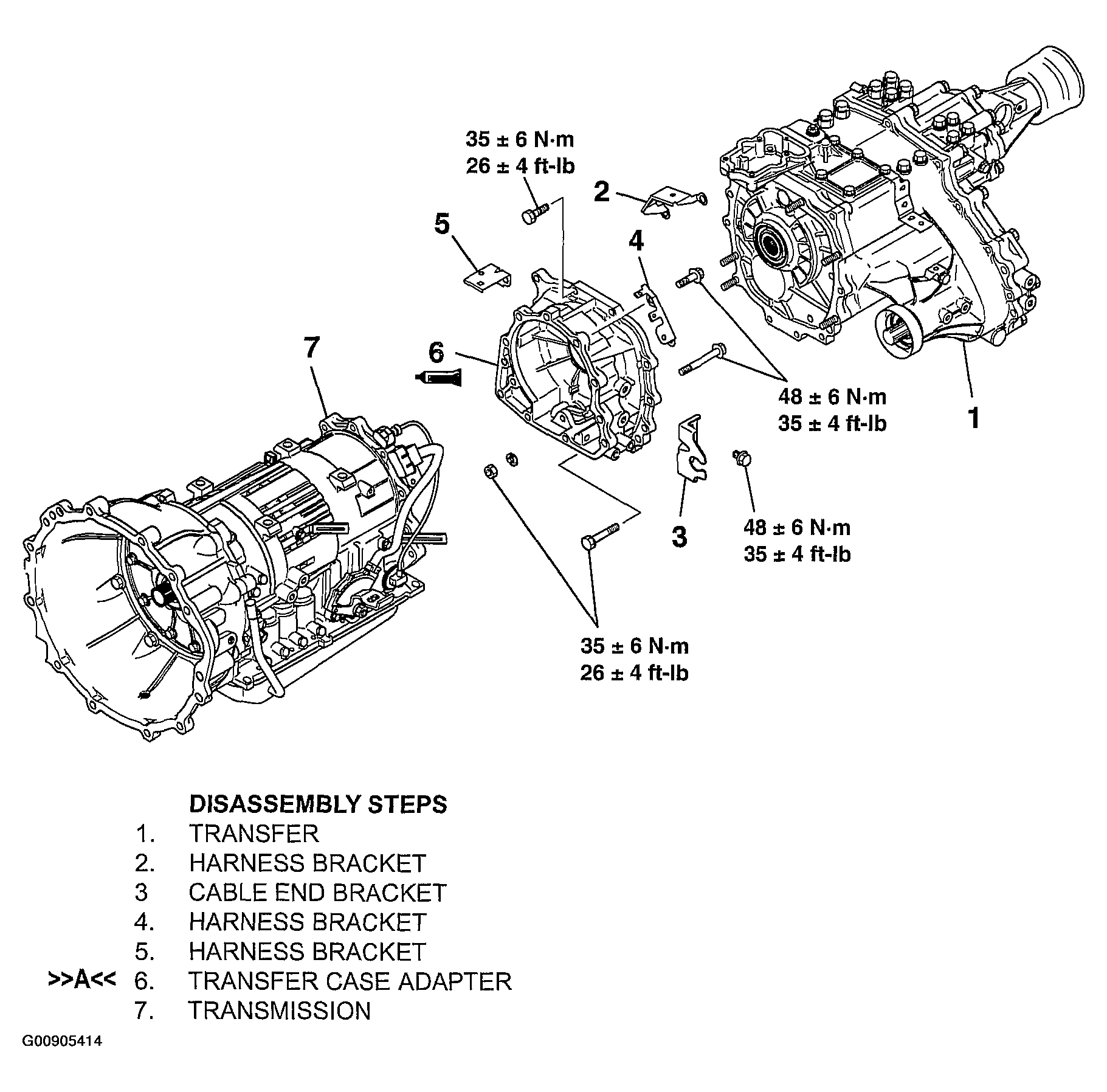

Fig 1: Identifying Transmission And Transfer Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
