DTC 15: Auto-cruise Control Switch System: Notes

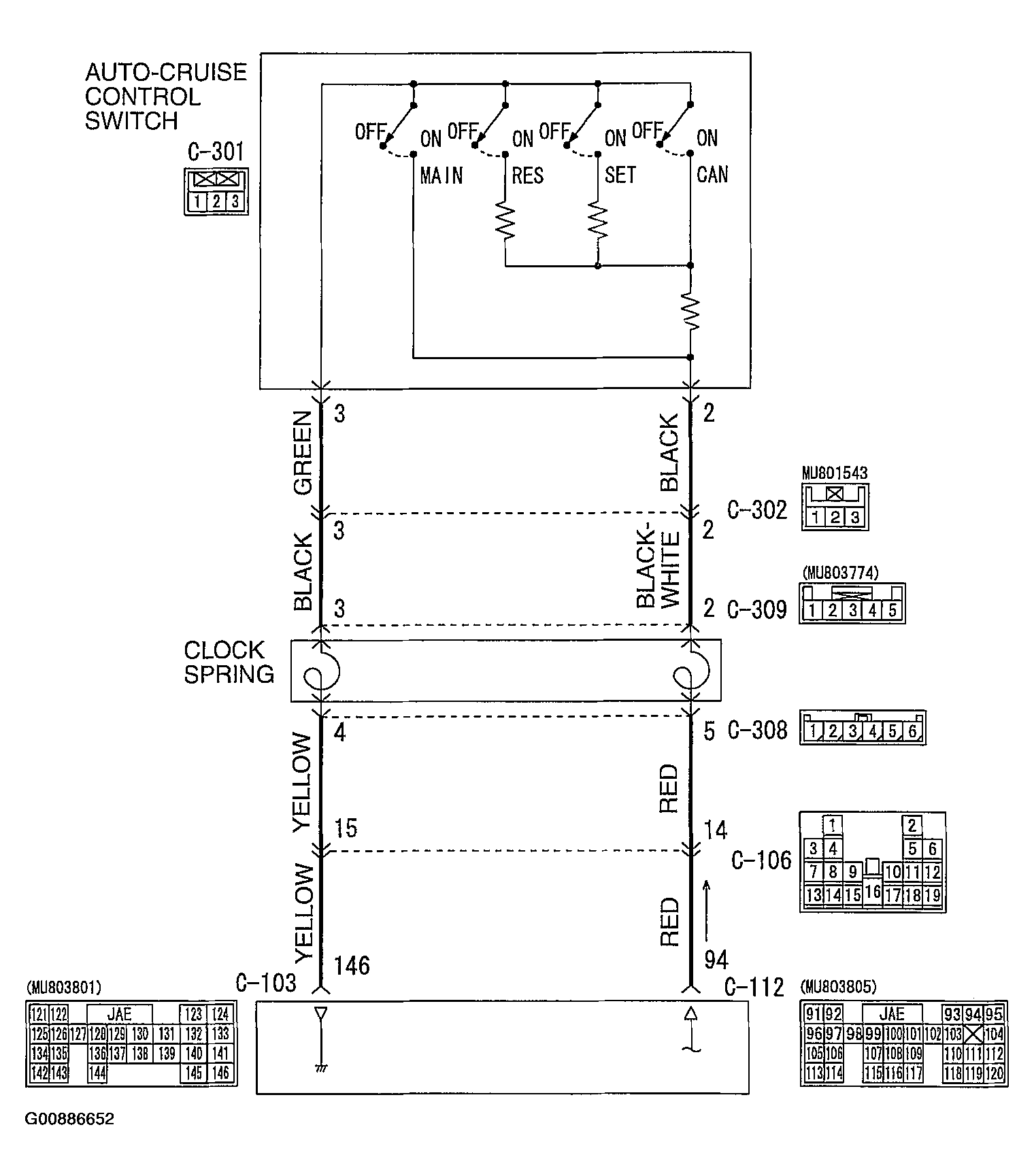

Fig 1: Auto-Cruise Control Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

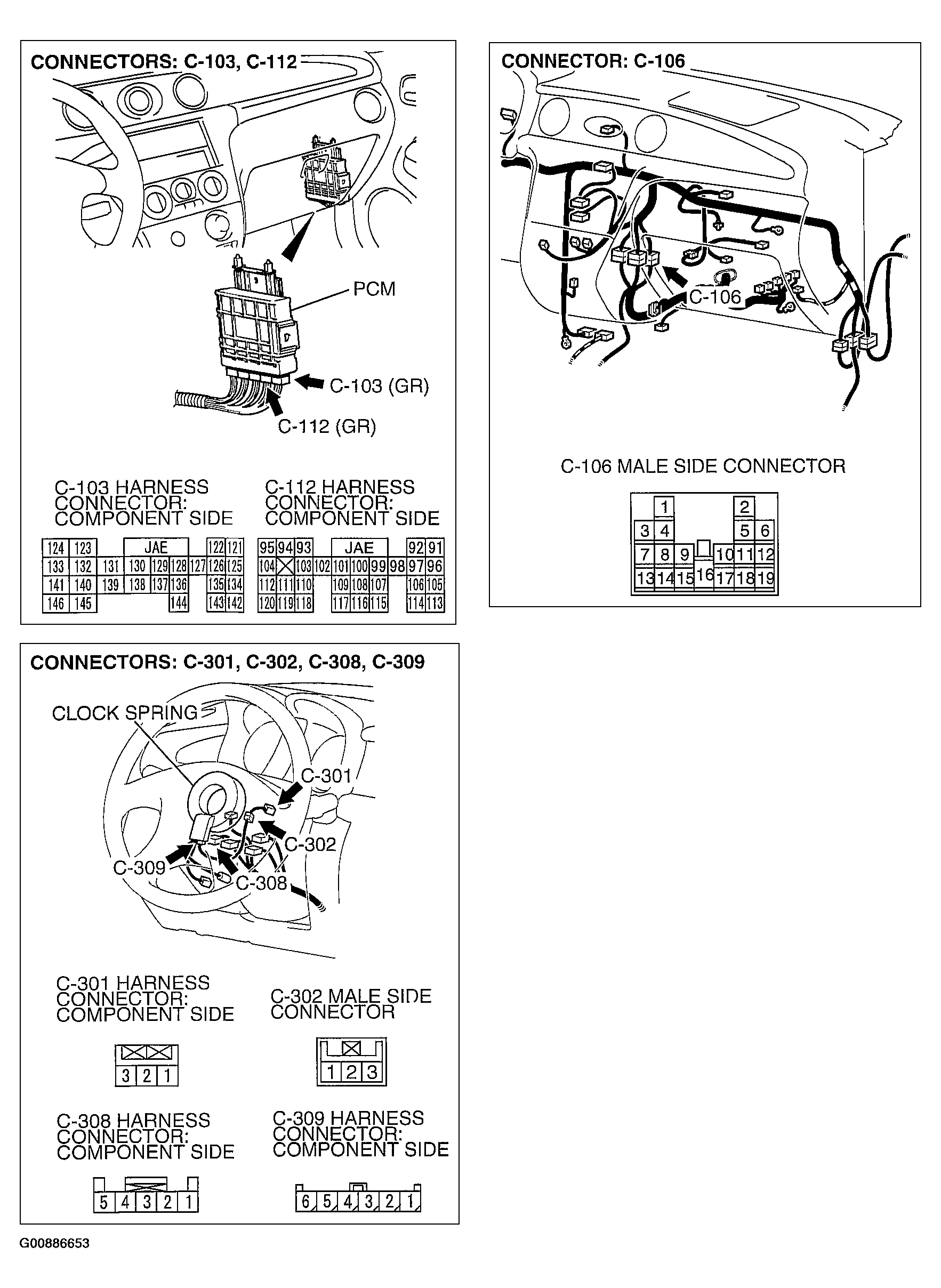

Fig 2: Identifying Connectors: C-103, C-112, C-106, C-301, C-302, C-308, C-309

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
