Stoplight Switch

  1. Disconnect the connector.
    Fig 1: Identifying Stoplight Switch
    G00886754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check for continuity between the terminals of the switch.

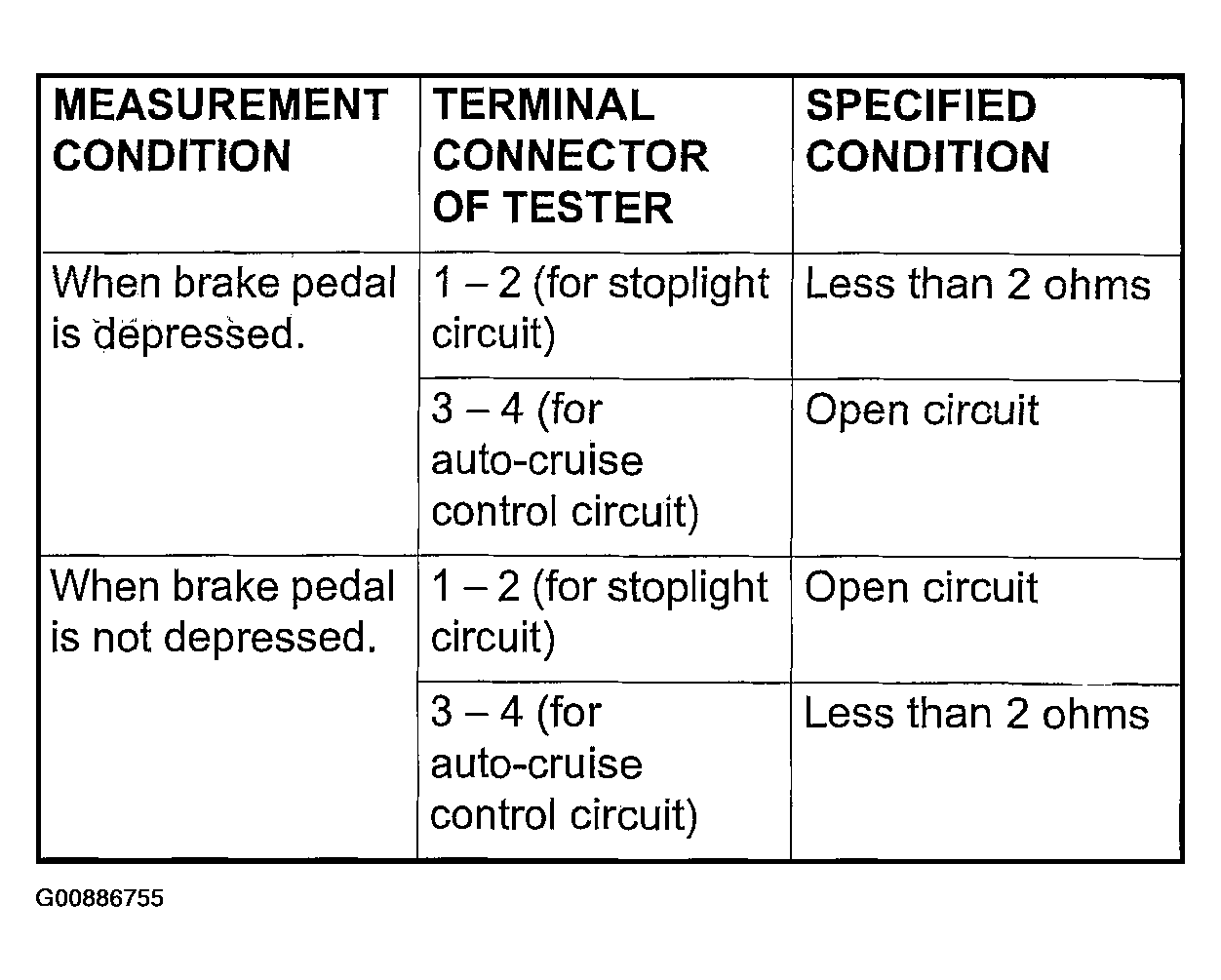

    Fig 2: Continuity Checking Chart
    G00886755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
