Transponder Lock Check

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)
  • MB991824: Vehicles Communication Interface (V.C.I.)
  • MB991827: MUT-III USB Cable
  • MB991911: MUT-III Main Harness B (Vehicles without CAN communication system)

Follow the procedure below to judge if the ignition key can be overwritten (i.e. the ignition key is correct) or not.

1. Connect the scan tool MB991958 to the data link connector.
2. Turn the ignition switch to "ON" position.

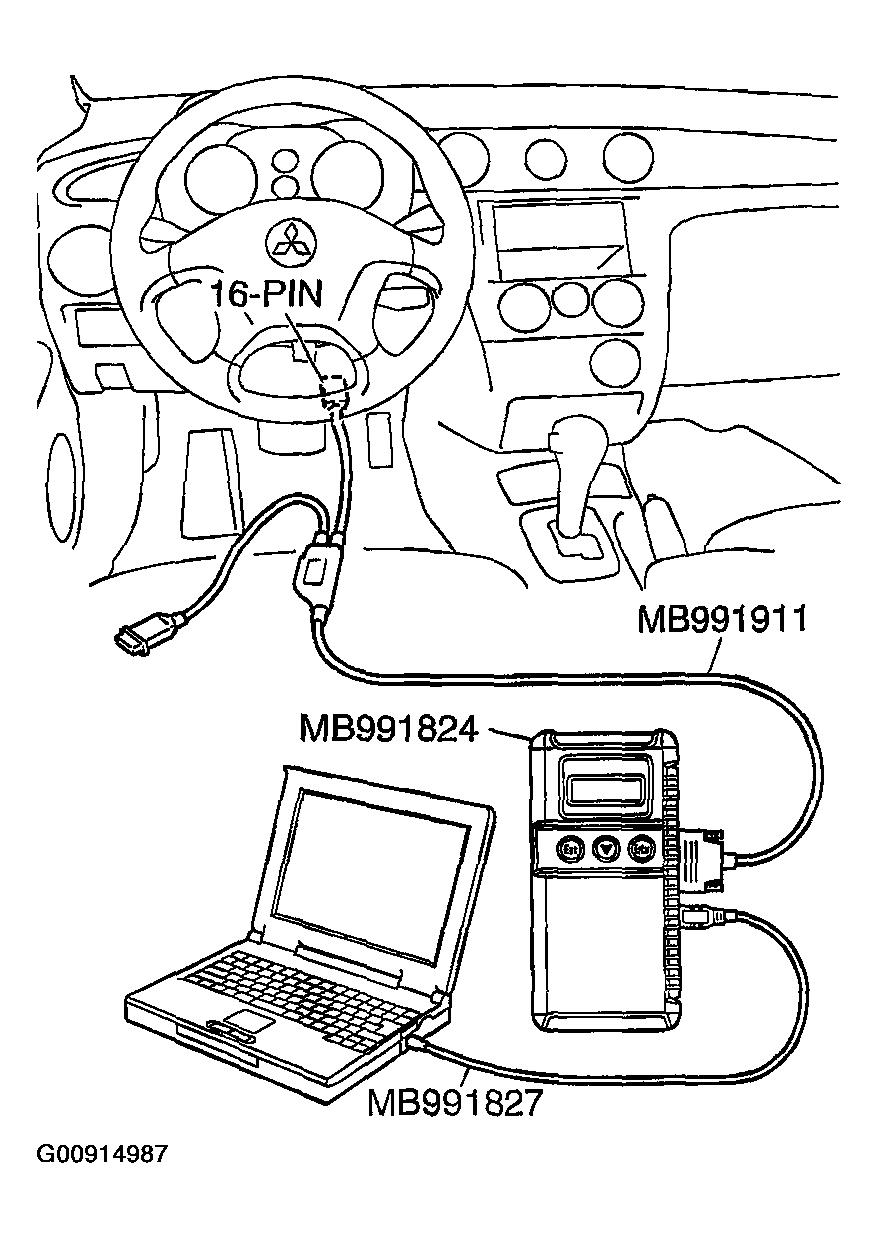

   Fig 1: Connecting Scan Tool MB991958 To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Select "Interactive Diagnosis" from the start-up screen.
   Fig 2: Identifying Select "Interactive Diagnosis" From Start-Up Screen

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Select "System select."
   Fig 3: Identifying Select "System select."

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Choose "IMMOBILIZER" from the "POWER TRAIN" tab.
   Fig 4: Identifying Choose "IMMOBILIZER" From "Power Train" Tab

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Select "Data List."
   Fig 5: Identifying Select "Data List."

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. The multi-center display shows whether the ignition key, which has been inserted in the switch, can be rewritten and how many ignition keys have ever been registered.
   Fig 6: Identifying Multi-Center Display

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 7: Identifying Ignition Key Status Table

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
