Component Locations
COMPONENT LOCATIONS
| Component | Location | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

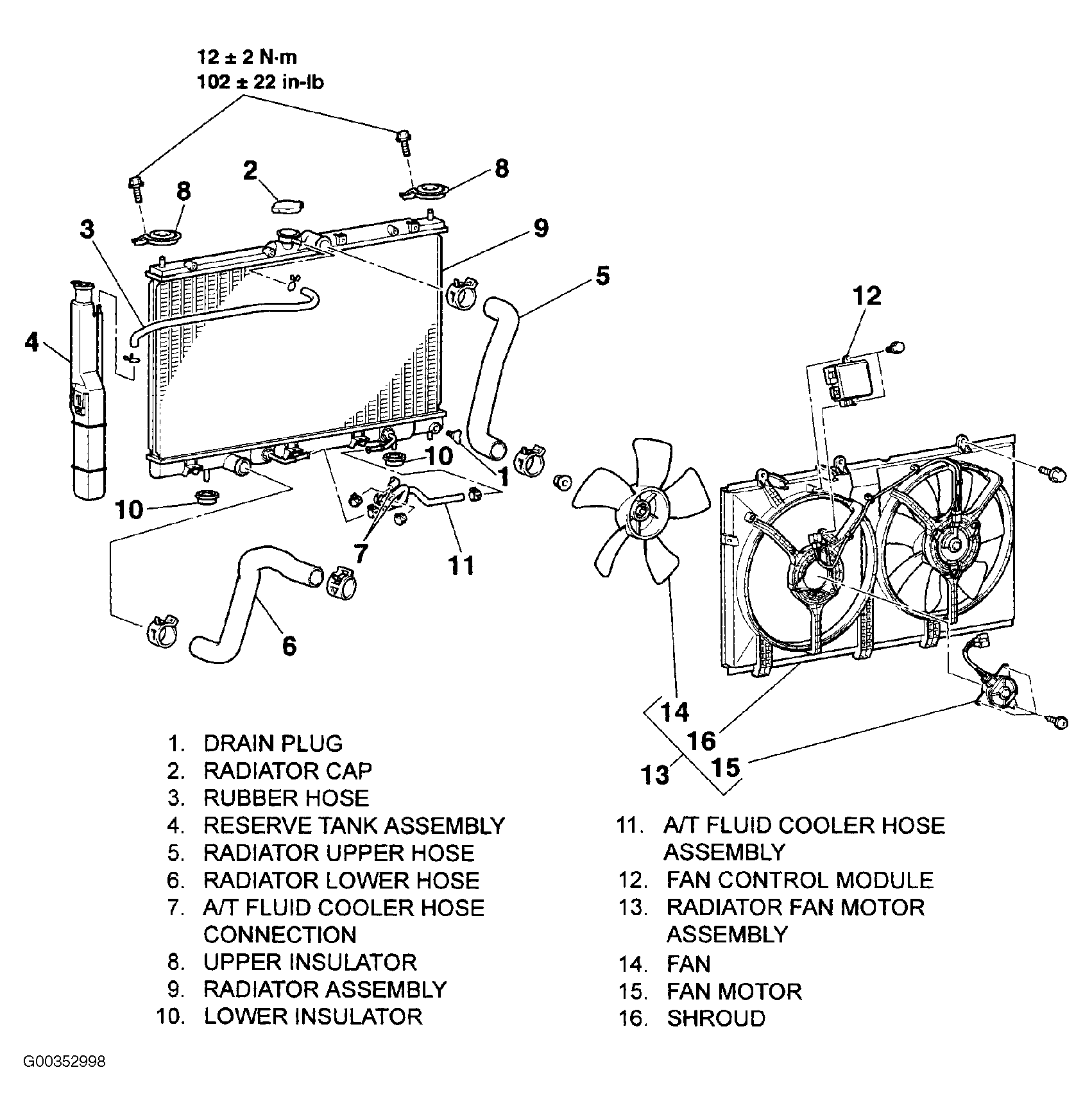

| Condenser Fan | (1) Behind Radiator | ||||||||||
| Fan Control Module | (1) Integrated With Radiator Fan Motor | ||||||||||

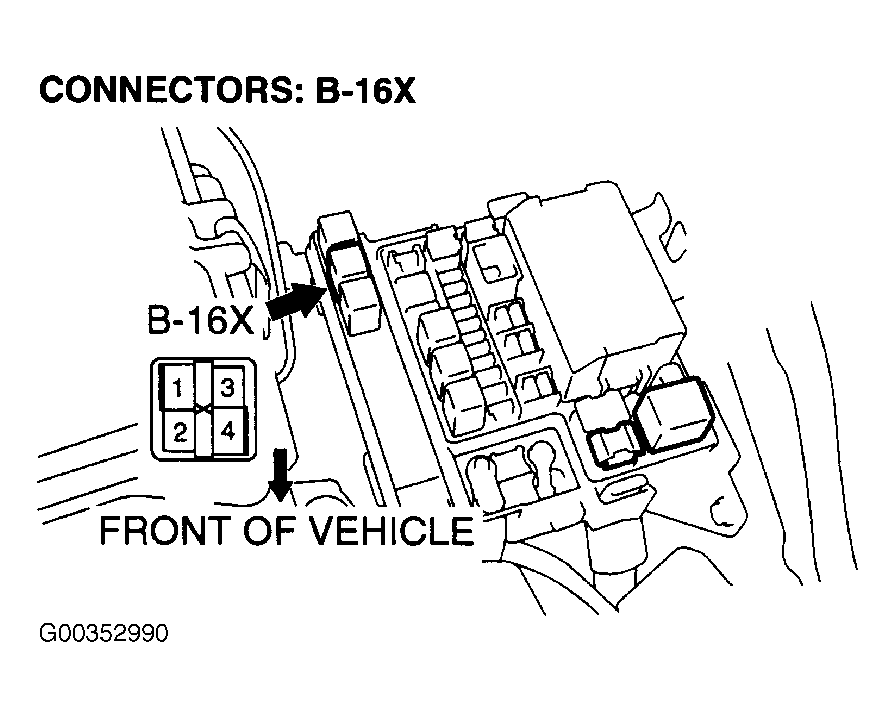

| Fan Control Relay | (2) In Engine Compartment Fuse/Relay Box | ||||||||||
| Fusible Link No. 2 | (3) In Engine Compartment Fuse/Relay Box | ||||||||||
| Multi-Port Fuel Injection (MFI) Relay | (4) In Engine Compartment Fuse/Relay Box | ||||||||||

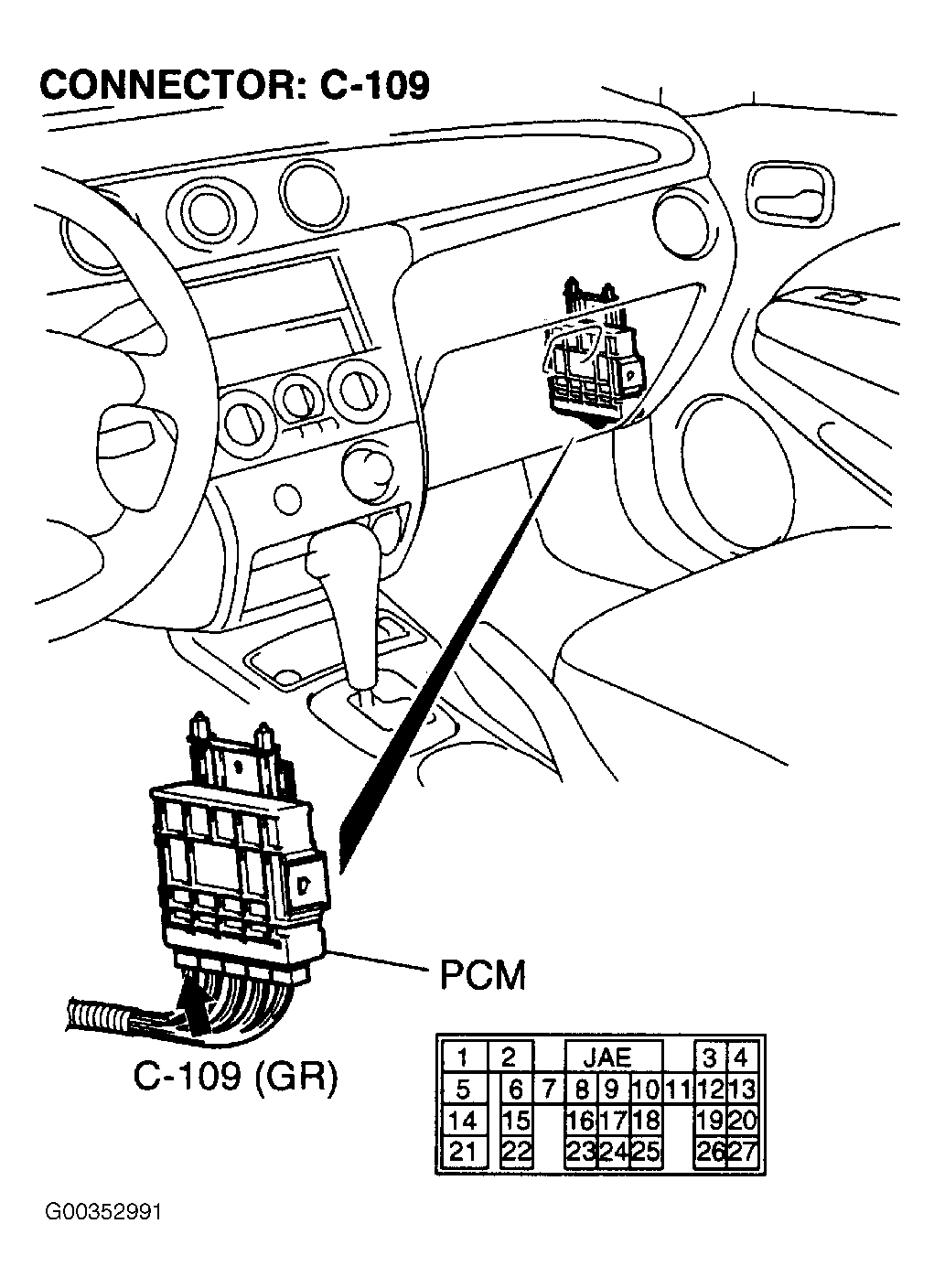

| Powertrain Control Module (PCM) | (5) Behind Right Side Of Instrument Panel | ||||||||||
| Radiator Fan | (1) Behind Radiator | ||||||||||
|
|||||||||||
