Removal And Installation: Notes

CAUTION: *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

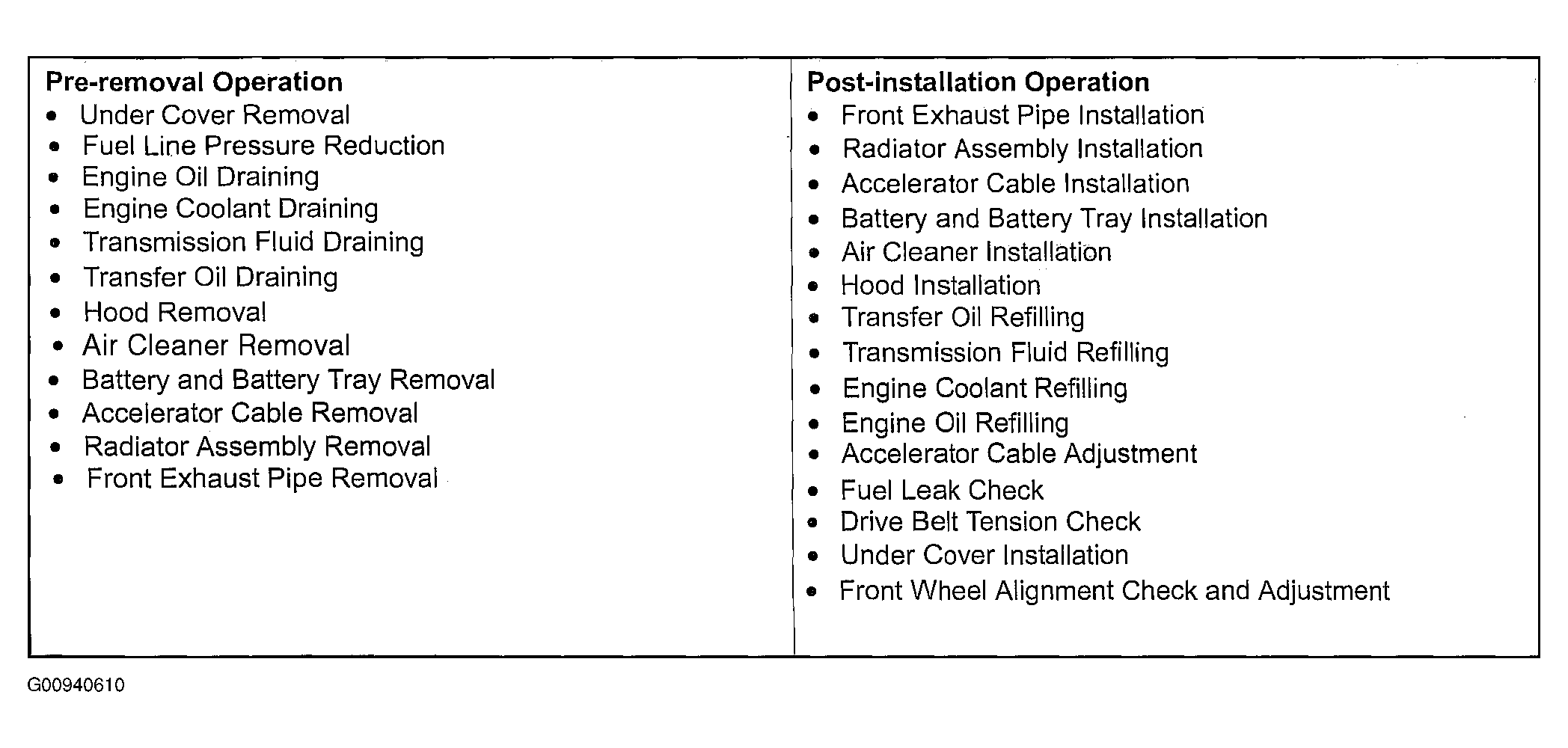

Fig 1: Removal And Installation - Engine Assembly Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

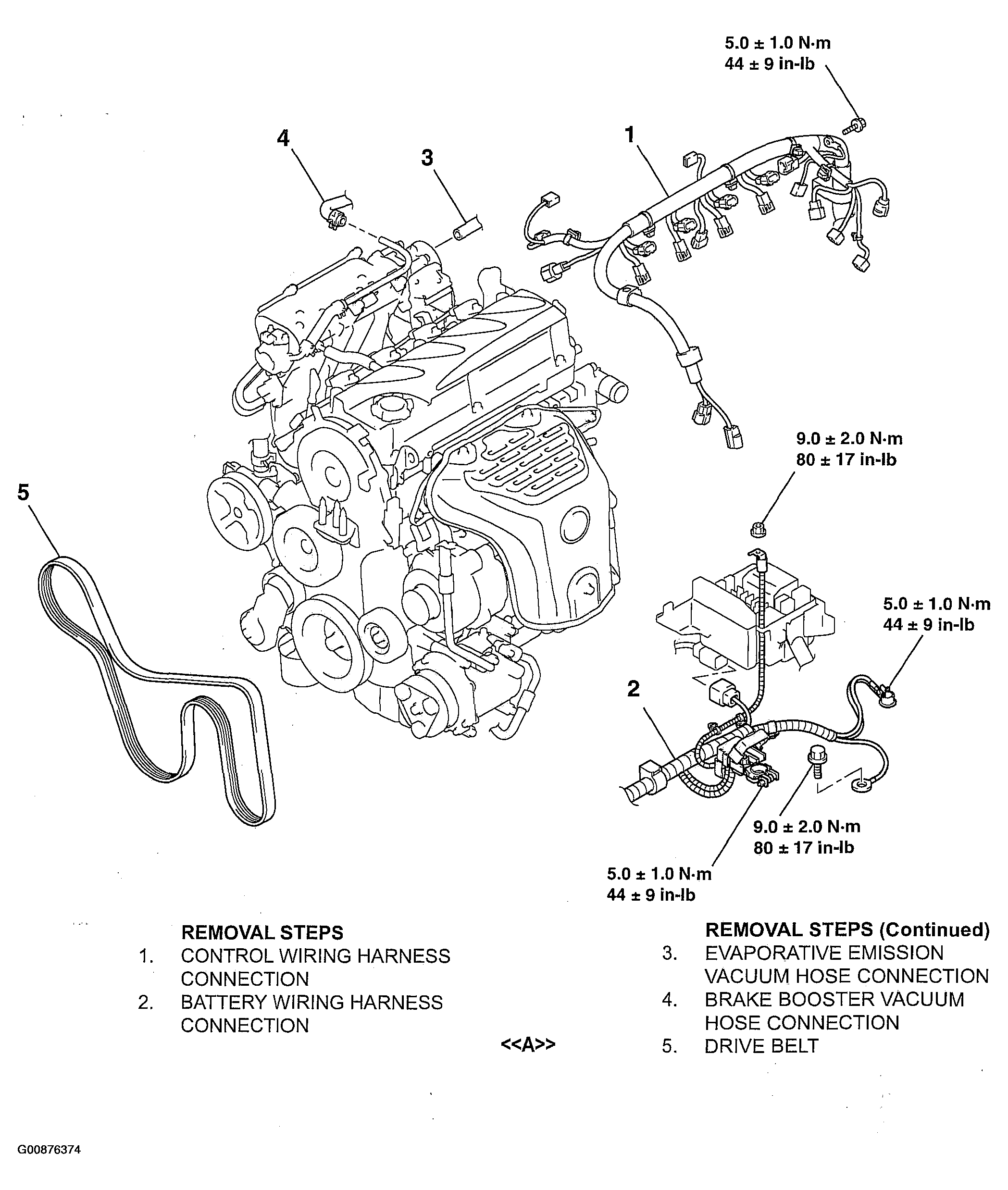

Fig 2: Removal And Installation - Engine Assembly (Wiring Harness Connections)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

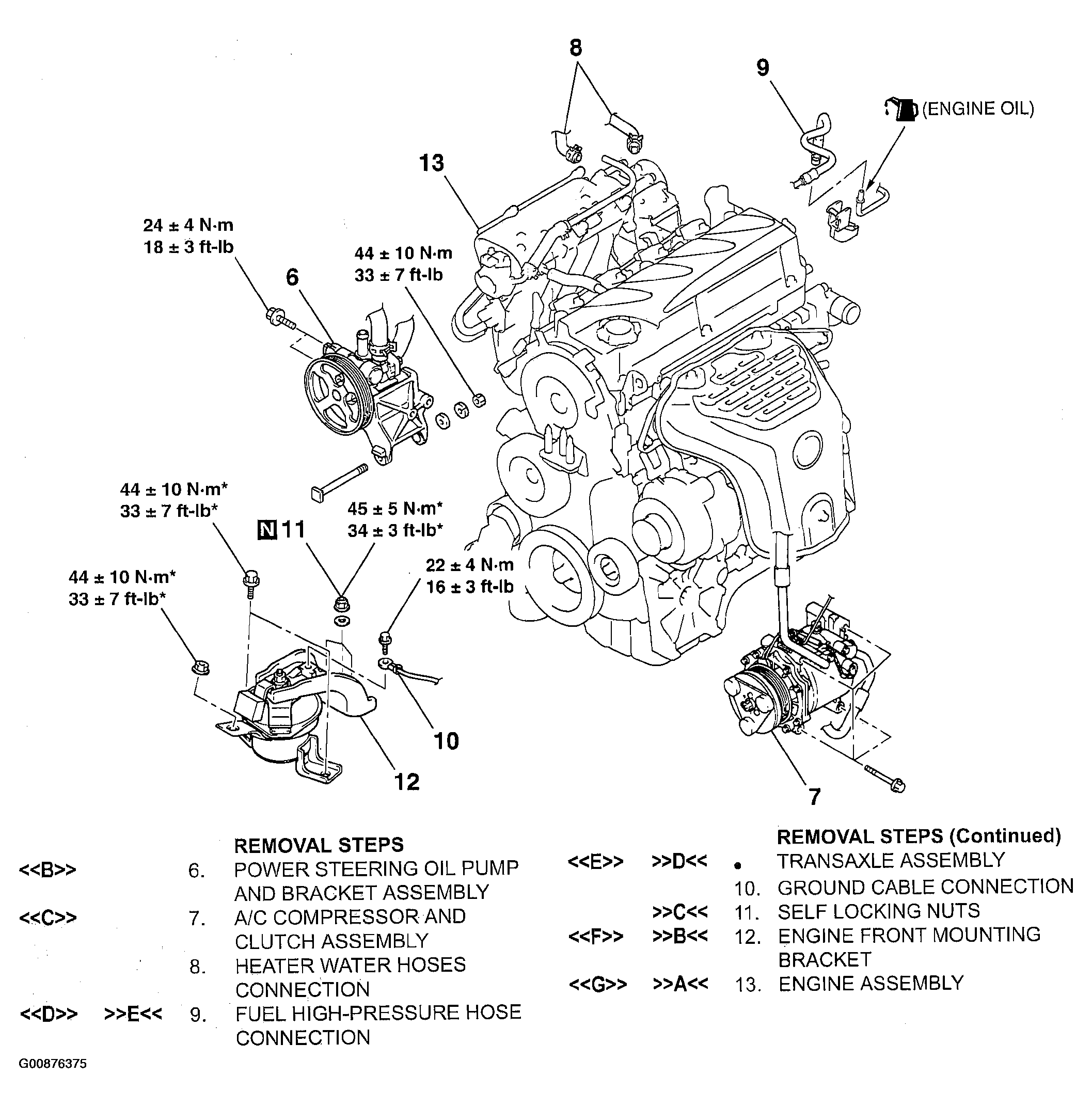

Fig 3: Removal And Installation - Engine Assembly (Power Steering Components)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
