Removal And Installation: Notes

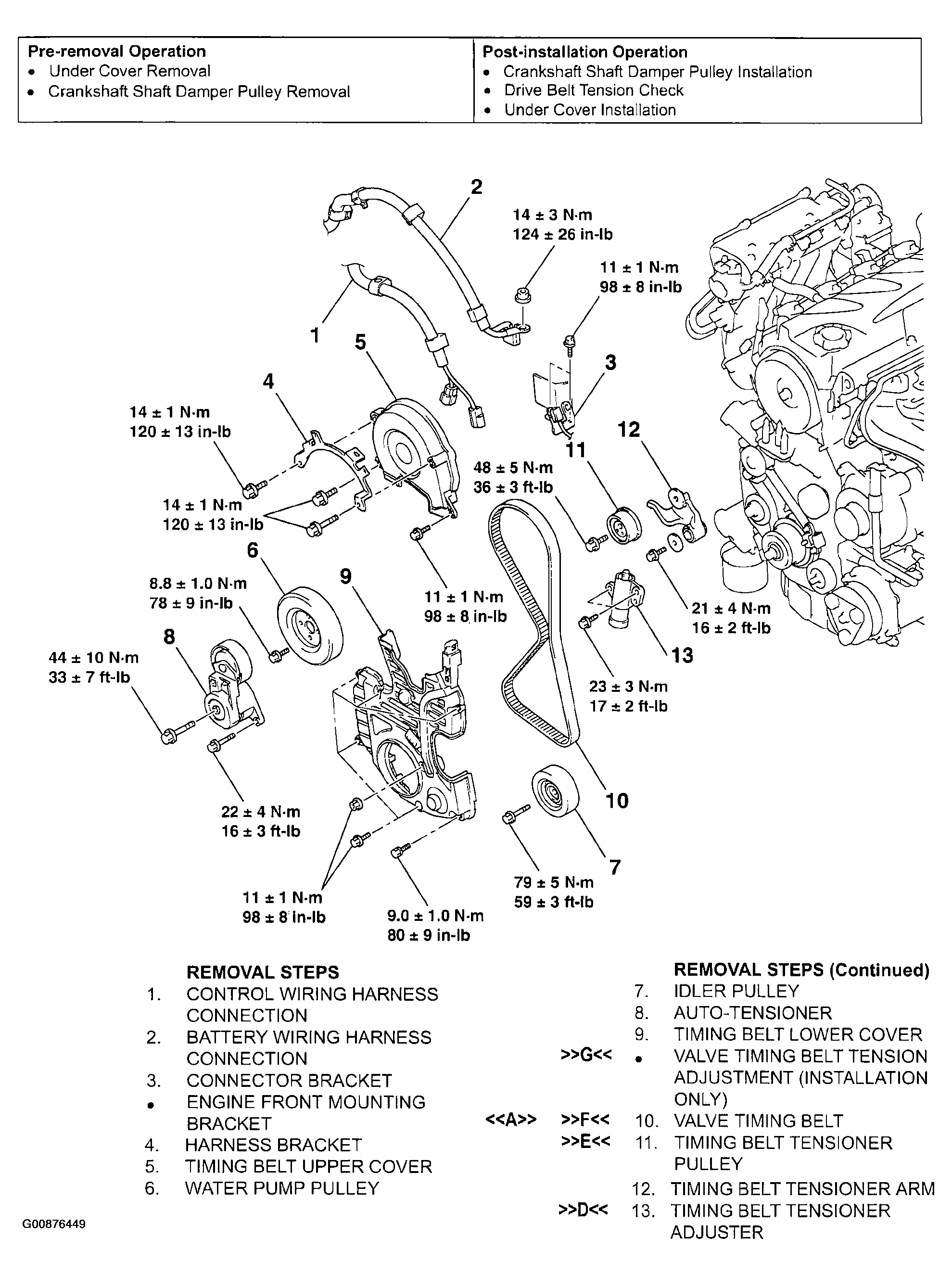

Fig 1: Removal And Installation - Timing Belt Components (1 Of 2)
G00876449Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

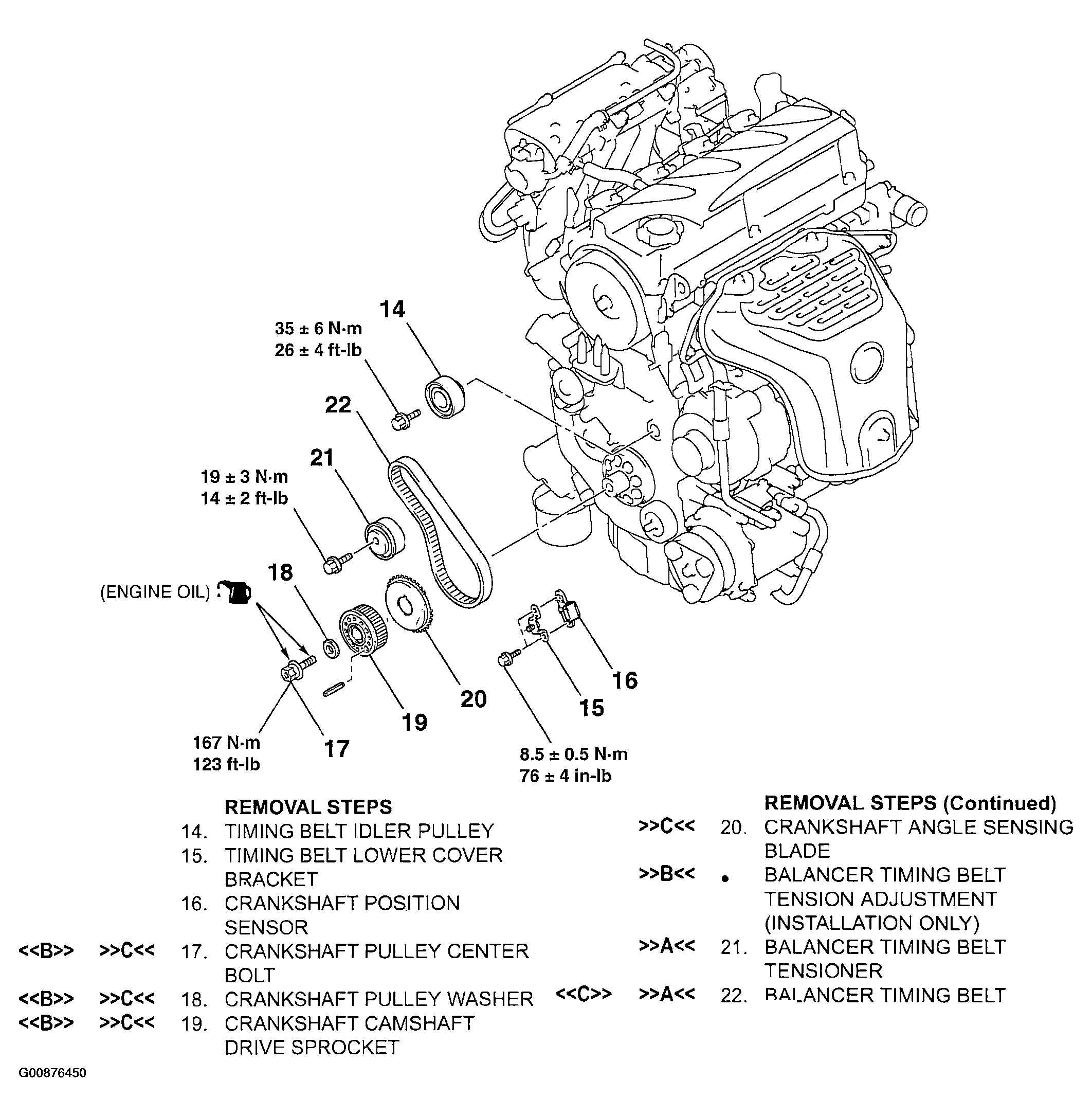

Fig 2: Removal And Installation - Timing Belt Components (2 Of 2)
G00876450Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
