Removal And Installation: Notes

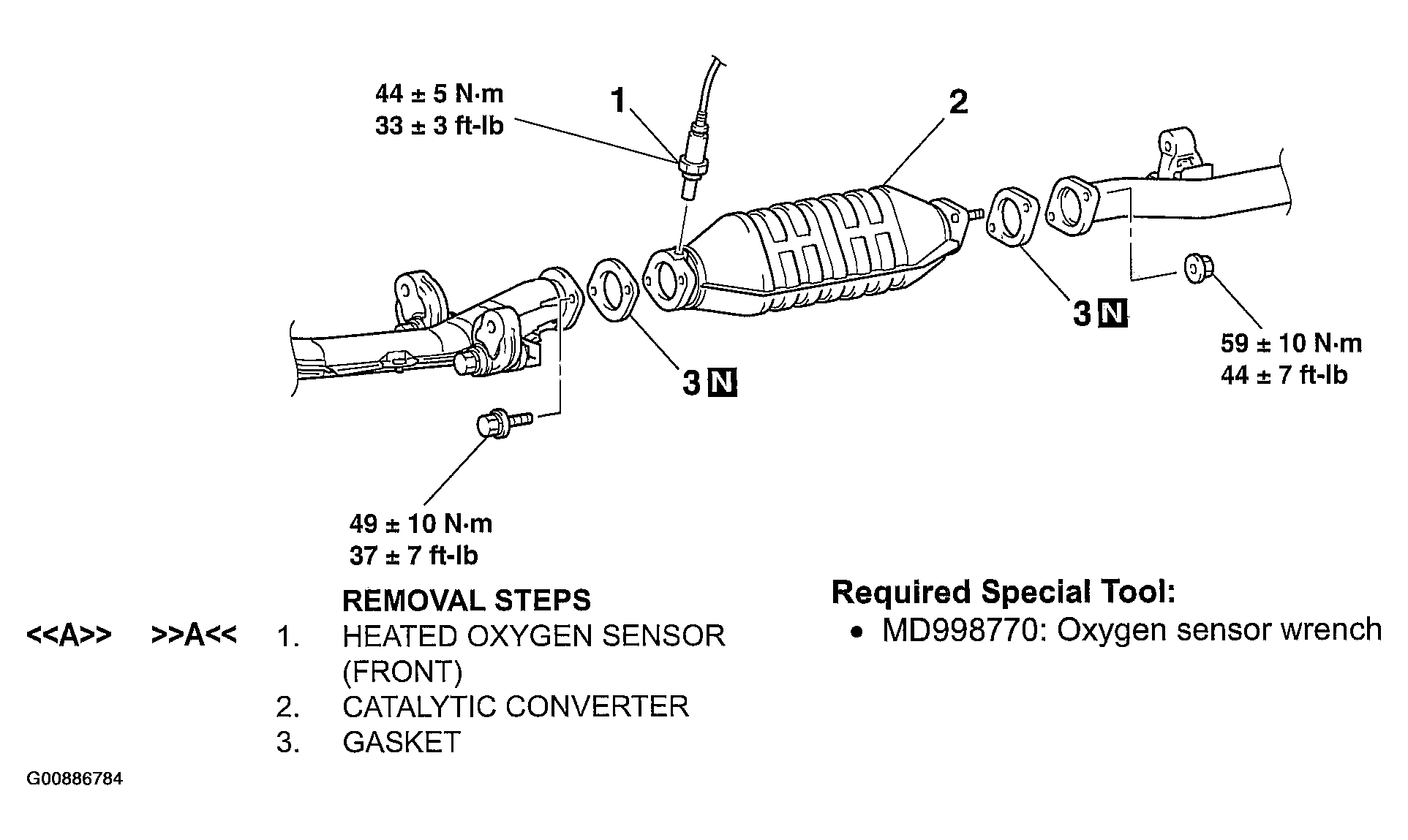

Fig 1: Exploded View Of Catalytic Converter Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
