Vacuum Hose Routing
Vacuum Hose Routing

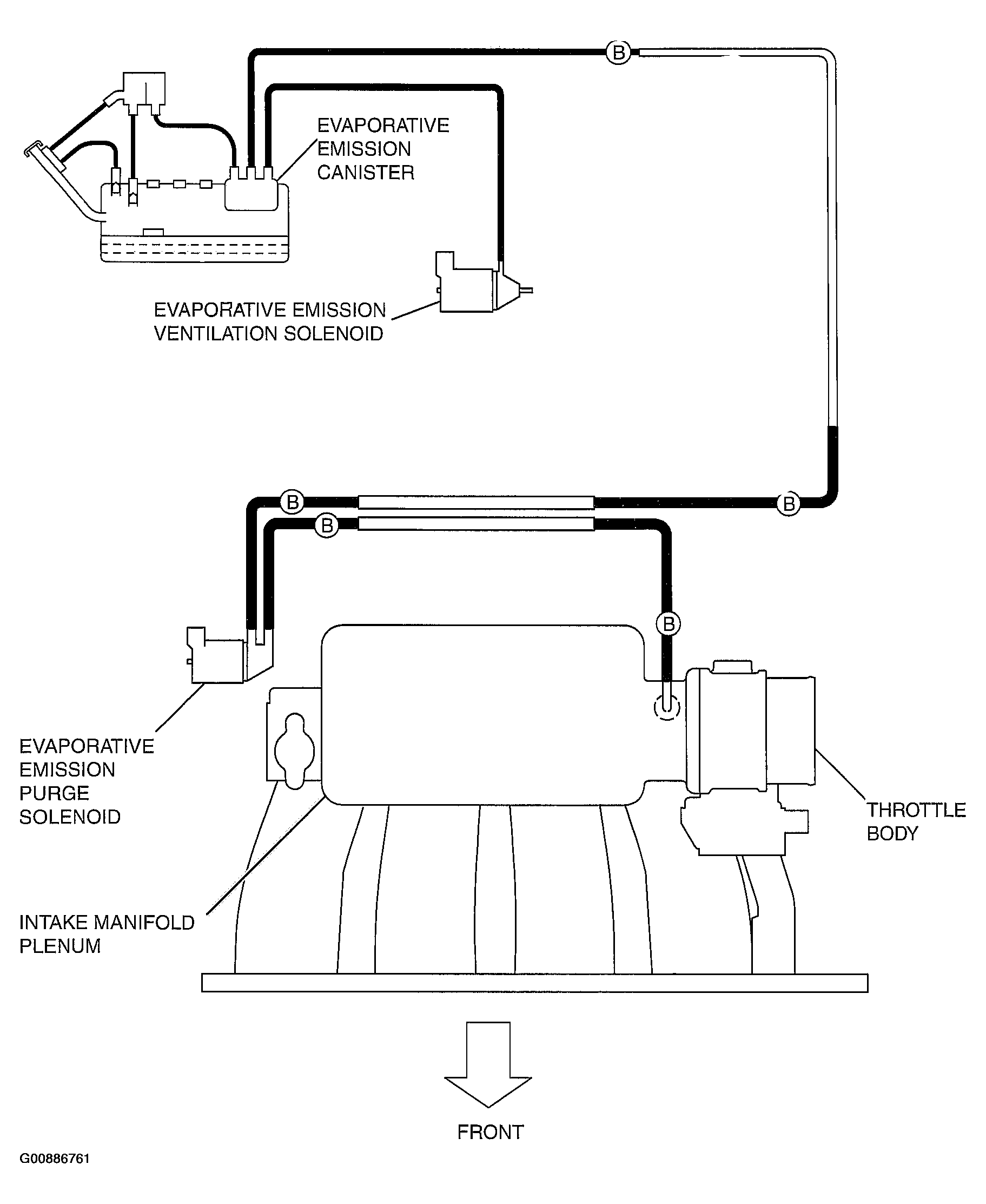

Fig 1: Vacuum Hose Routing Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
