FixVault
Home
›
Mitsubishi
›
2004
›
Outlander LS, AWD
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Power Steering Oil Pump Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

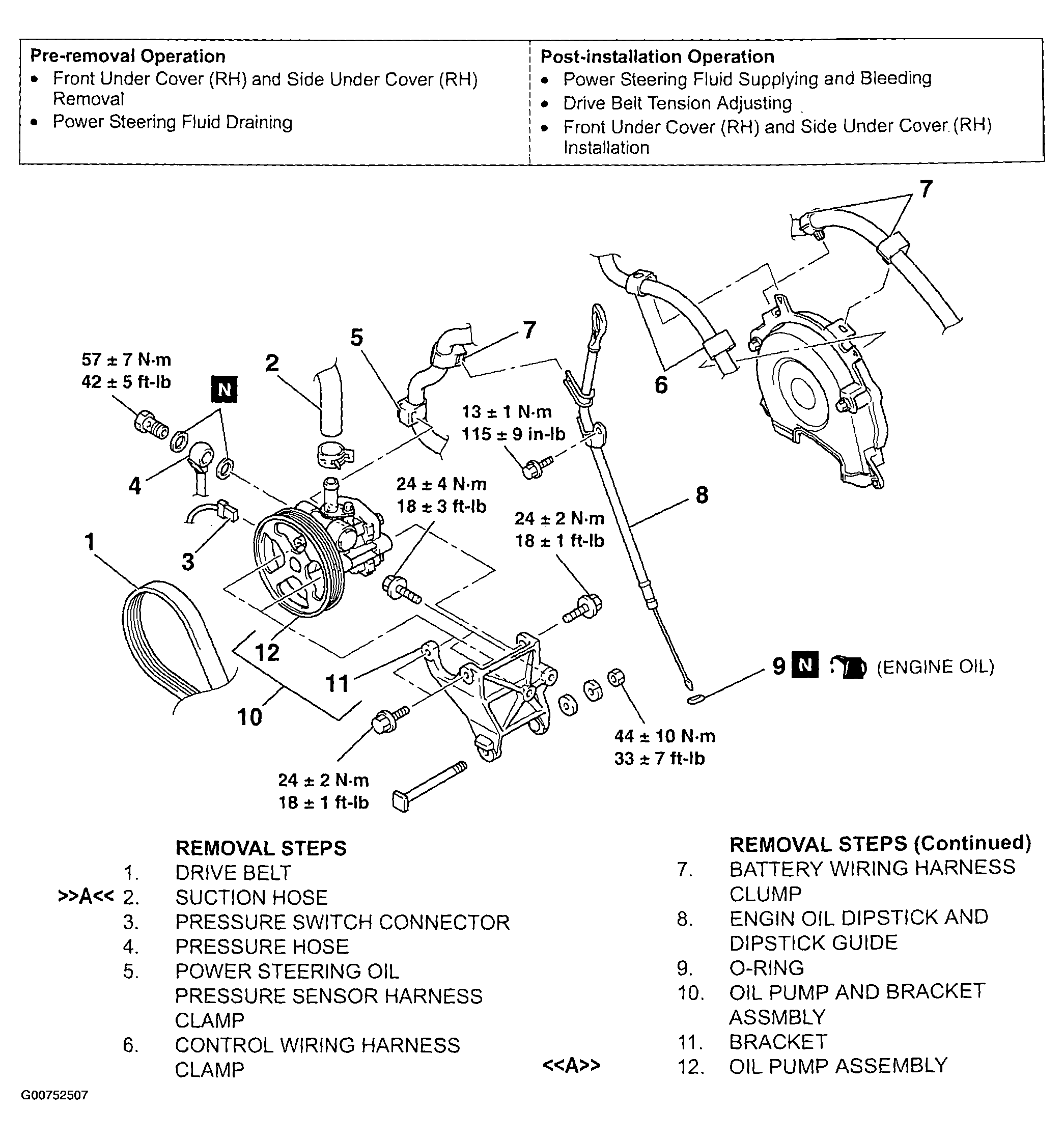

Fig 1: Removal And Installation - Power Steering Oil Pump Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
