Home › Mitsubishi › 2004 › Outlander LS, AWD › Repair and Diagnosis › Steering › Steering Column › Steering Gear Shaft Assembly › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

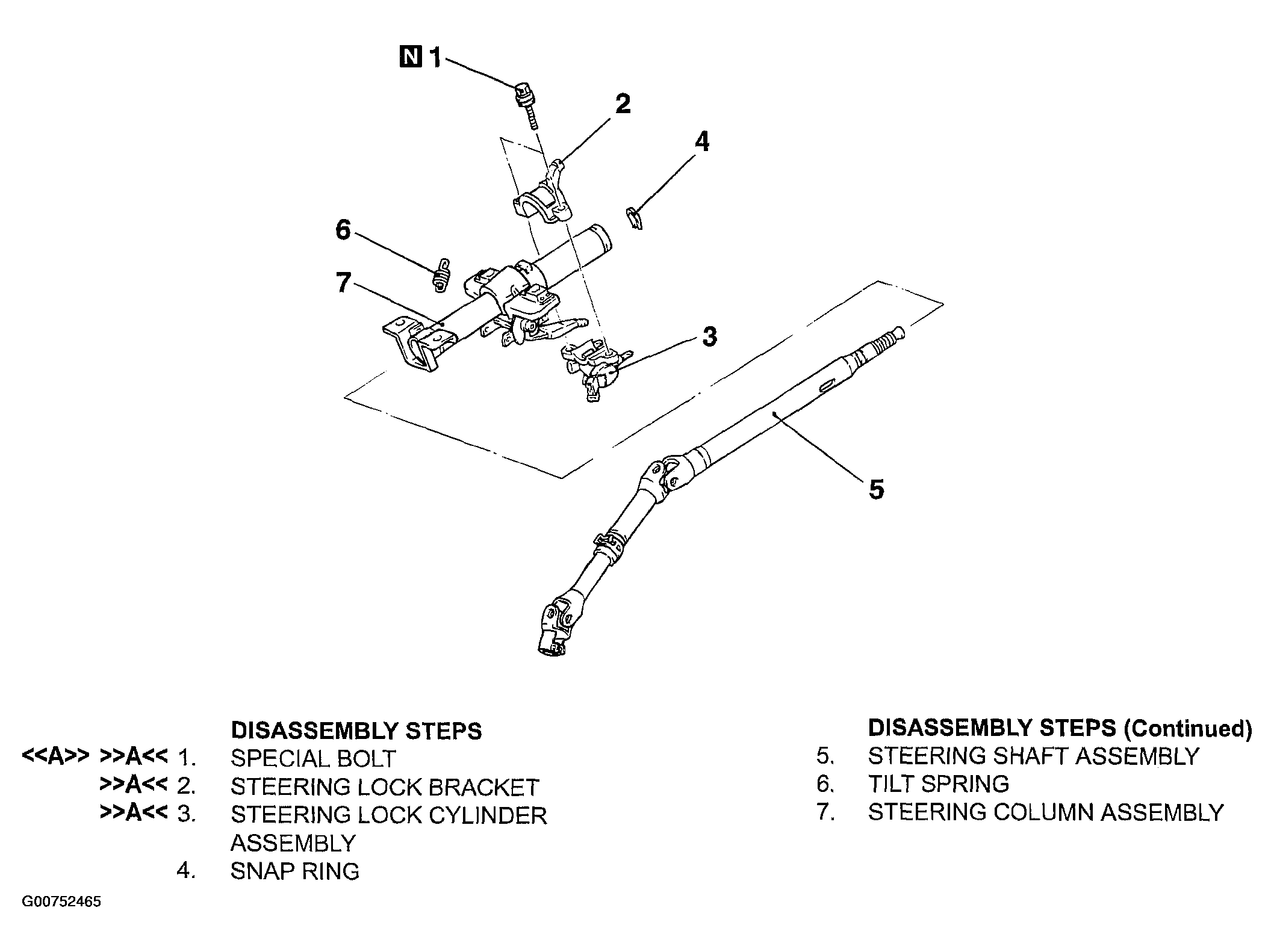

Fig 1: Disassembly And Assembly - Steering Gear Shaft Assembly
G00752465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
