Disassembly And Assembly: Notes

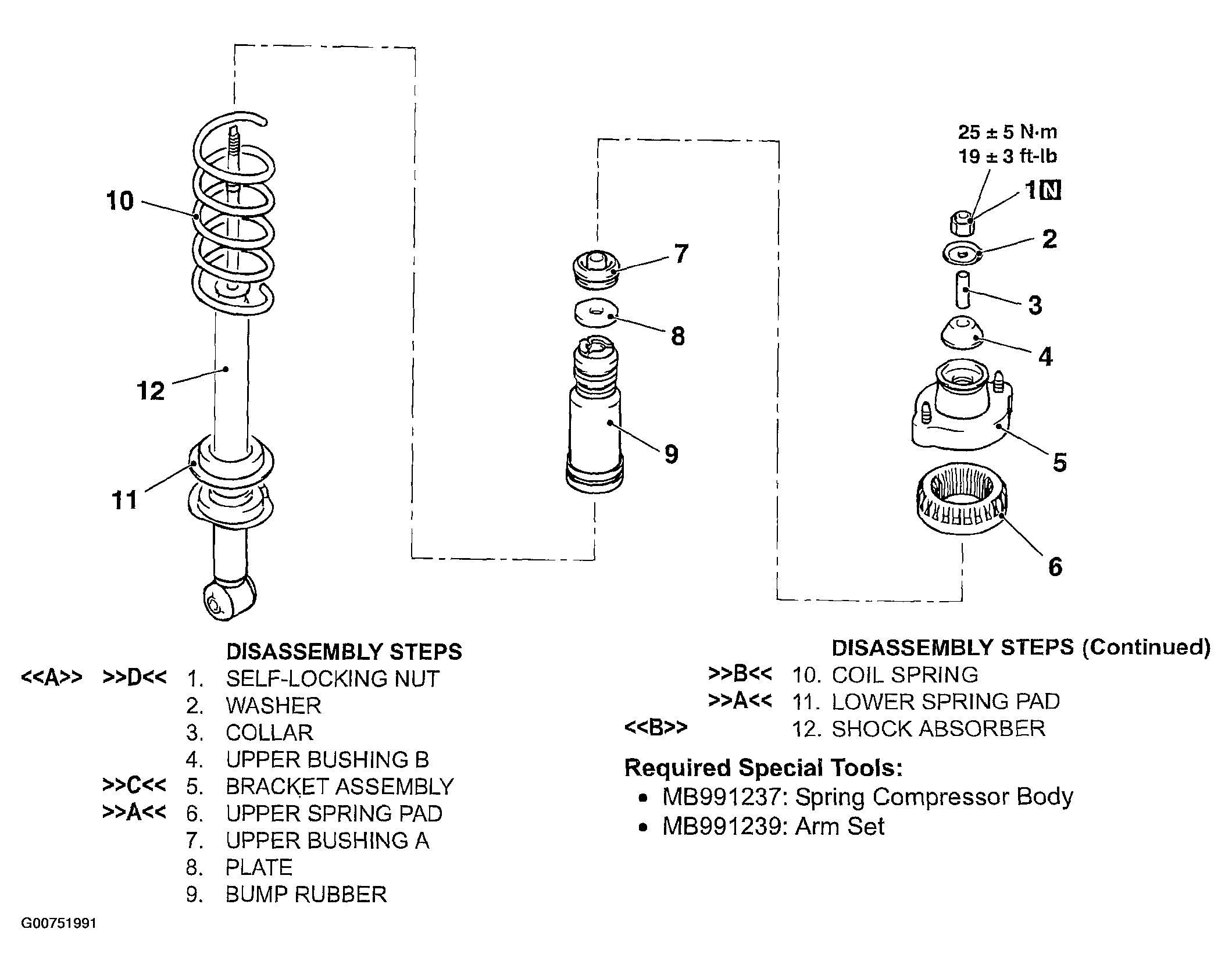

Fig 1: Disassembling Shock Absorber Assembly With Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991237: Spring Compressor Body
• MB991239: Arm Set
