Automatic Transaxle Diagnosis
›
Inspection Procedure Using An Oscilloscope
›
Notes
Inspection Procedure Using An Oscilloscope: Notes

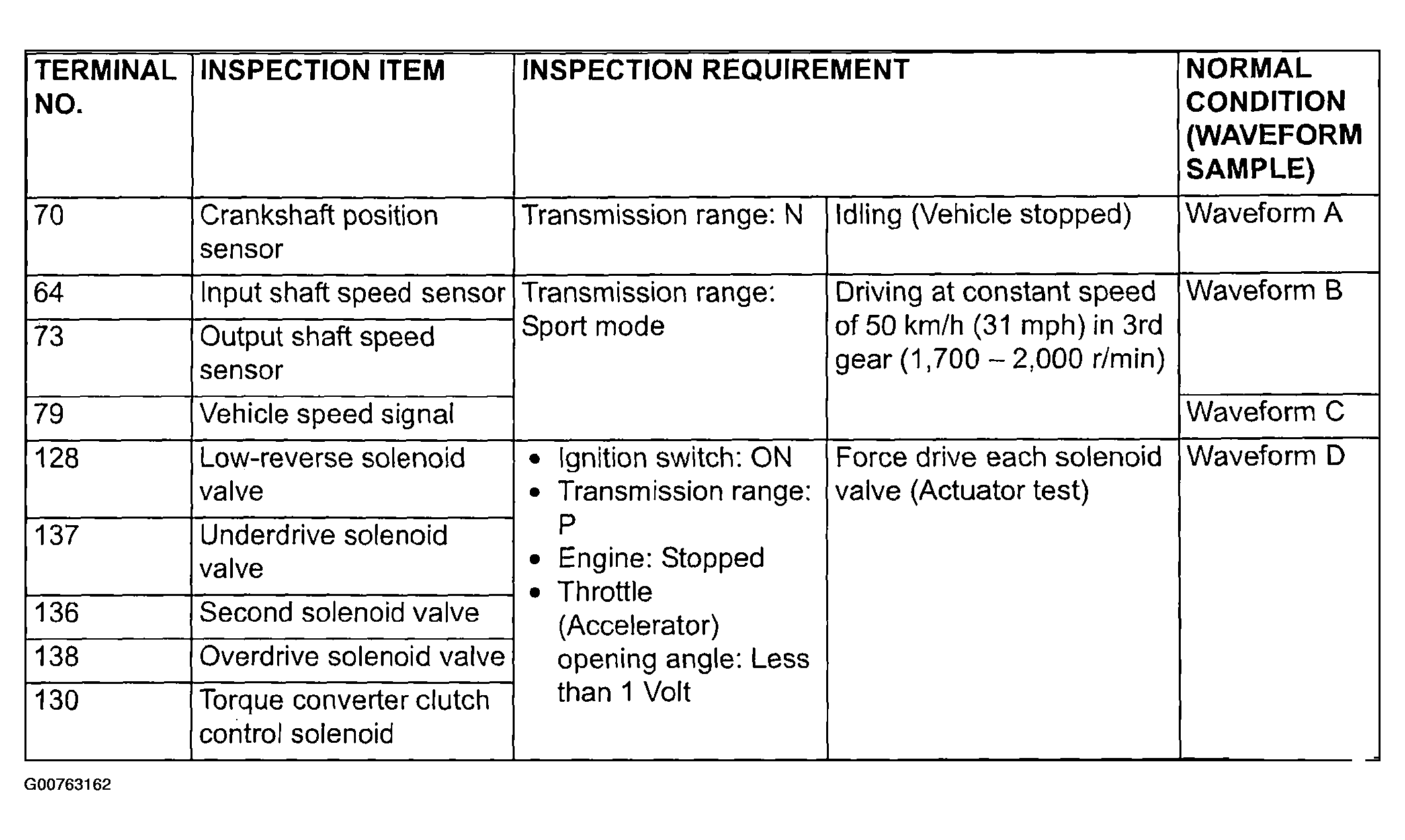

Fig 1: PCM Terminal INSPECTION PROCEDURE Chart (Using An Oscilloscope)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
