F4A4B < Upshift Pattern >

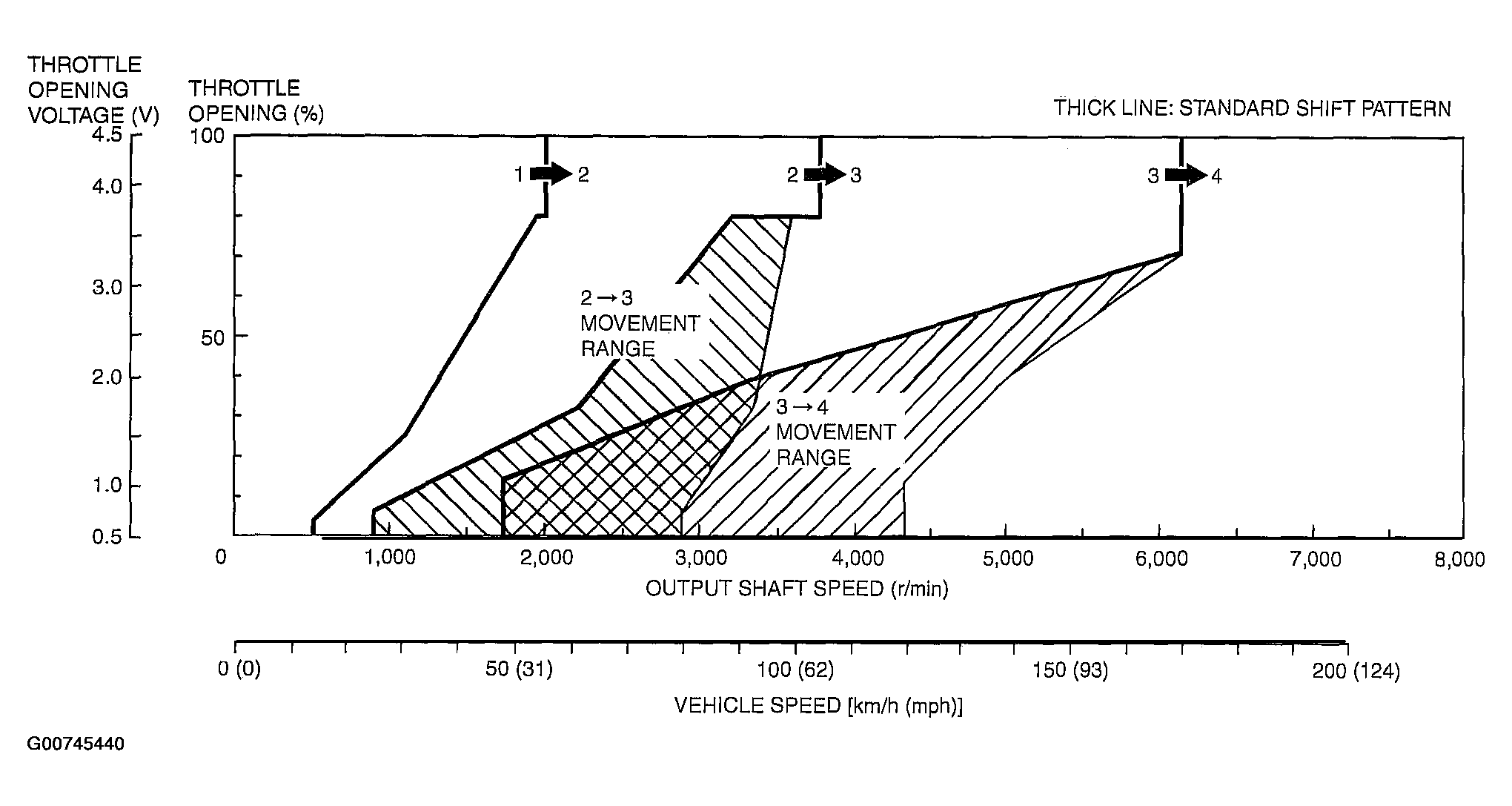

Fig 1: Identifying Shift Pattern Control Upshift Pattern Graph

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
