Components And Functions

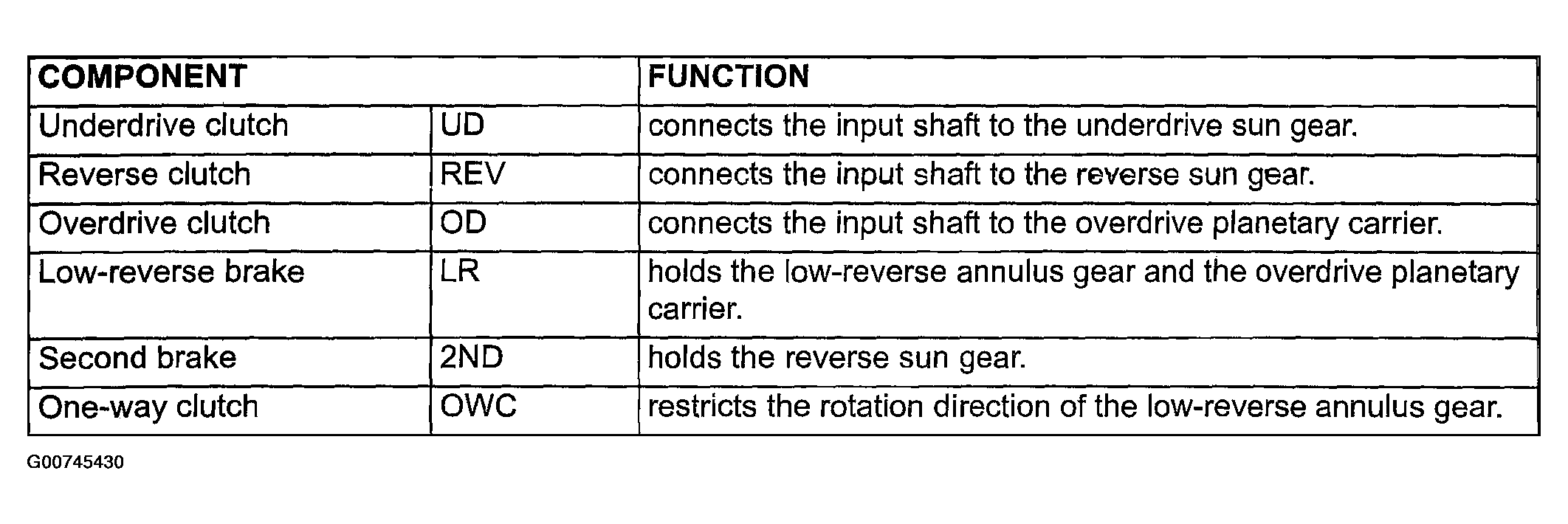

Fig 1: Identifying Components And Functions Table
G00745430Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
