Transmission Fluid Temperature Sensor Check

  1. Remove the transmission fluid temperature sensor.
  2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.
    Fig 1: Checking Transmission Fluid Temperature Sensor (1 Of 2)
    G00763185Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Standard value:

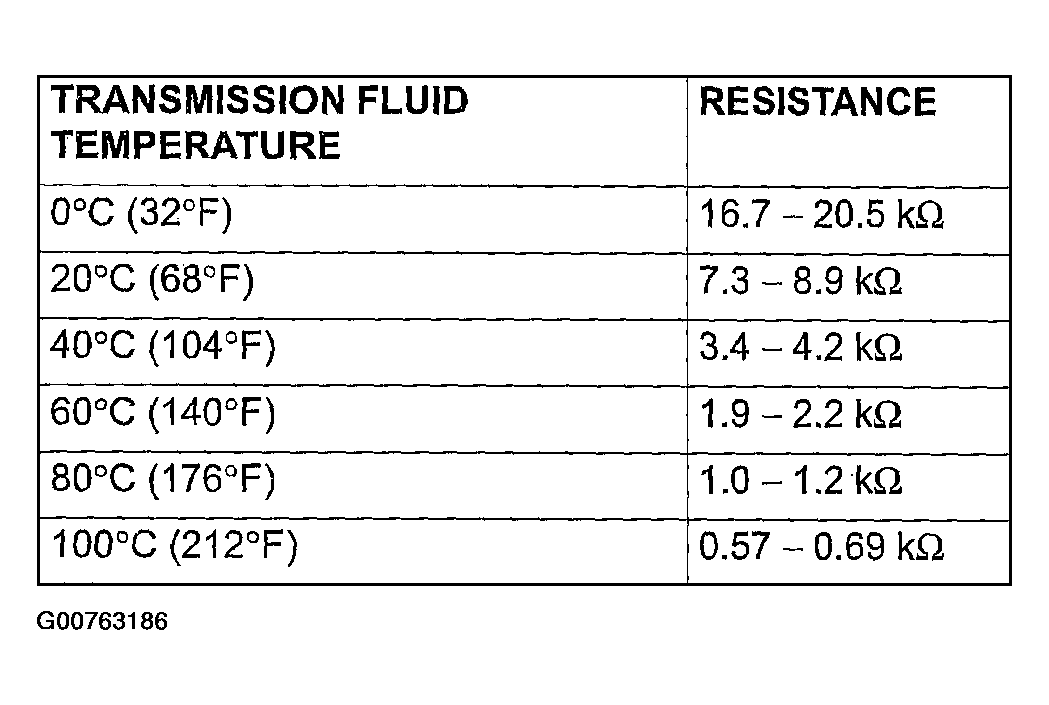

    Fig 2: Checking Transmission Fluid Temperature Sensor (2 Of 2)
    G00763186Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If the transmission fluid temperature sensor resistance is outside the specified range and the "A/T TEMP" warning light is illuminating, replace the transmission fluid temperature sensor.
    NOTE: The "A/T TEMP" warning light on the combination meter illuminates when the temperature reaches approximately 125°C (257°F) or greater, and then stops illuminating when the temperature drops below approximately 115°C (239°F).
