Disassembly And Assembly

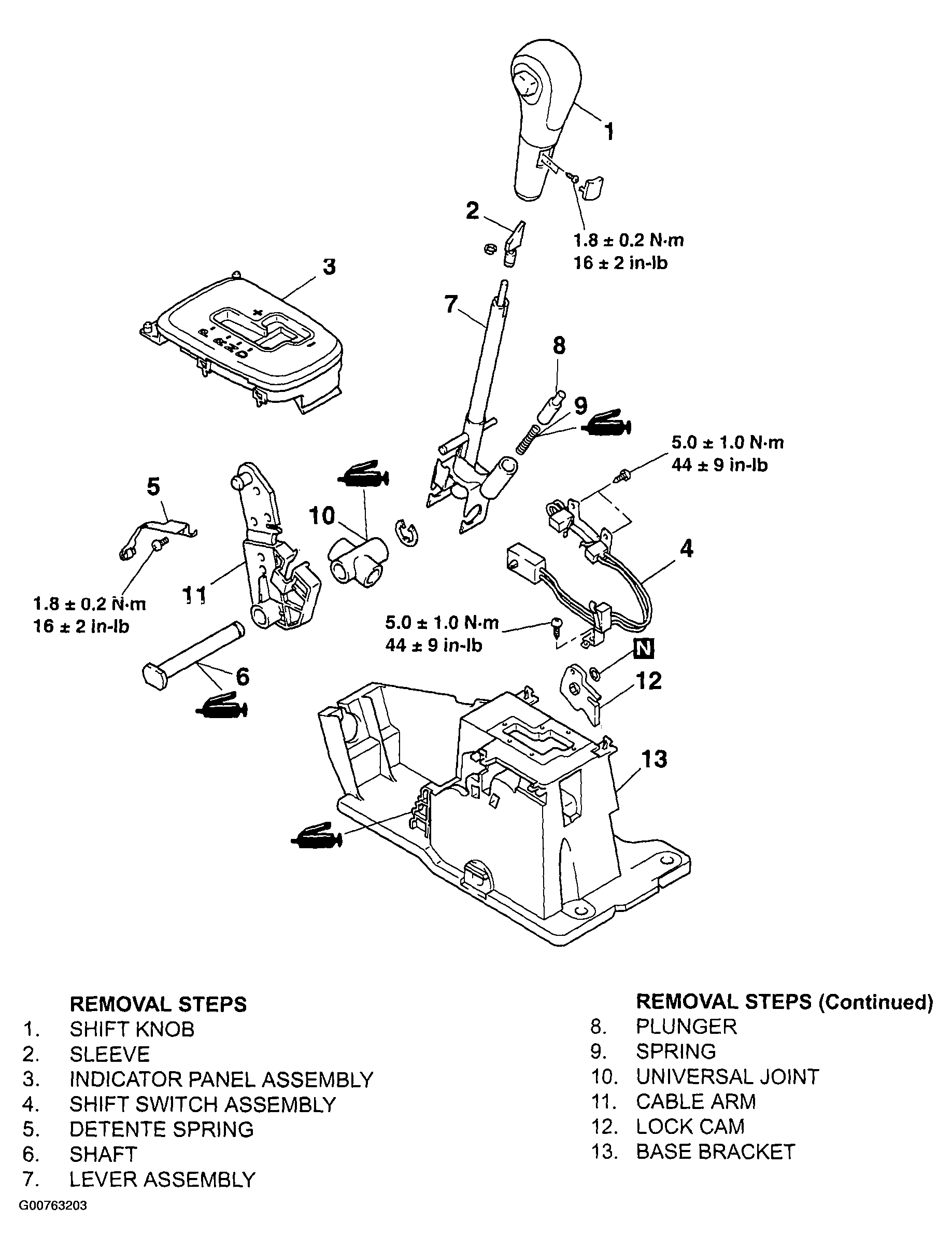

Fig 1: Exploded View Of Shift Assembly
G00763203Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
