Disassembly And Assembly: Notes

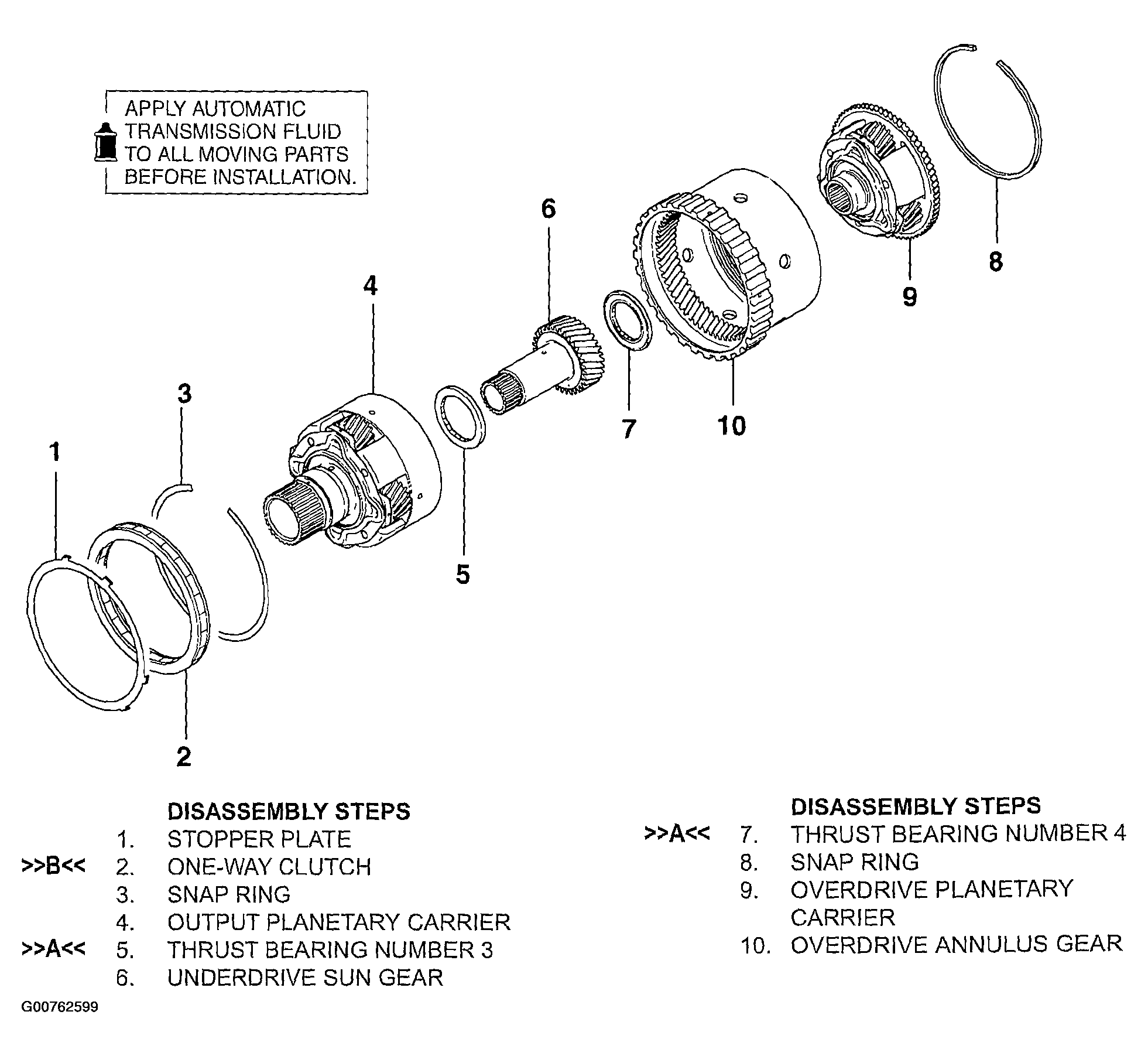

Fig 1: Disassembling Planetary Gear

G00762599

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
