Disassembly And Assembly: Notes

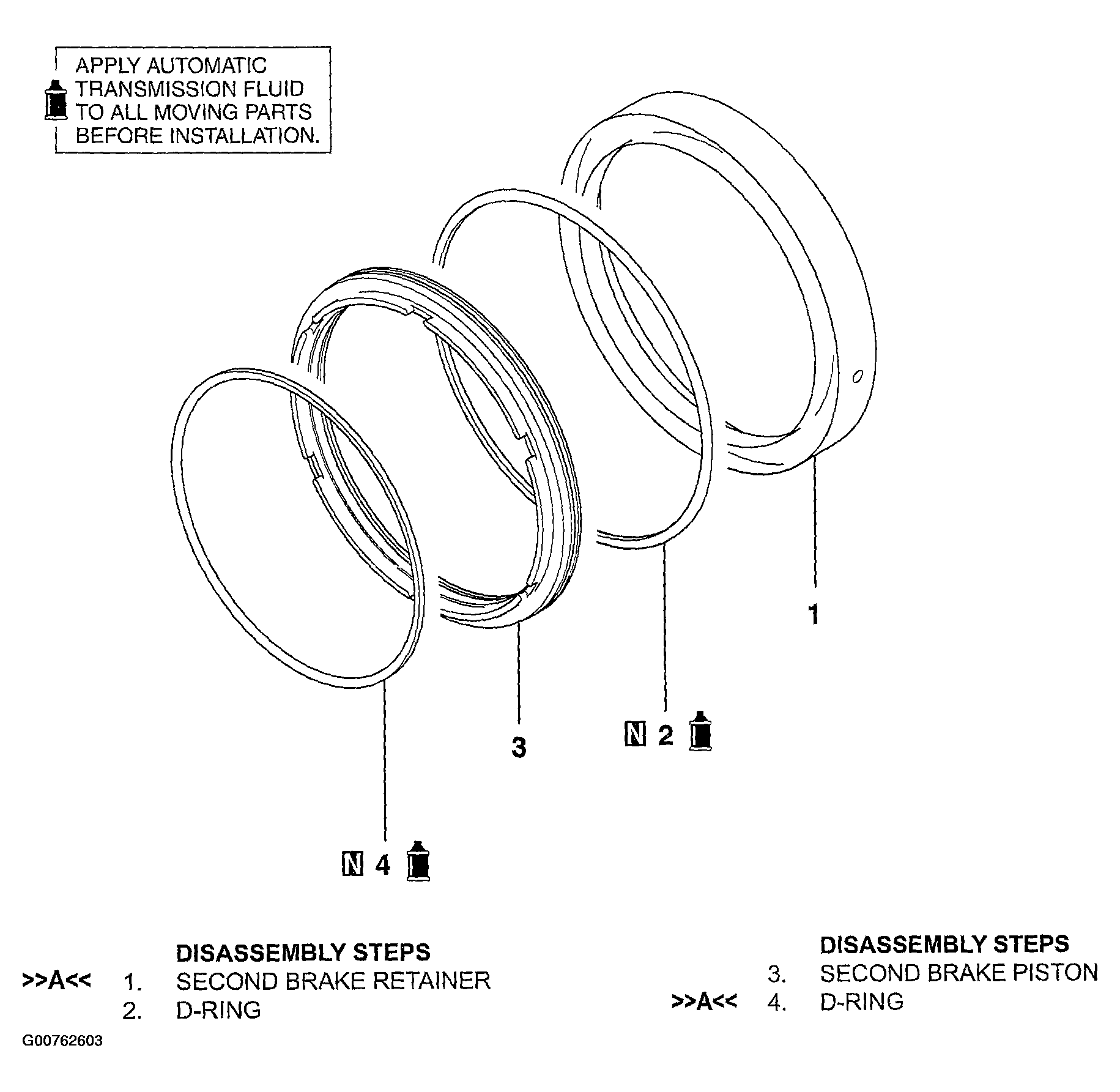

Fig 1: Disassembling Second Brake

G00762603

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
