Valve Body Spring Identification Table
Valve Body Spring Identification Table

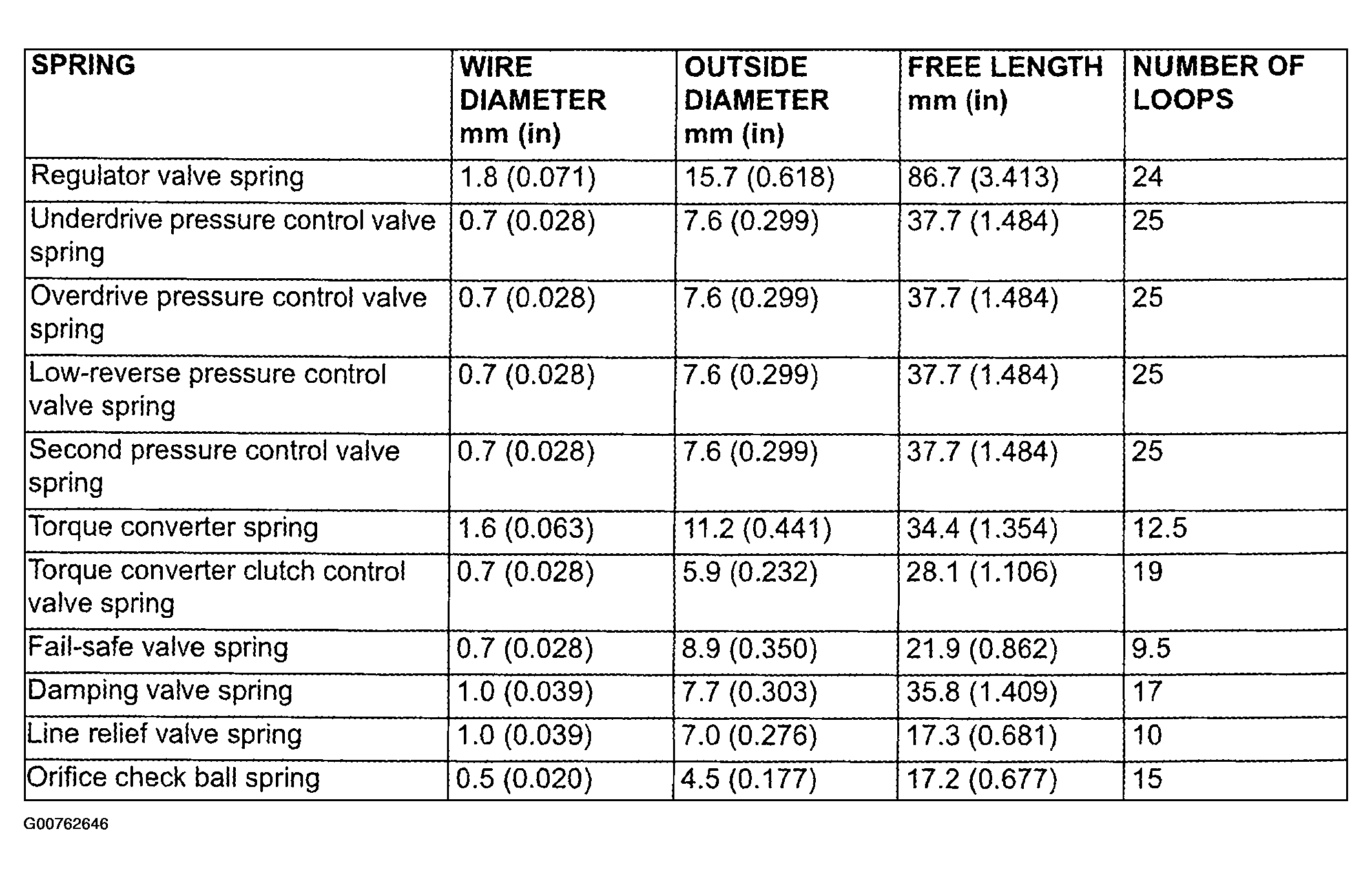

Fig 1: Valve Body Spring Identification Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
