Home › Mitsubishi › 2004 › Outlander LS, FWD › Repair and Diagnosis › Engine Mechanical › Intake & Exhaust › Intake Manifold › Removal And Installation › Notes

Removal And Installation: Notes

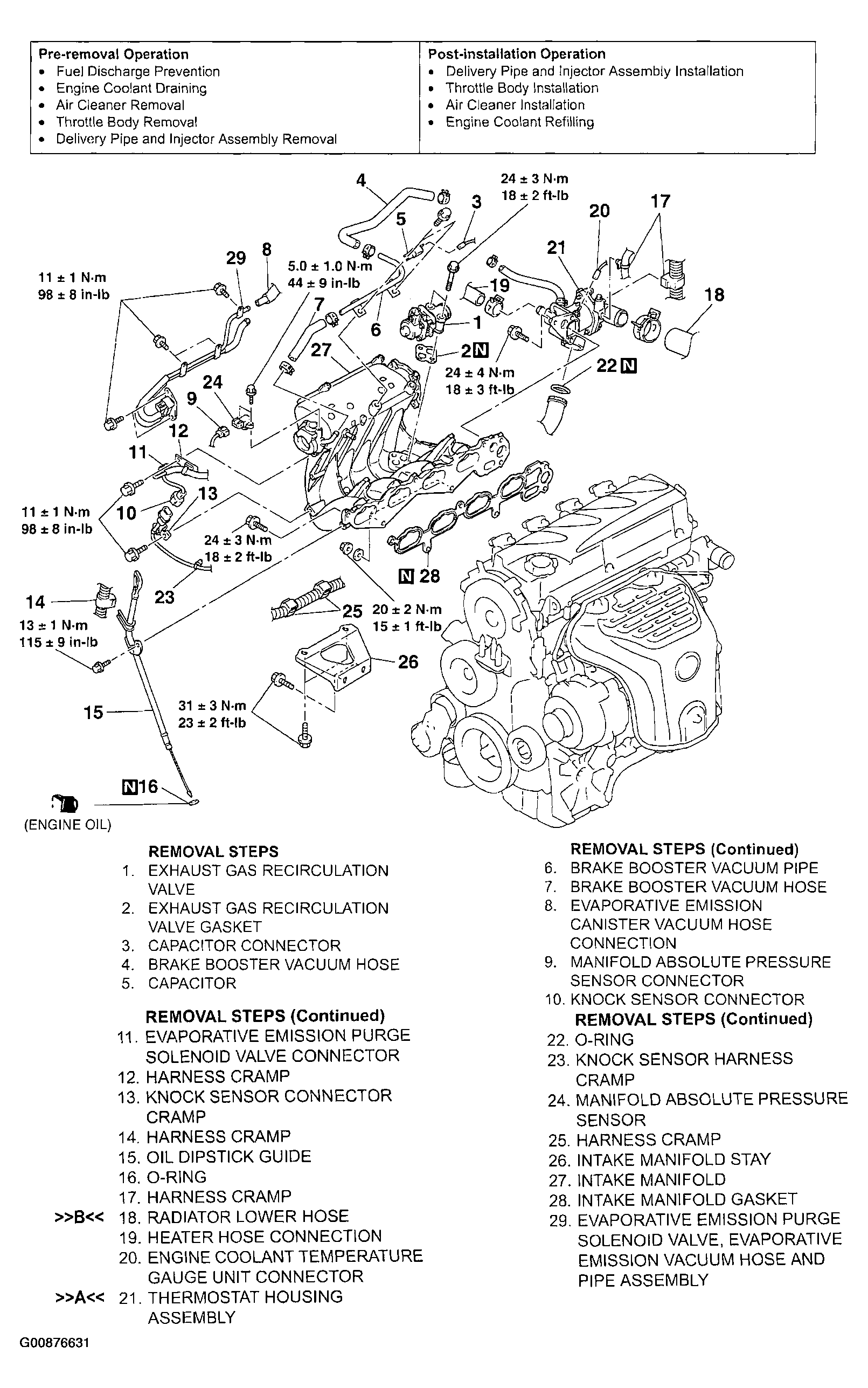

Fig 1: Exploded View Of Intake Manifold Components

G00876631

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
