Removal And Installation: Notes

For Accelerator Cable adjustment, refer to ACCELERATOR CABLE CHECK AND ADJUSTMENT  .

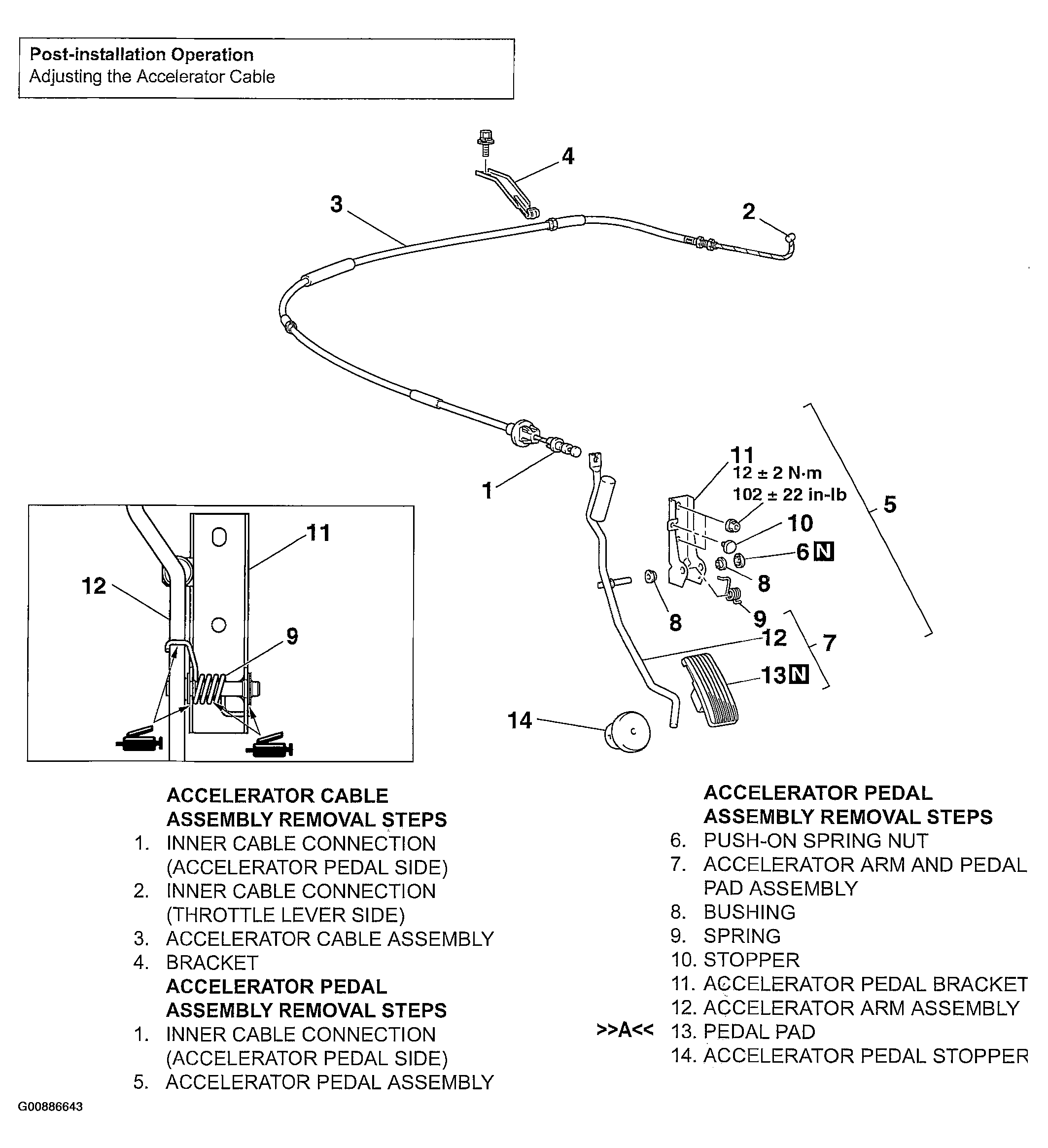

Fig 1: Removing Accelerator Cable And Pedal Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
