Disassembly And Assembly: Notes

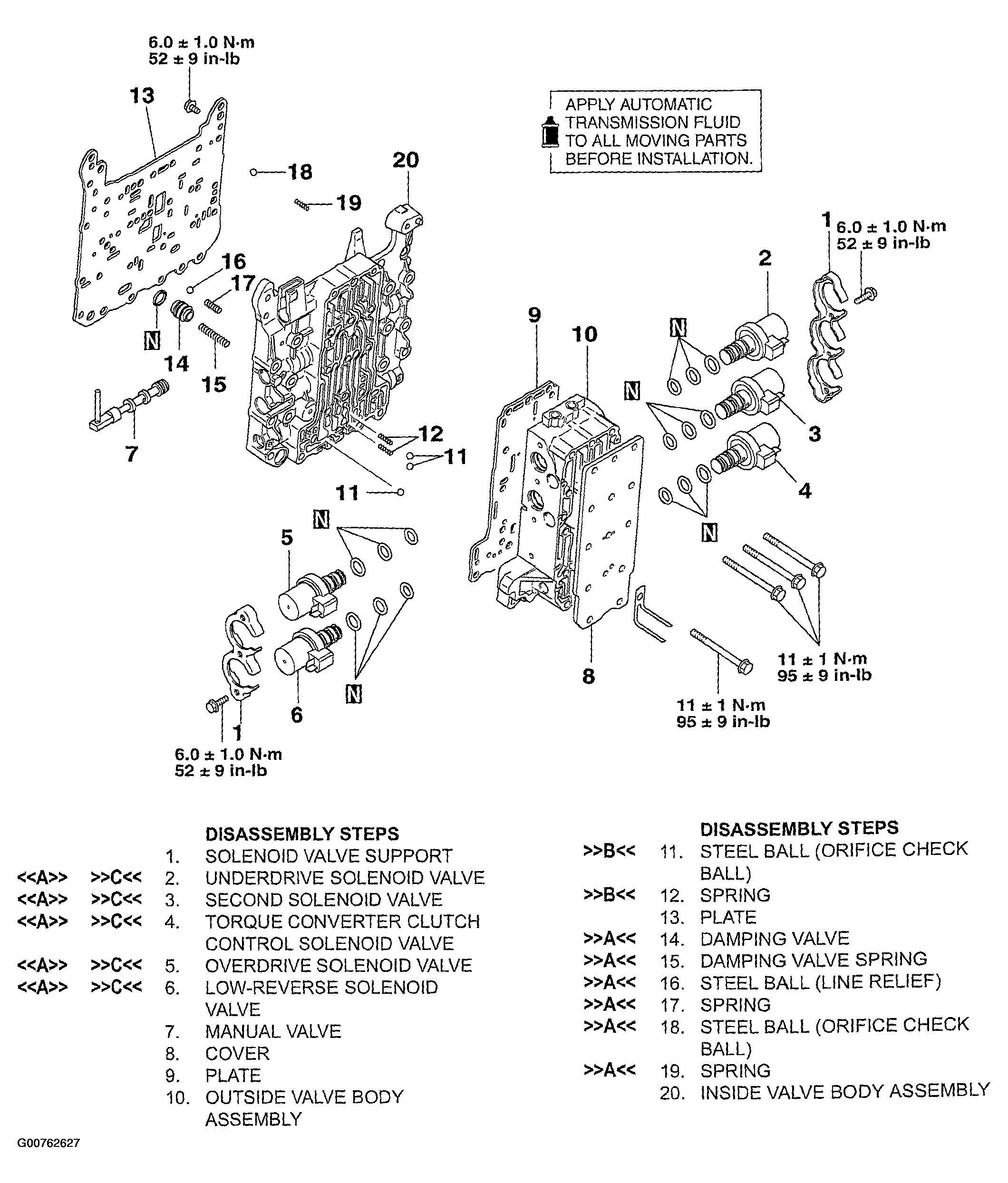

Fig 1: Disassembling Valve Body (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

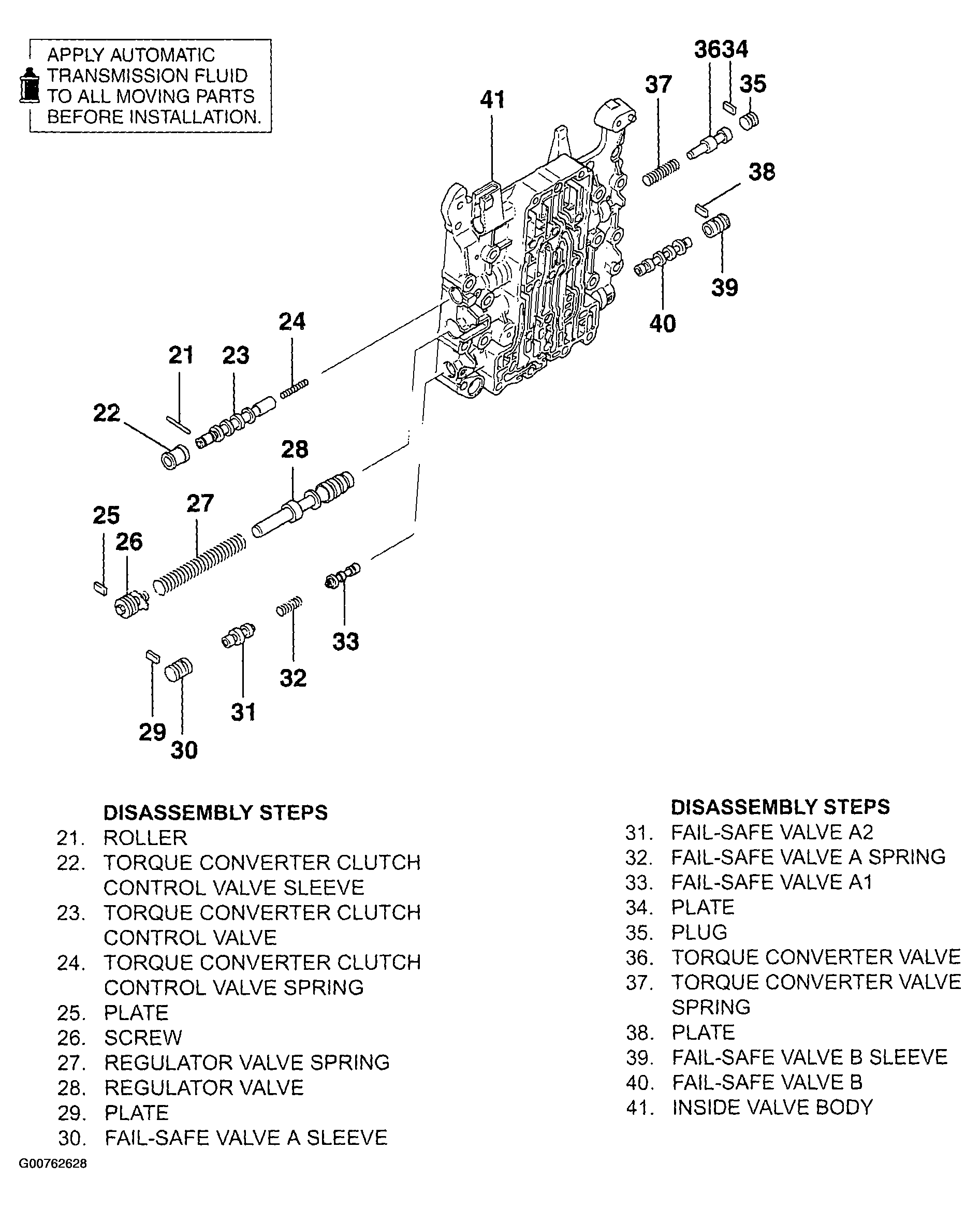

Fig 2: Disassembling Valve Body (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

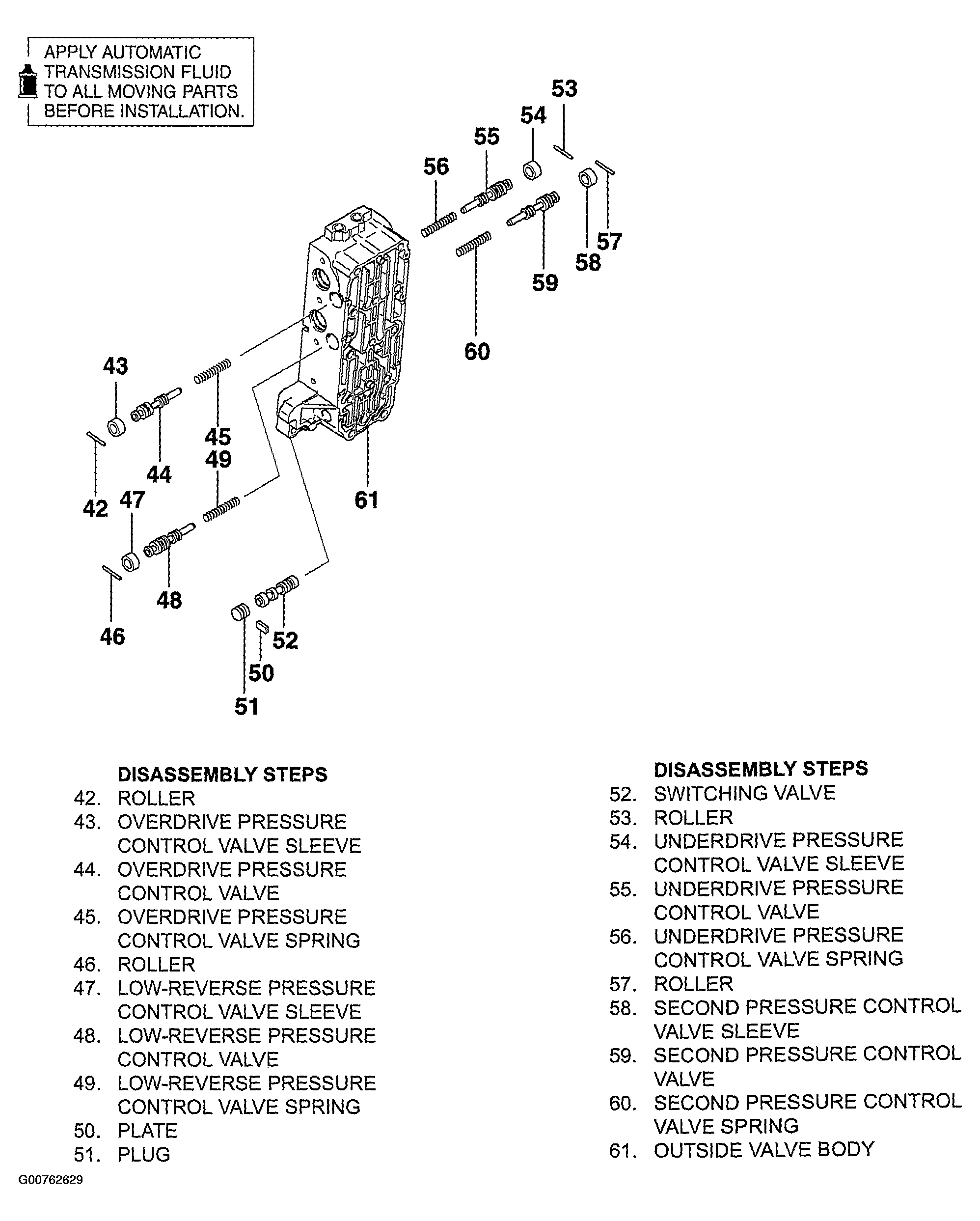

Fig 3: Disassembling Valve Body (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
