Auto-Cruise Control
›
Removal And Installation
Removal And Installation
WARNING:
Before removal of the air bag module, refer to
AIR BAG SAFETY PRECAUTIONS
and
DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING
.

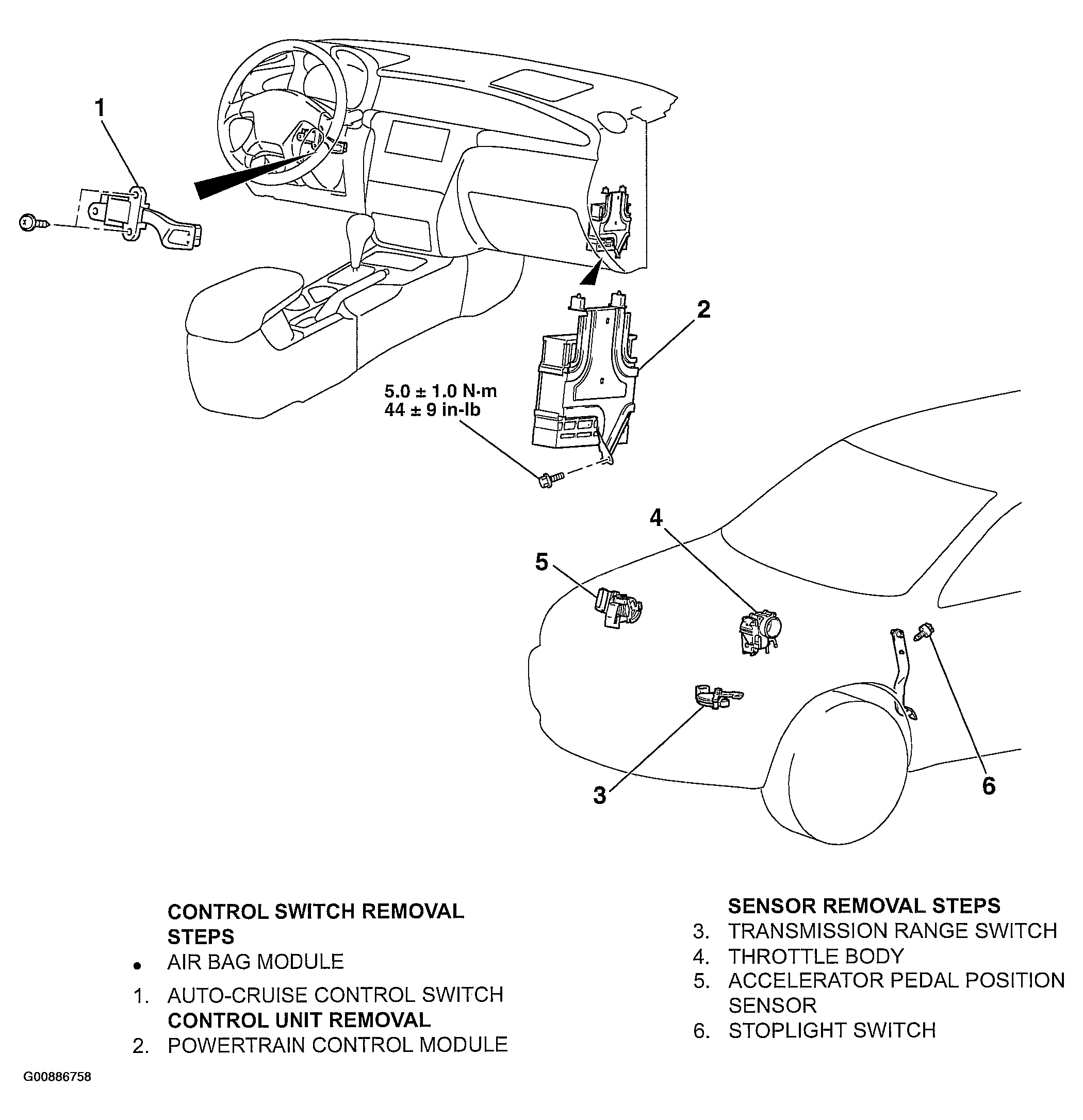

Fig 1: Identifying Auto-Cruise Control Components Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
