DTC 26: Stoplight Switch System: Notes

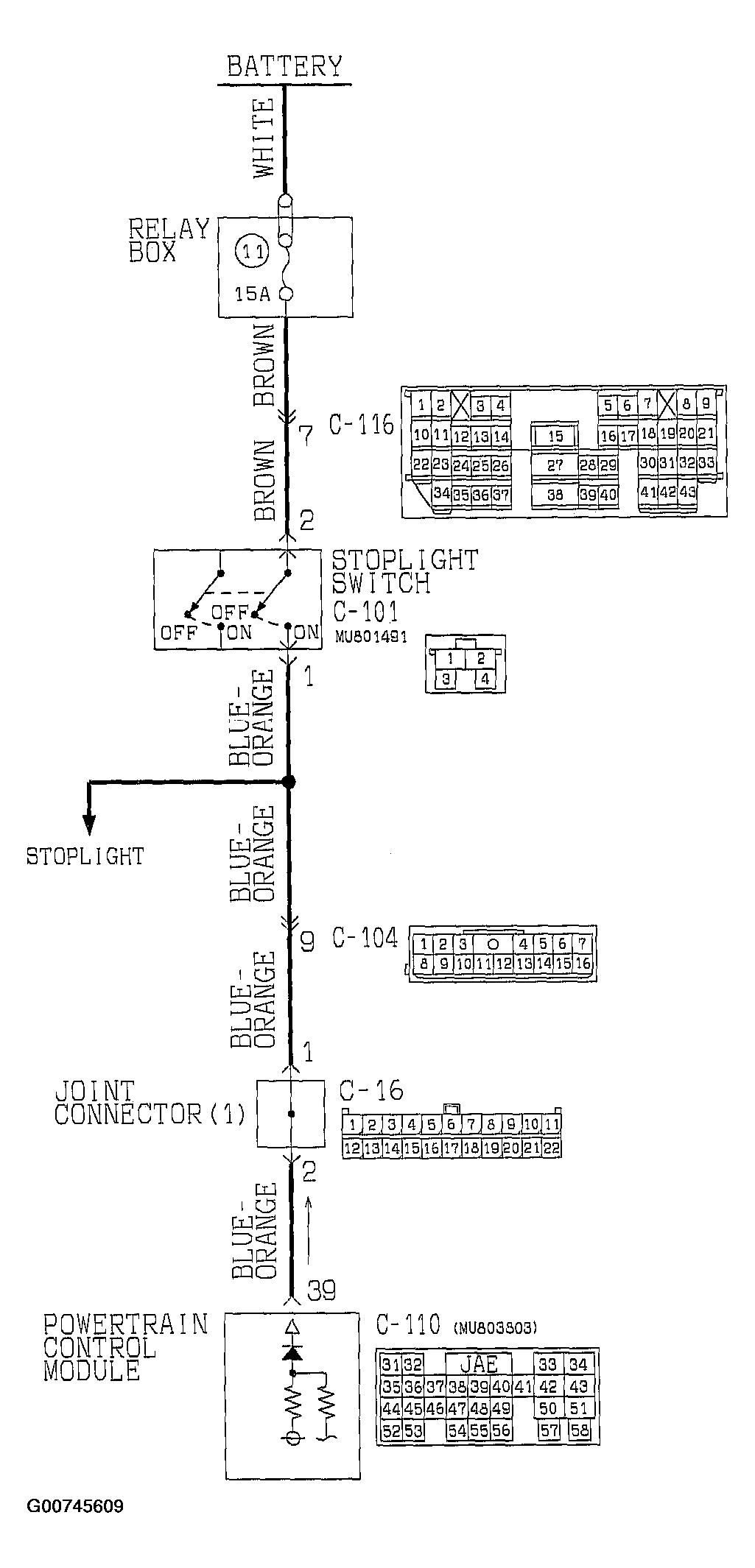

Fig 1: Identifying Stoplight Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

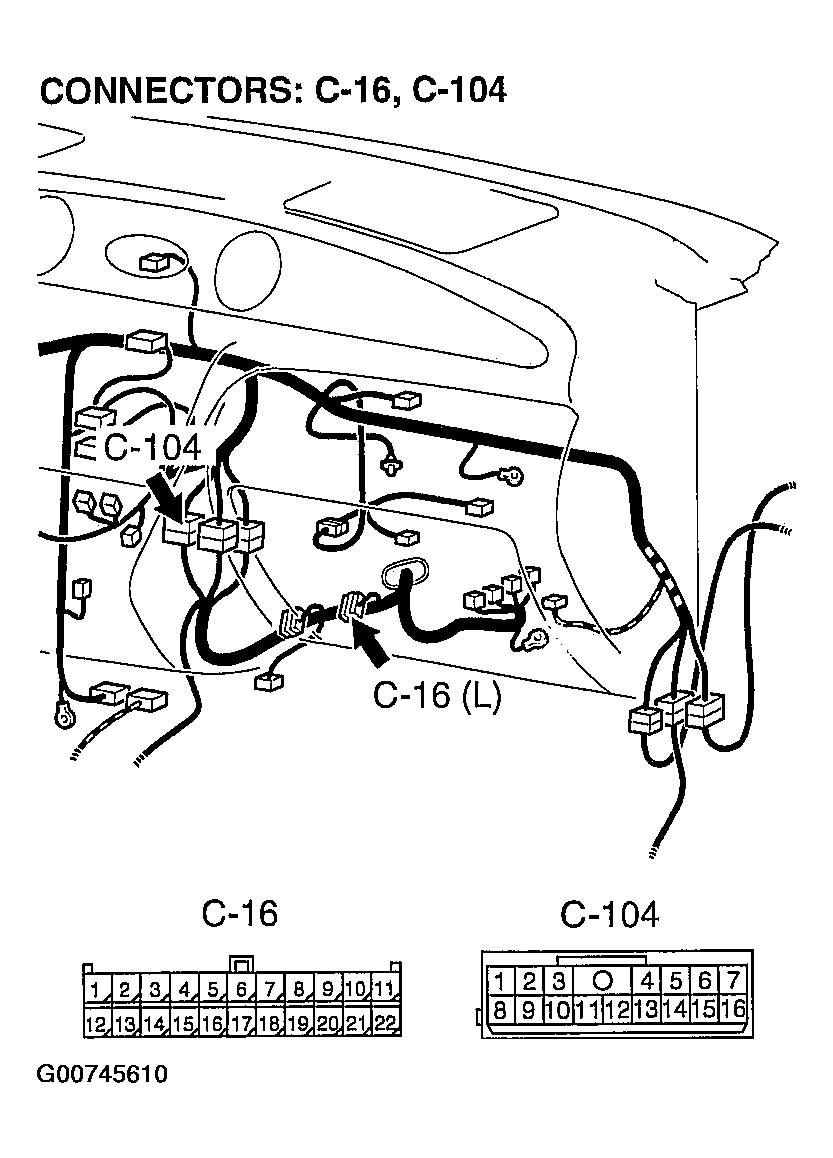

Fig 2: Identifying Connectors: C-16 And C-104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

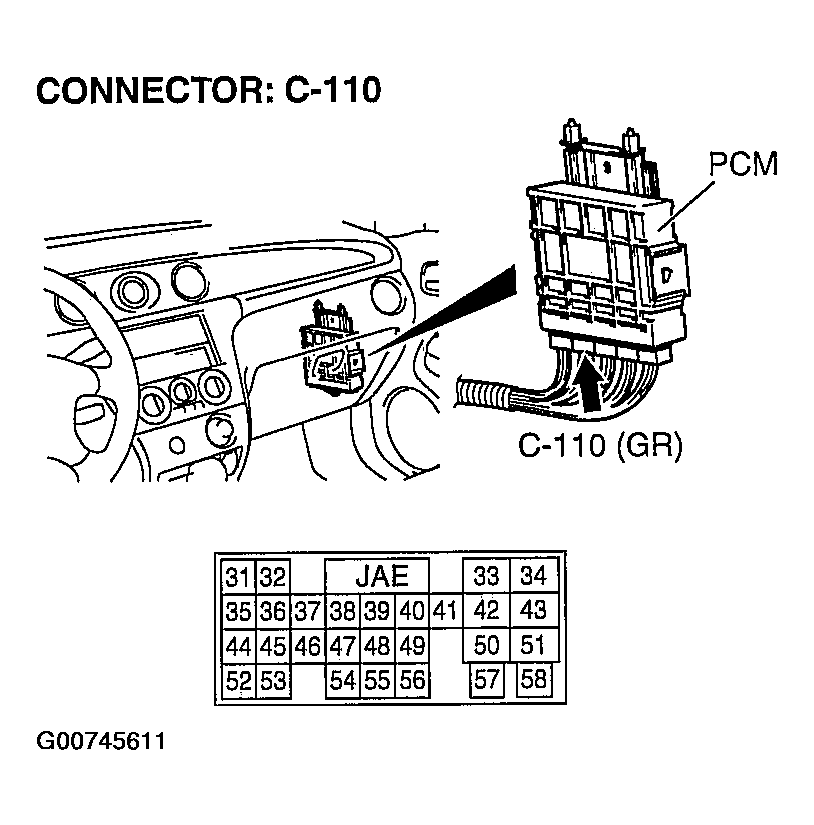

Fig 3: Identifying Connector C-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

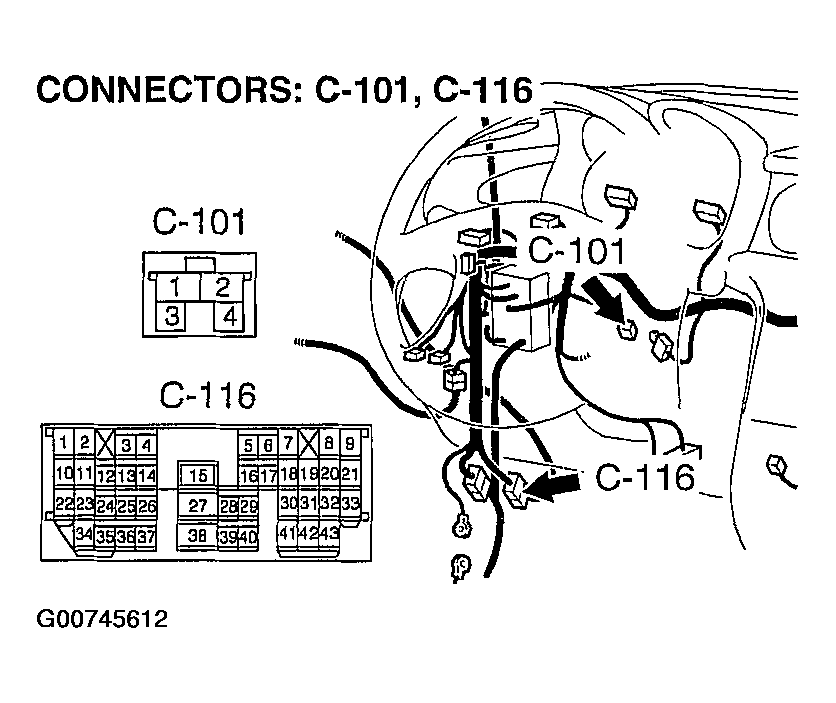

Fig 4: Identifying Connectors C-101 And C-116

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
