Special Tools

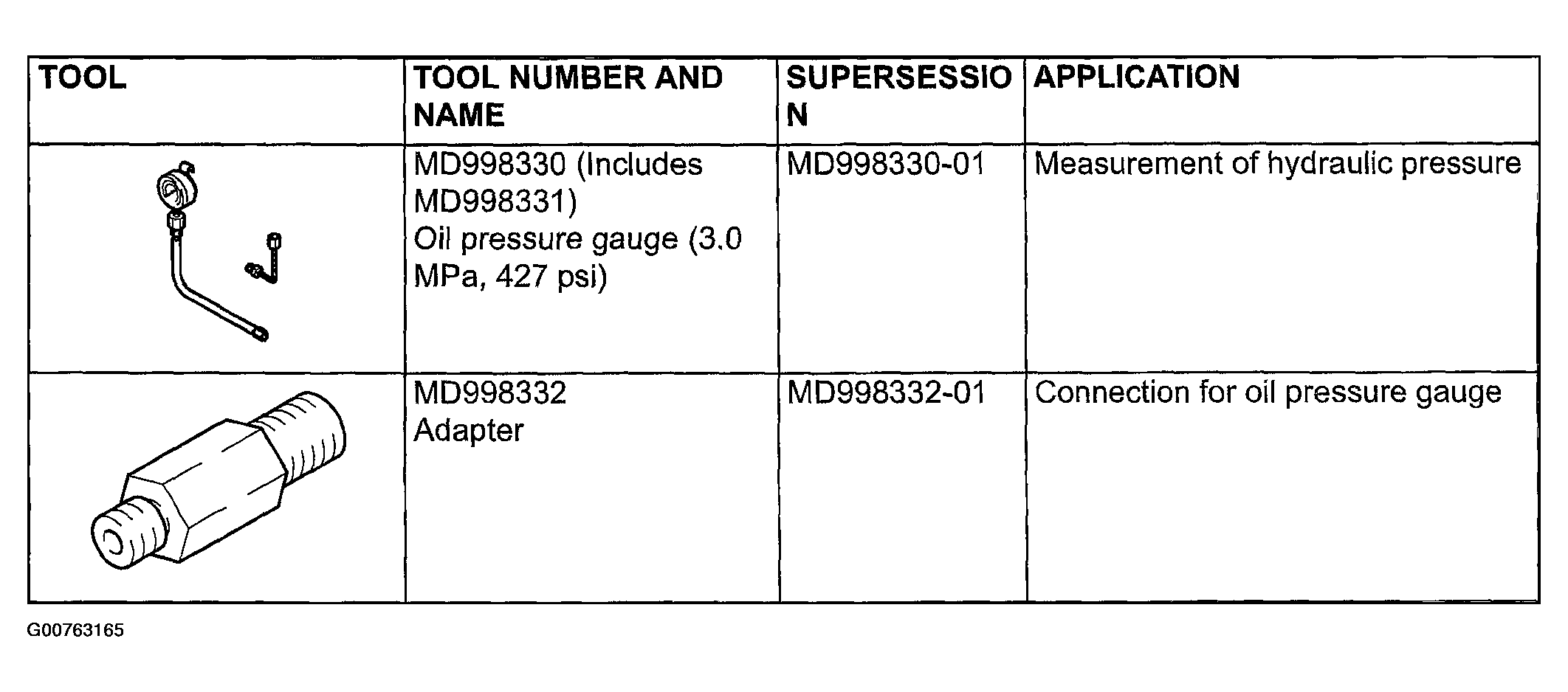

Fig 1: Identifying Special Tools (1 Of 3)
G00763165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

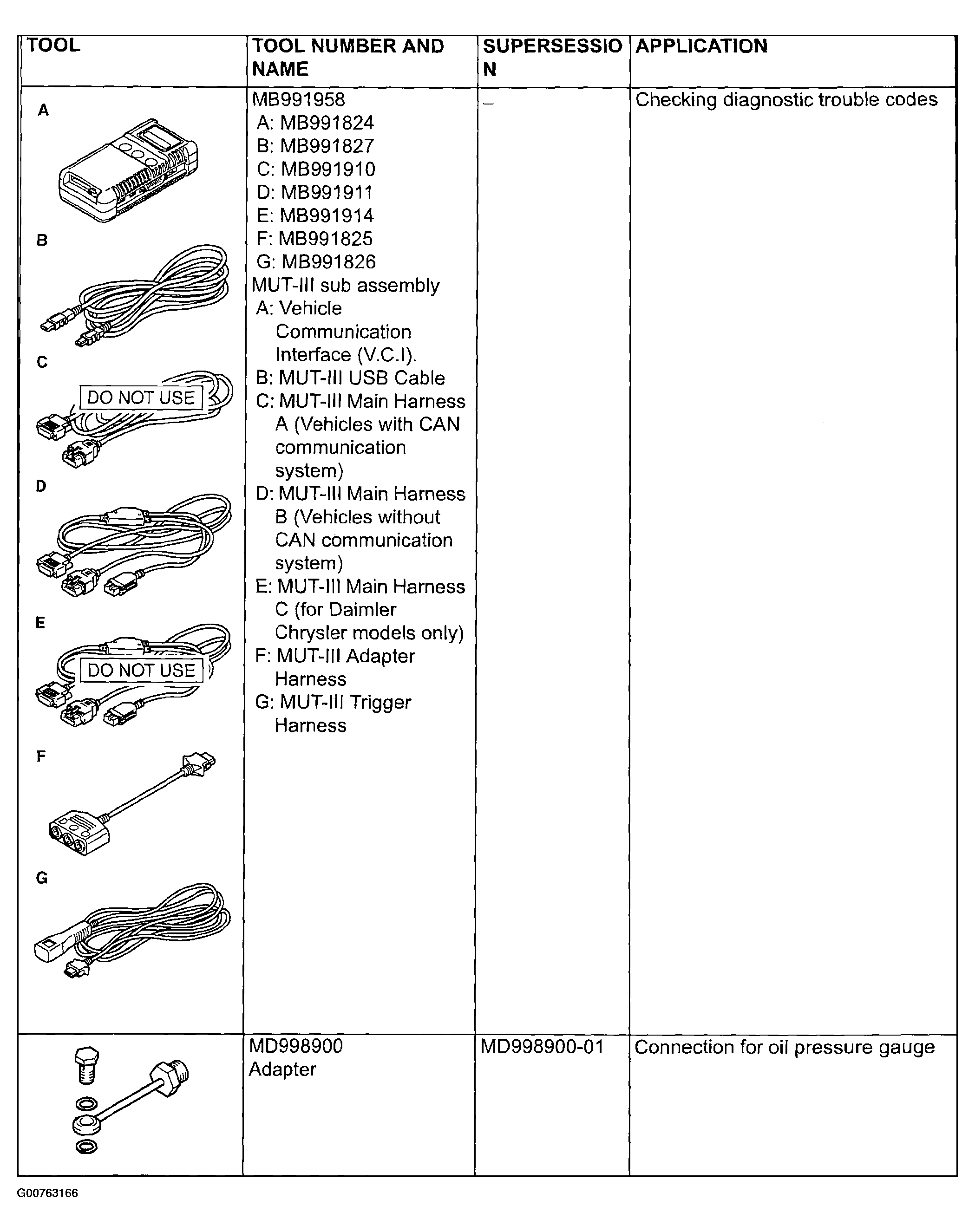

Fig 2: Identifying Special Tools (2 Of 3)
G00763166Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

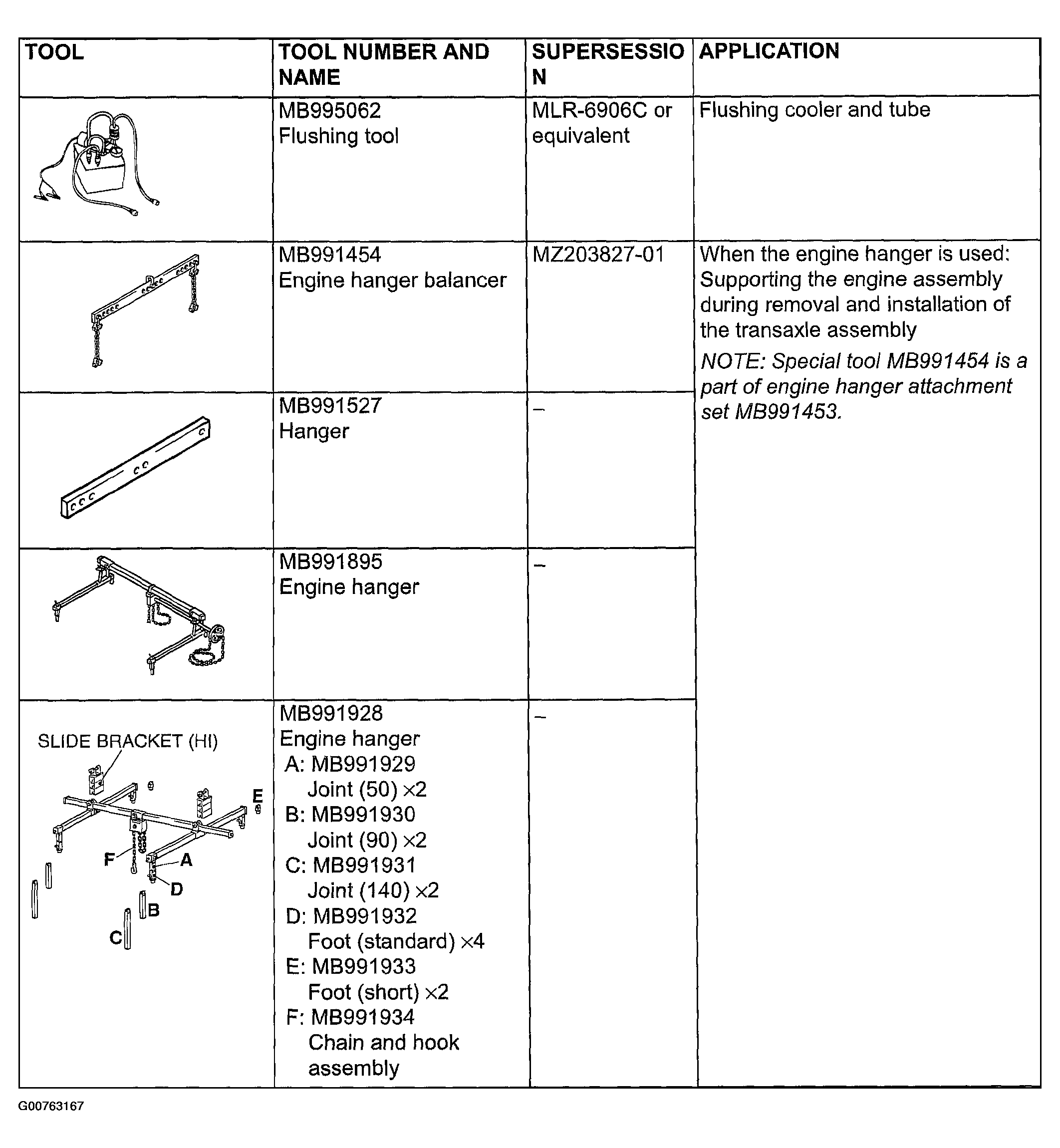

Fig 3: Identifying Special Tools (3 Of 3)
G00763167Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
