General Circuit Diagram For The Keyless Entry System
General Circuit Diagram For The Keyless Entry System

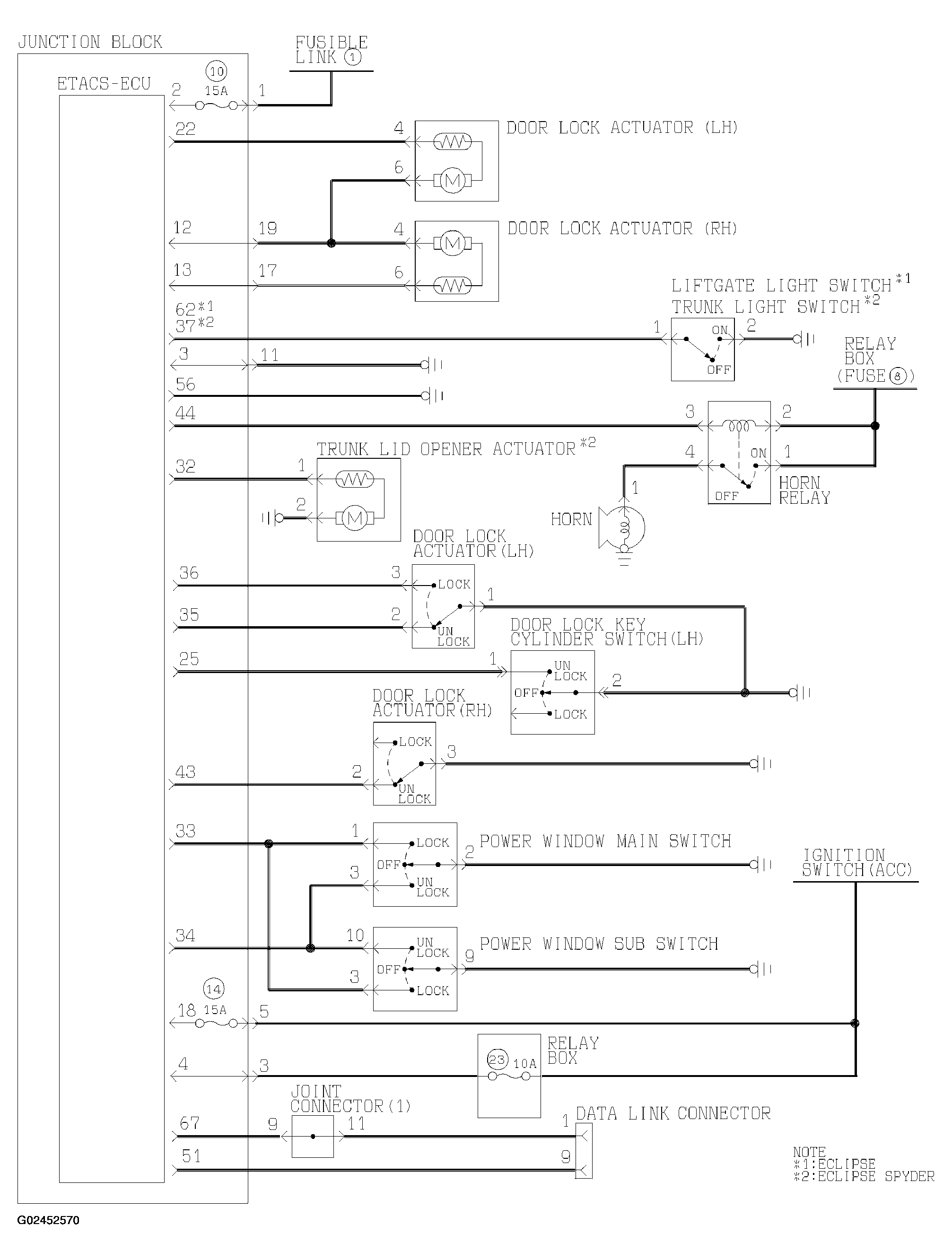

Fig 1: General Circuit Diagram For Keyless Entry System (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

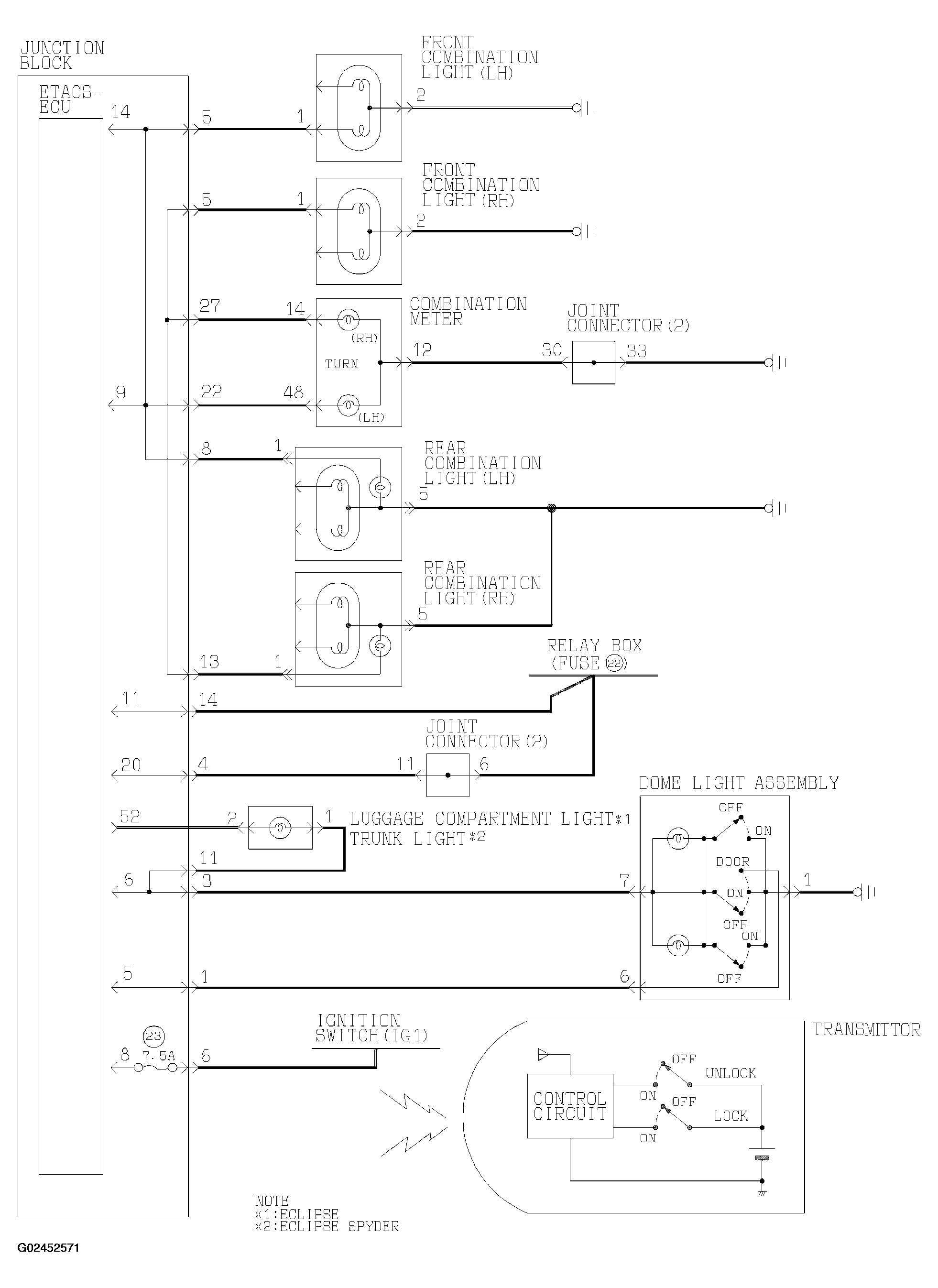

Fig 2: General Circuit Diagram For Keyless Entry System (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
