Removal And Installation: Notes

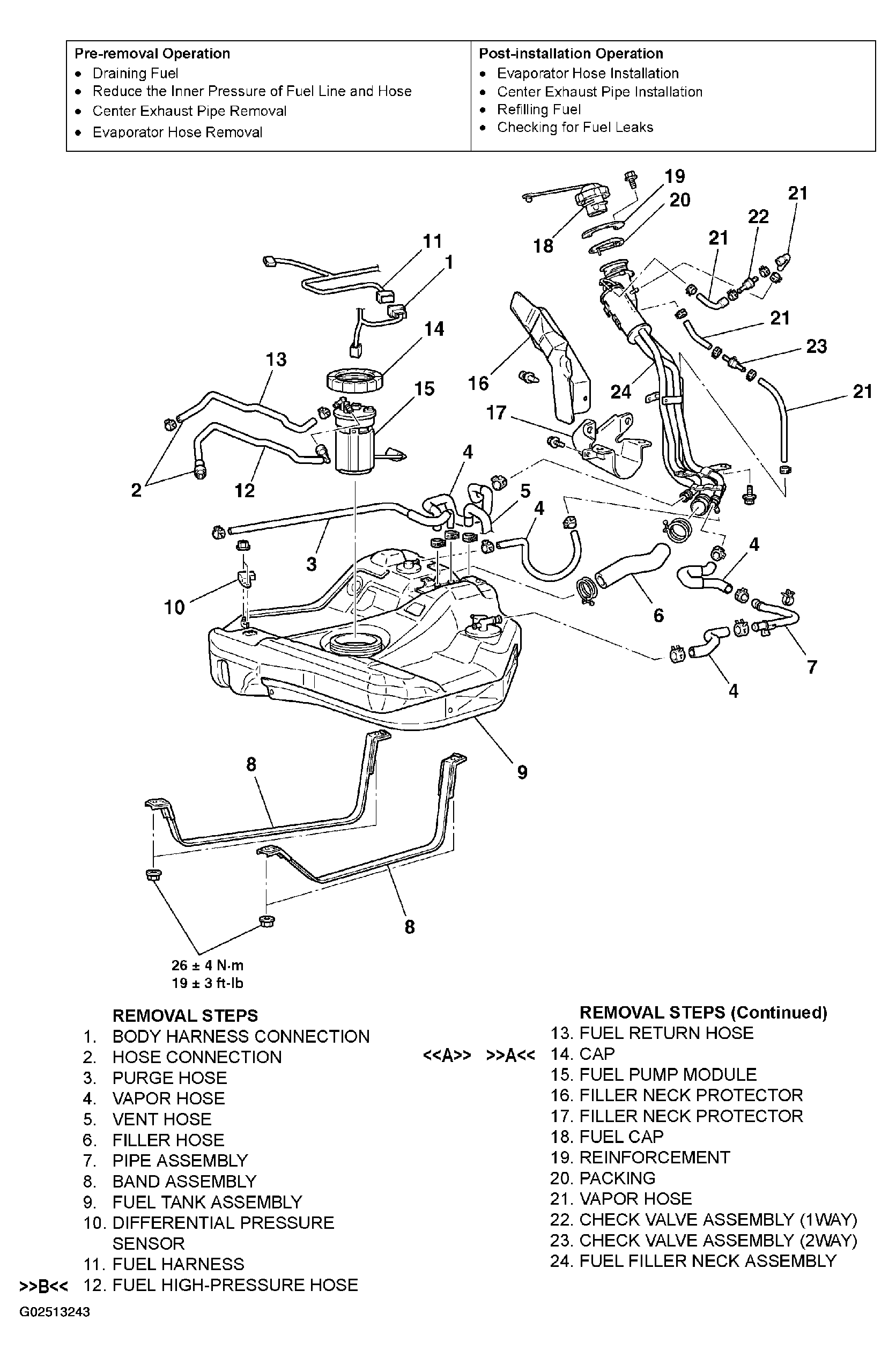

Fig 1: Removing/Installing Fuel Tank Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991480: Tank Cap Wrench
• MB991348: Test Harness Set
