Removal And Installation

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULES AND CLOCK SPRING .

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.

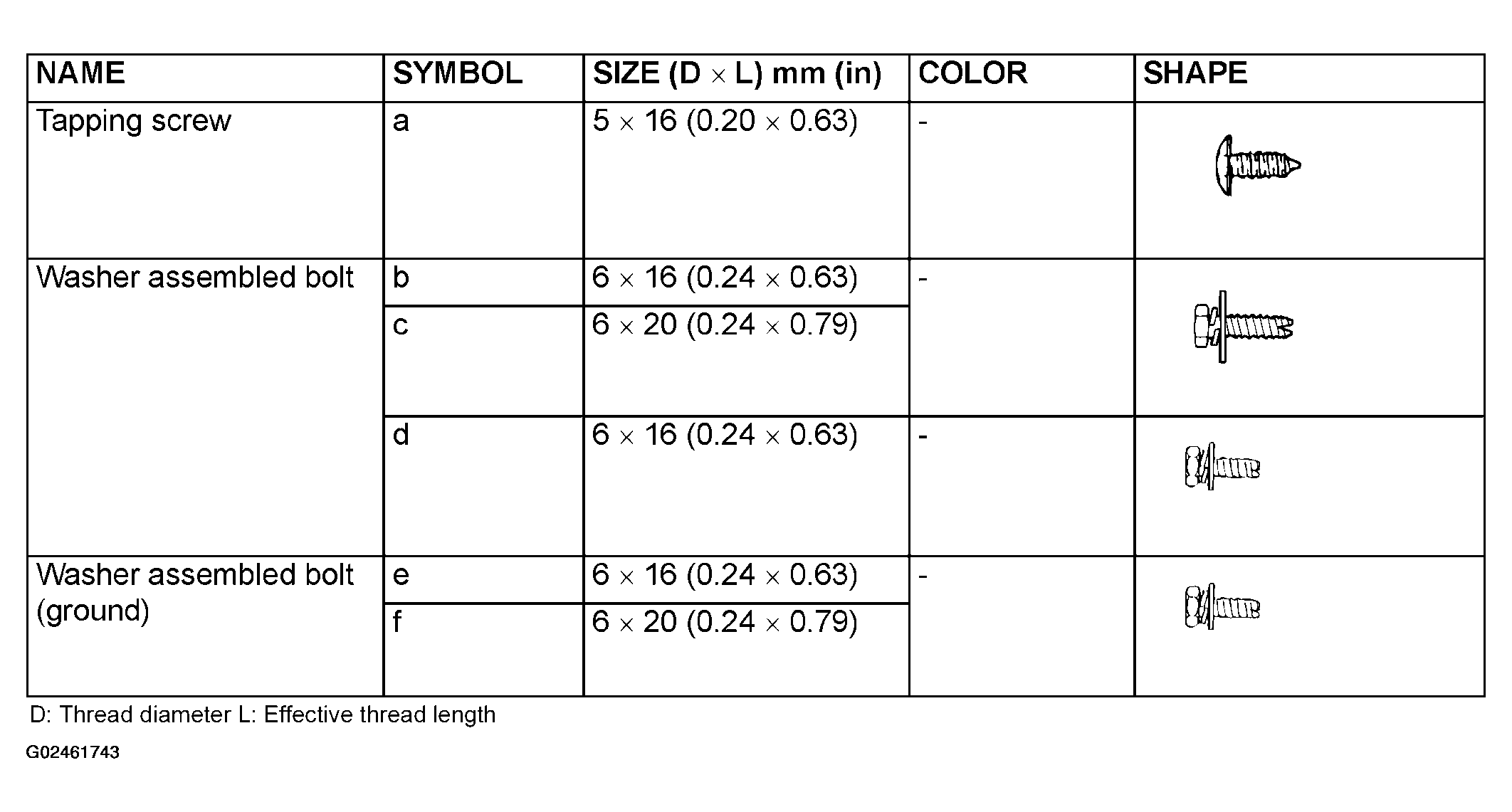

Fig 1: Identifying Bolts And Screws Shape And Size Specification Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Instrument Panel Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

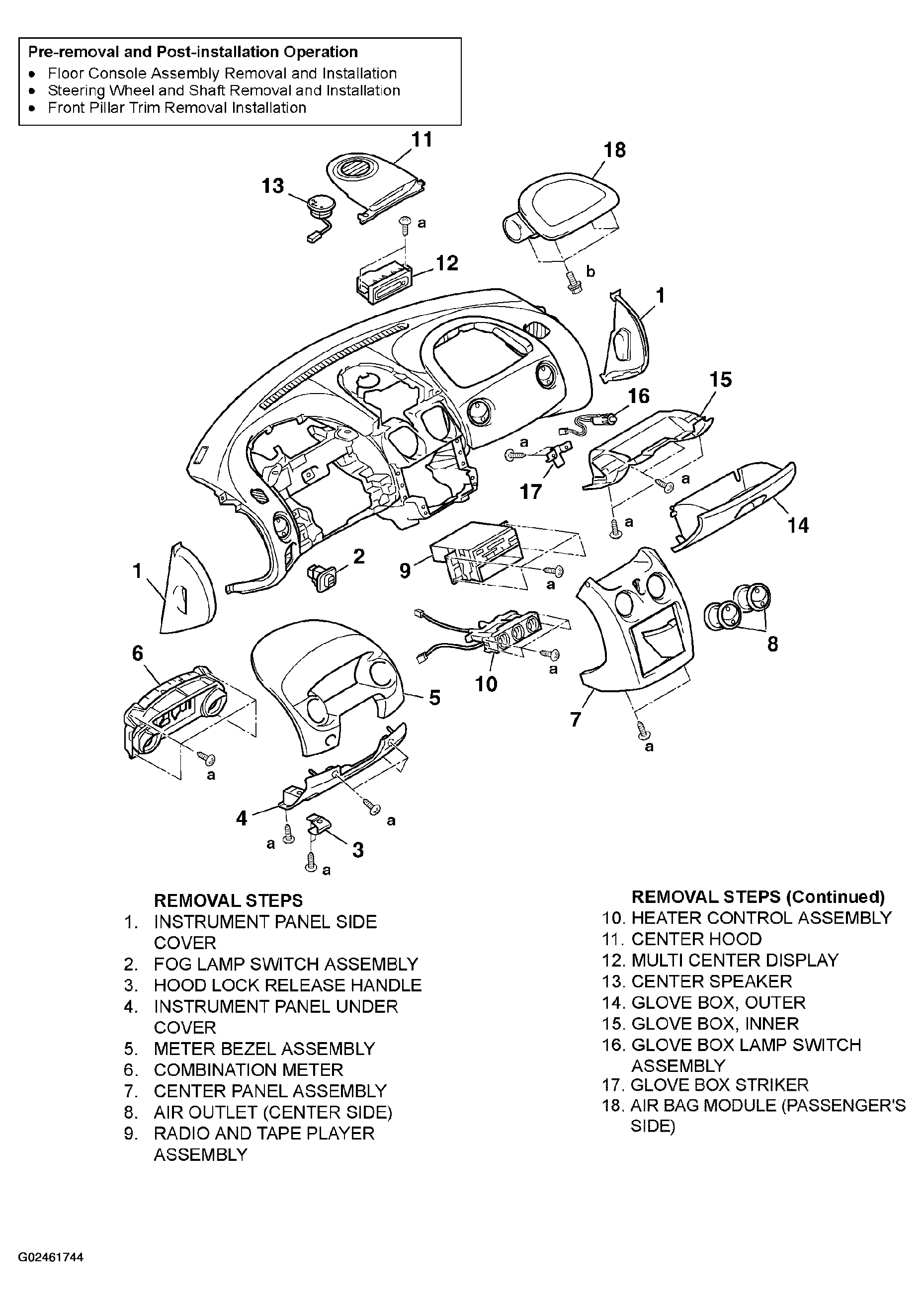

Fig 3: Exploded View Of Instrument Panel Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

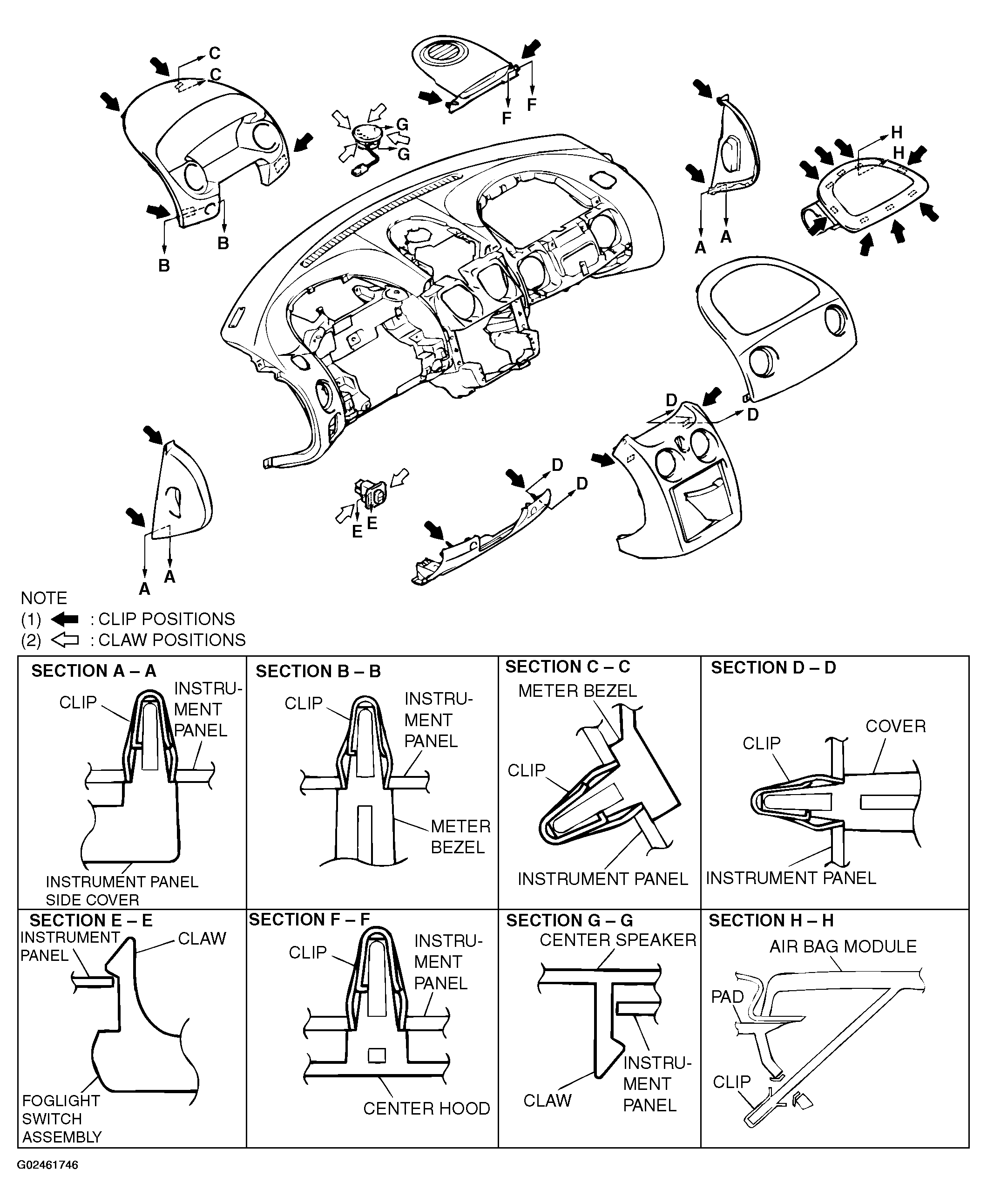

Fig 4: Exploded View Of Clip And Claw Positions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
