Removal And Installation: Notes

NOTE: The following illustration shows the side impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
Fig 1: Removing Side Impact Sensor (1 Of 2)
G02462048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

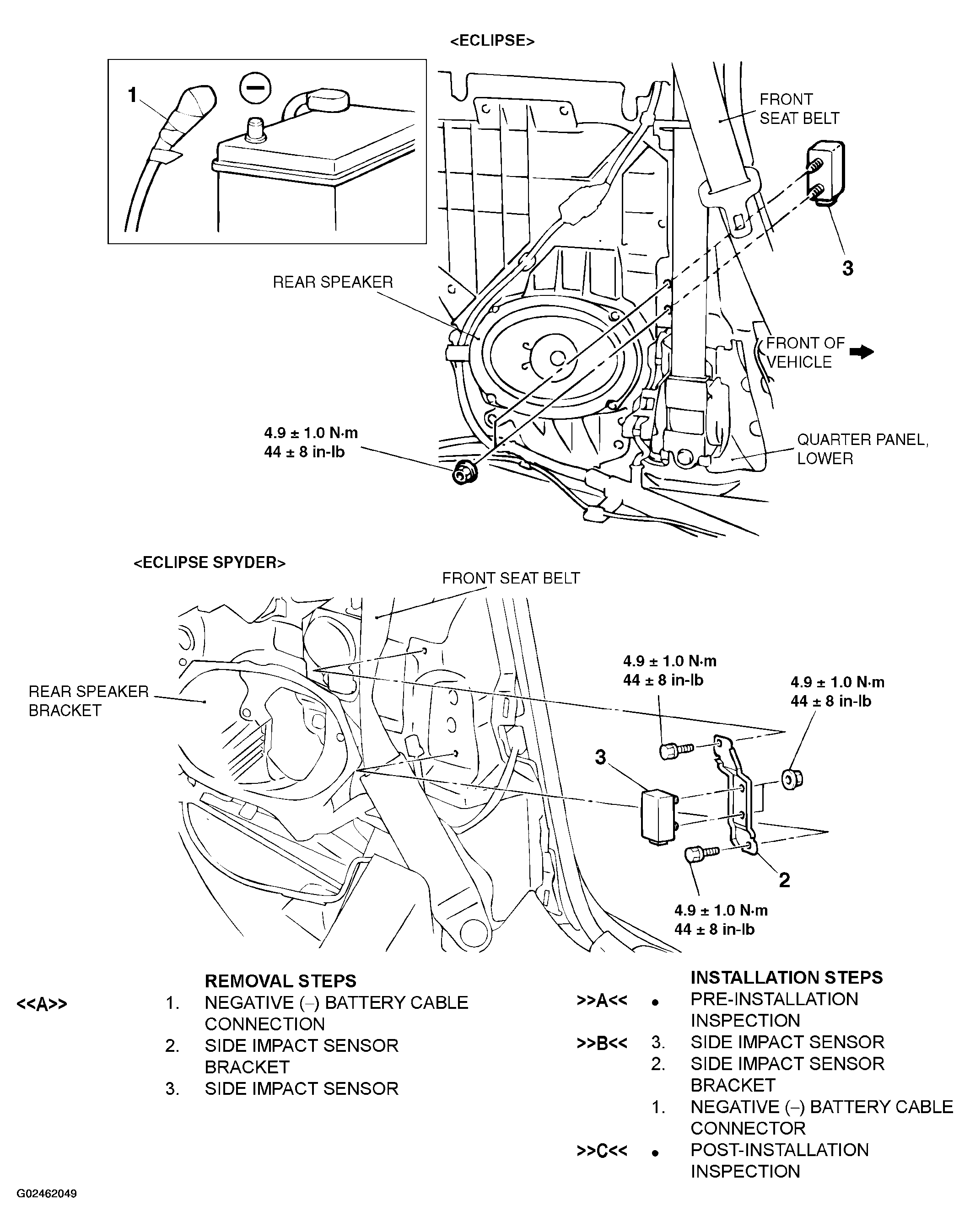

Fig 2: Removing Side Impact Sensor (2 Of 2)
G02462049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
