Removal And Installation: Notes

CAUTION: When removing and installing the key interlock cable and shift lock cable, be careful not to hit the SRS-ECU.

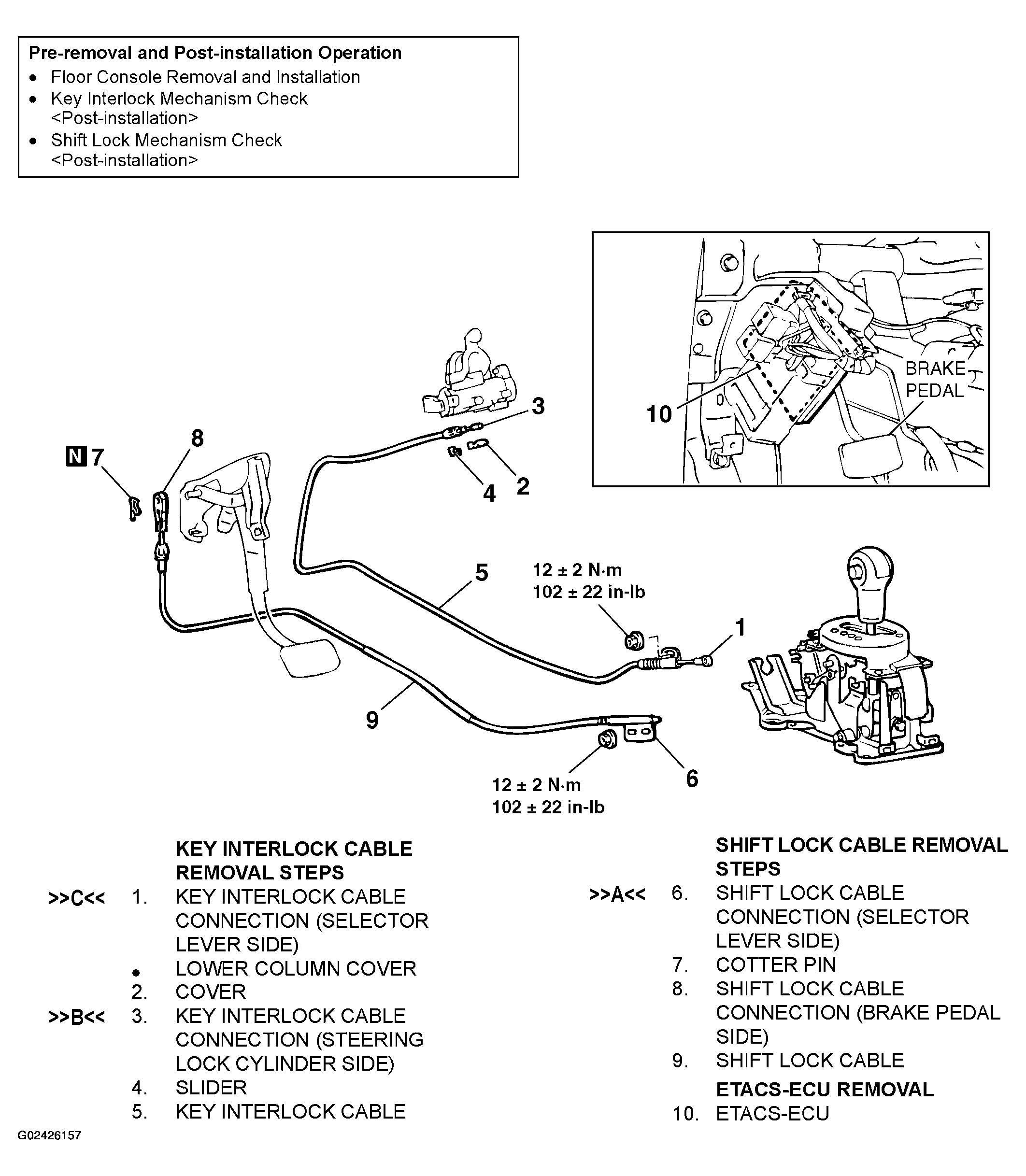

Fig 1: Removing/Installing A/T Key Interlock And Shift Lock Mechanisms

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
