General Description
›
Electronically-Controlled System
›
Shift Pattern Control
›
< 2.4L Engine >
< 2.4L Engine >

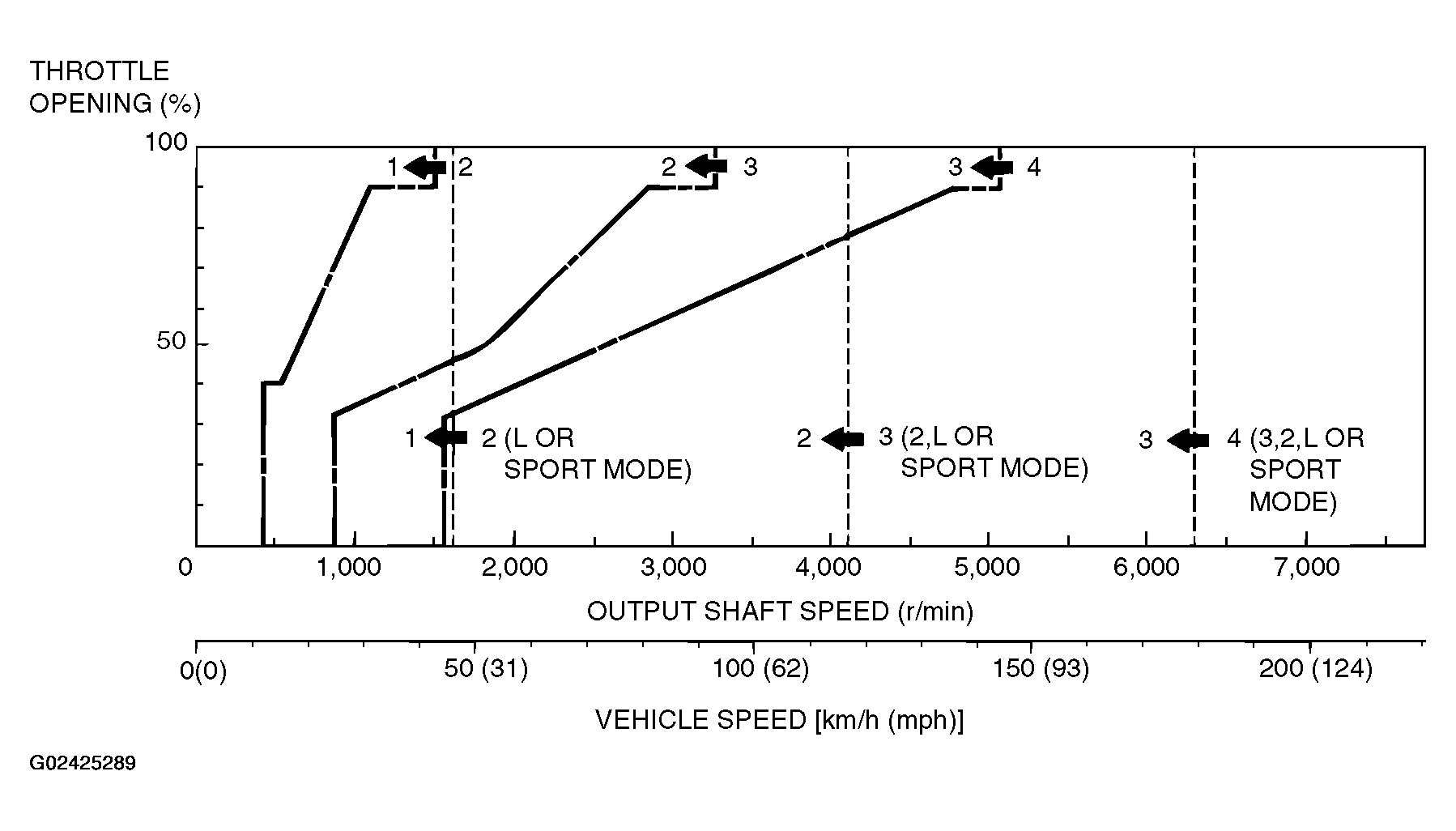

Fig 1: Identifying Downshift Pattern (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
