< 2.4L Engine > Upshift Pattern

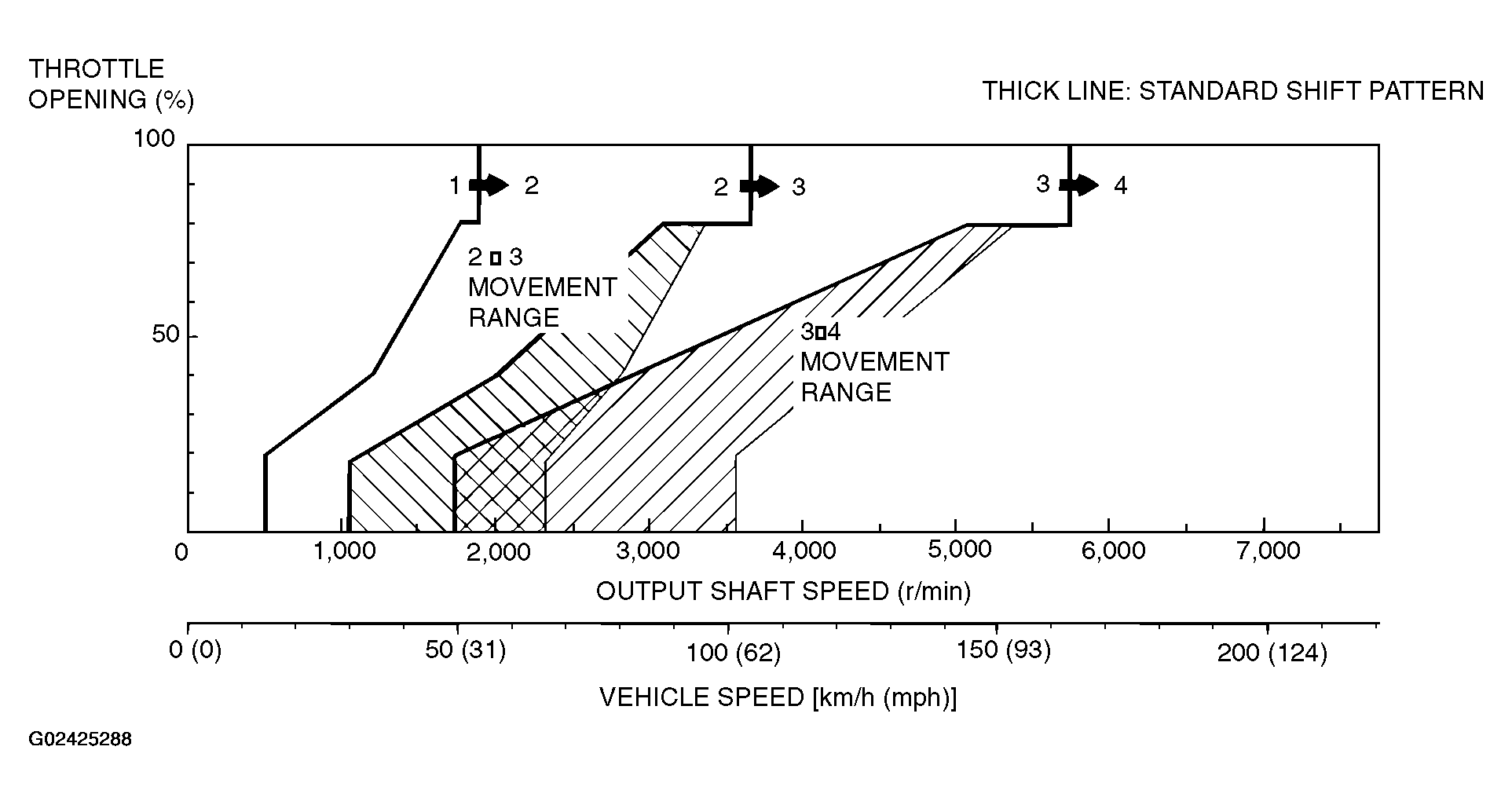

Fig 1: Identifying Shift Pattern Control (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
