< 3.0L Engine (Vehicles Without Variable Induction System) > Downshift Pattern

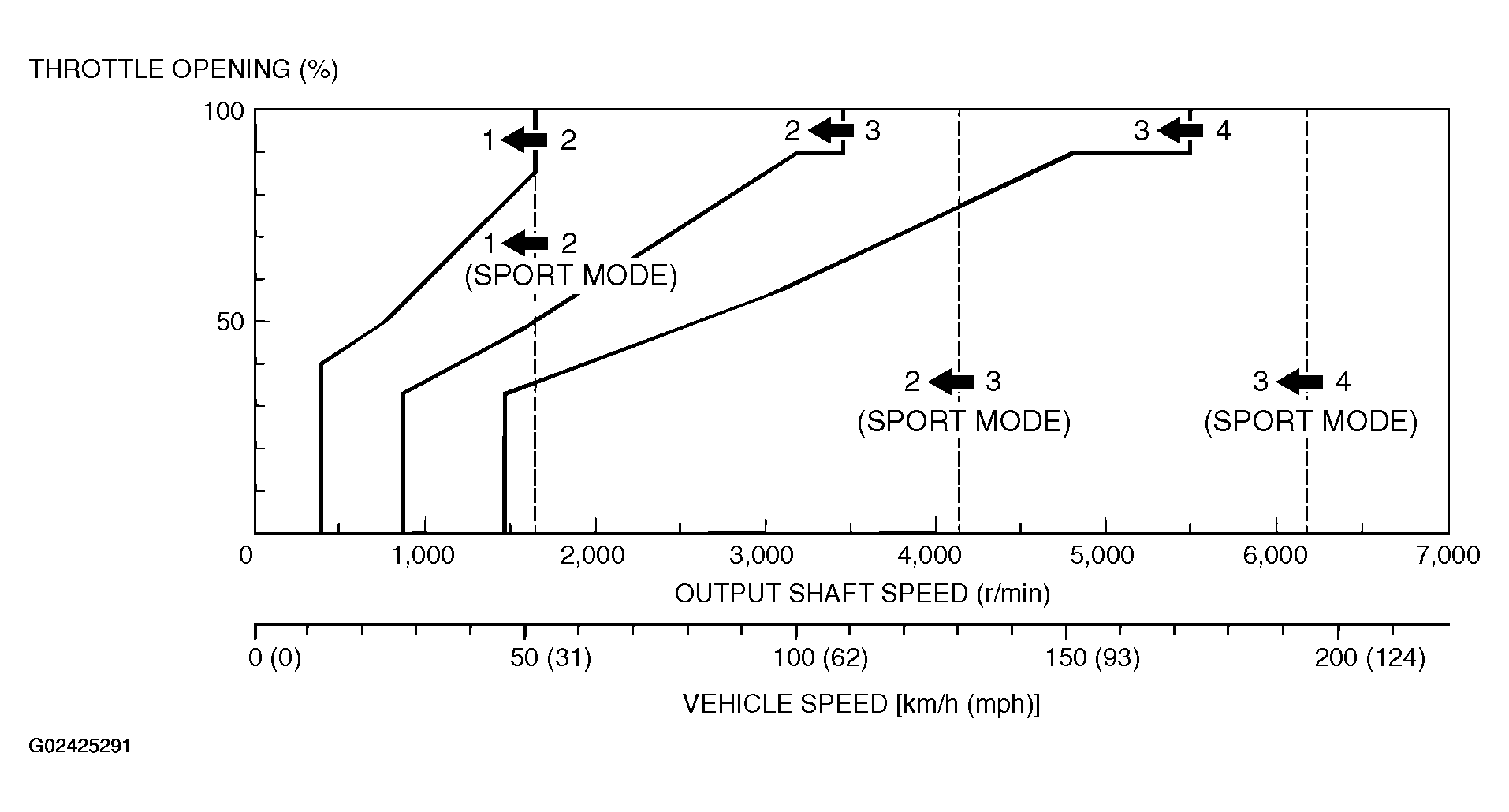

Fig 1: Identifying Vehicles Without Variable Induction System, Downshift Pattern (3.0L Engine)
G02425291Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
