< 3.0L Engine (Vehicles Without Variable Induction System) > Upshift Pattern

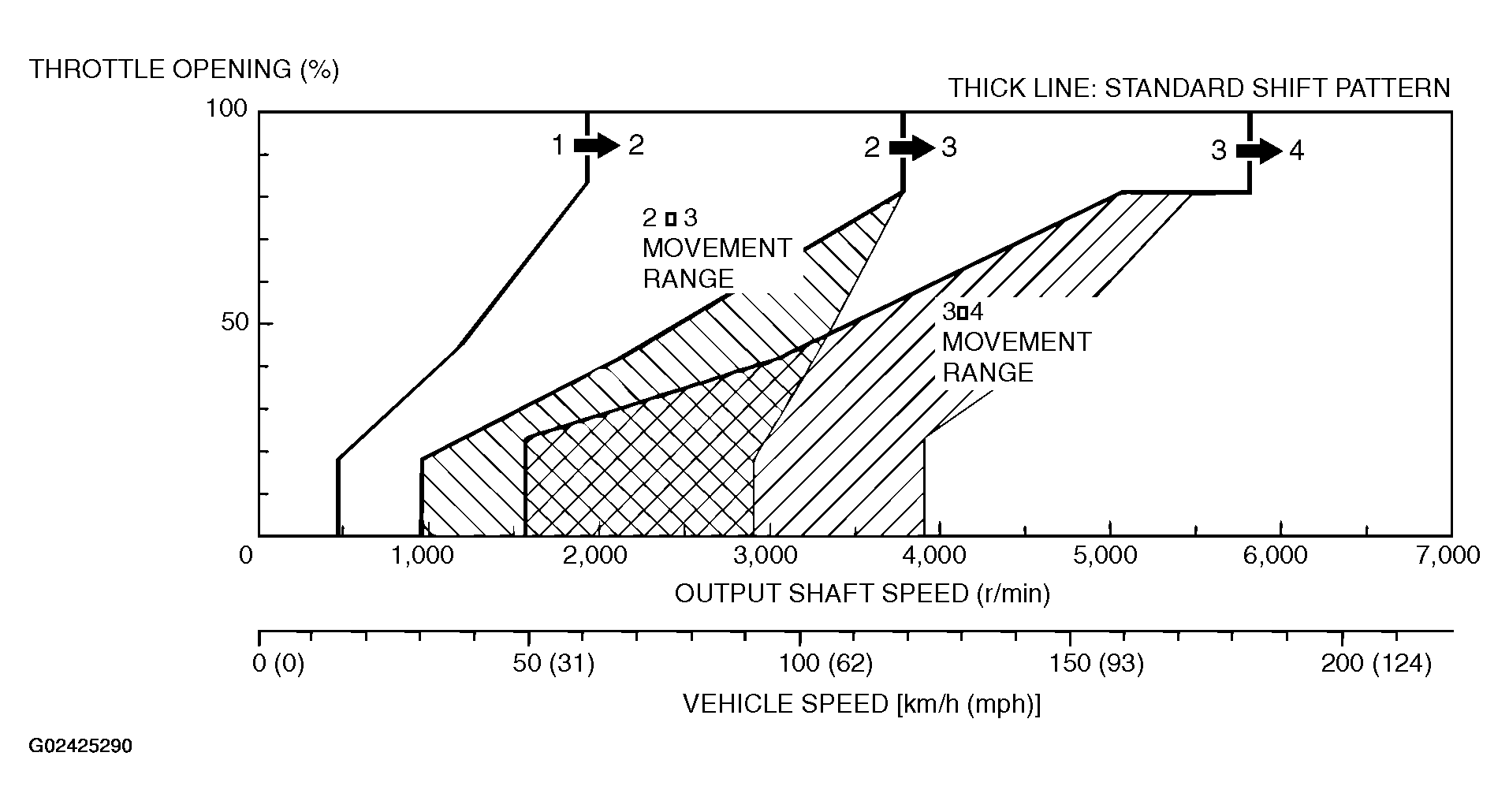

Fig 1: Identifying Vehicles Without Variable Induction System, Upshift Pattern (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
