Function Element Table

< Vehicles without sport mode >

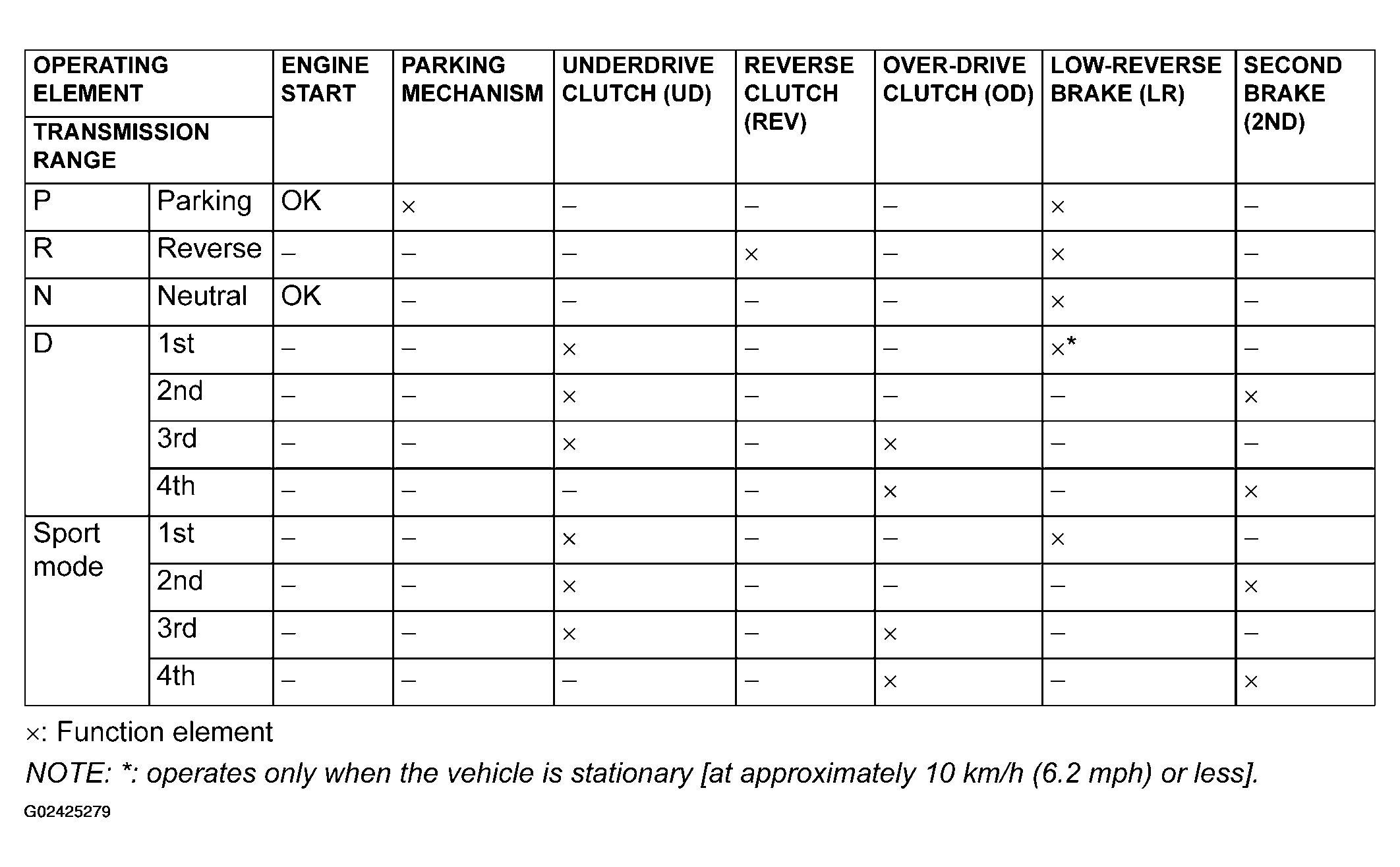

Fig 1: Function Element Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

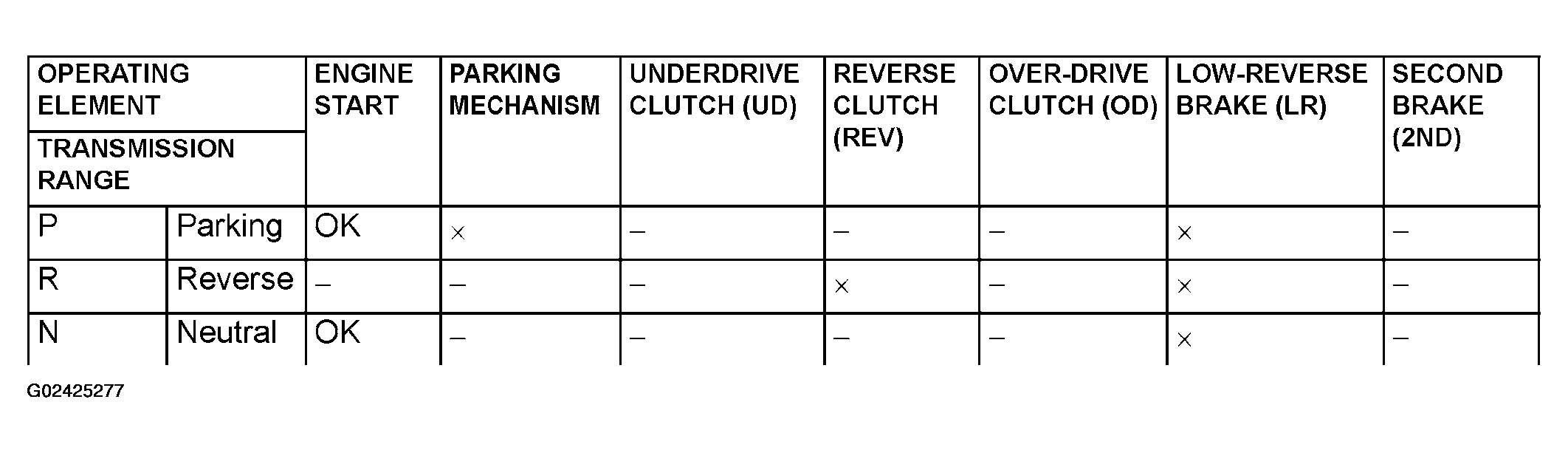

Fig 2: Function Element Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< Vehicles with sport mode >

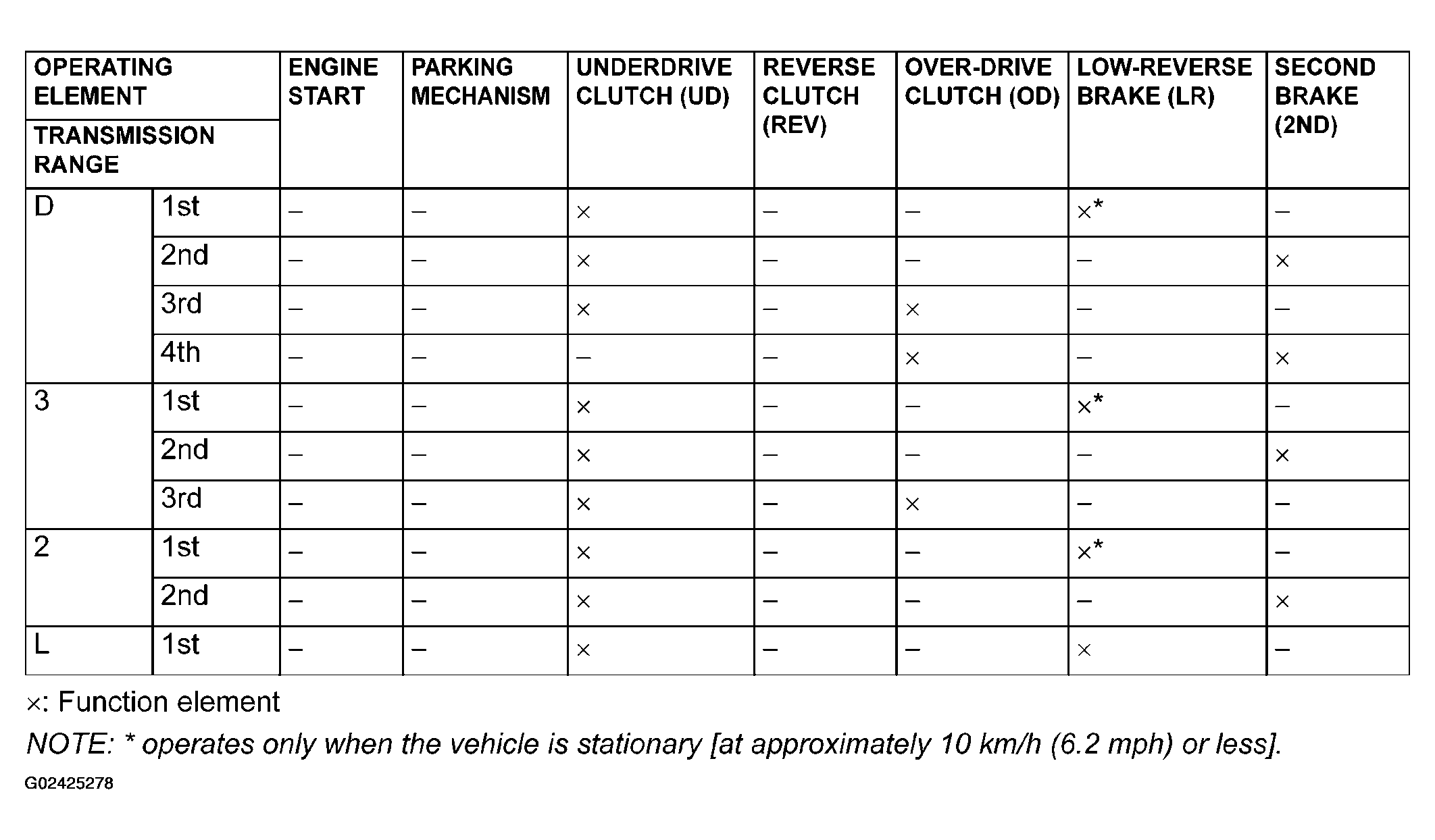

Fig 3: Function Element Table, Vehicle With Sport Mode

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
